Installation
Portable Mounting Using Clamps
— If necessary, clamp the slide compound miter
saw to a workbench or table top.
— Place two (2) or more “C” clamps on the clamp-
ing areas and secure (Figure 16).
Portable Mounting Using 2x4’s
— In order to avoid any twisting of the saw, the saw
can be placed over (2) 2x4’s mounted on a work-
bench.
— The cast-in carry handle openings have ribs on
the inside that are the same size as a 2x4.
Center the miter saw openings over the 2x4’s
which have been clamped or nailed on a work
bench for stability (Figure 17).
NOTE: The board does not slide completely through
the opening. The saw must be placed over two (2)
boards, one on each side.

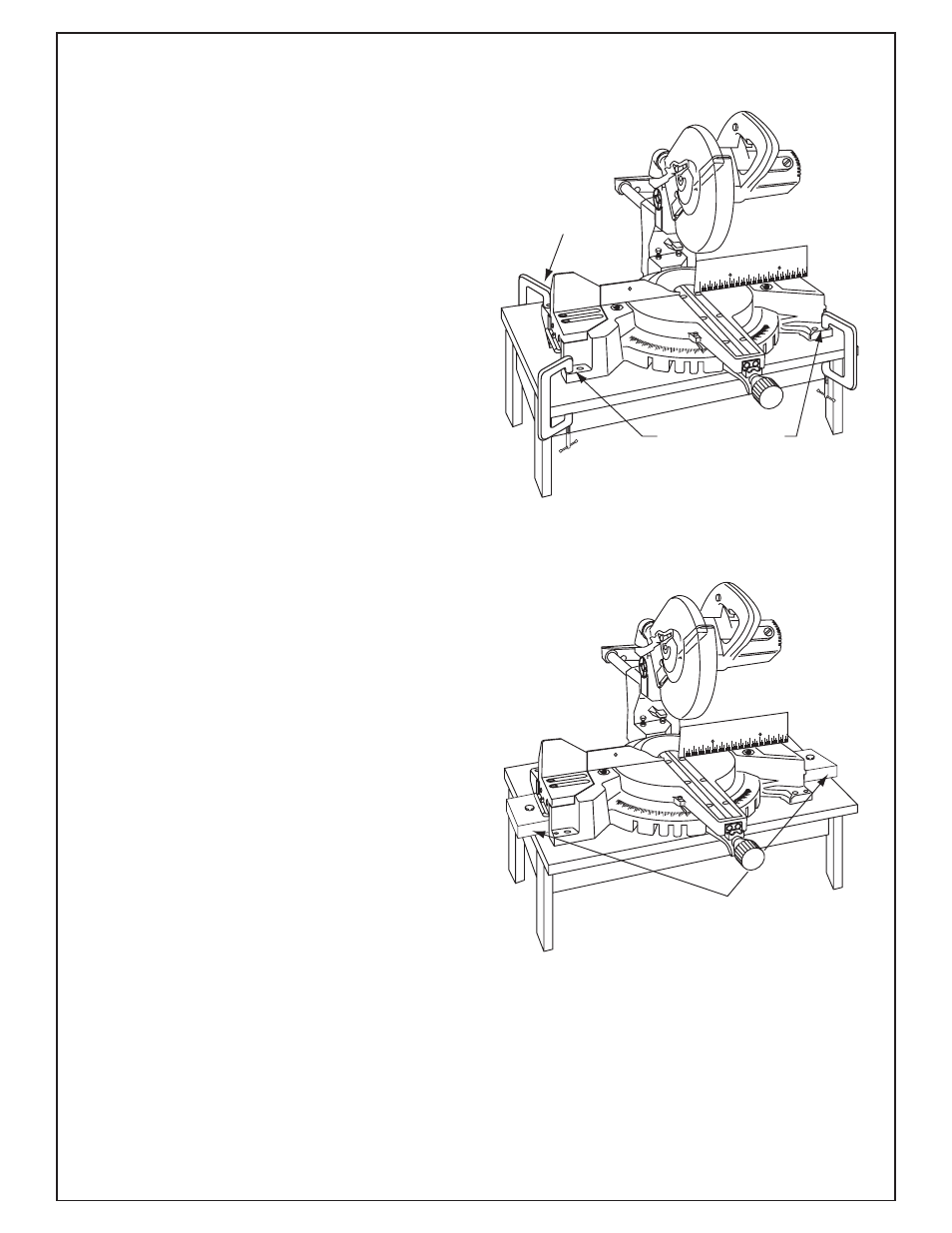

Figure 16. Portable Mounting Using Clamps
Figure 17. Portable Mounting Using 2x4’s
0 5 10 15 20 25 30 35 40 45 50
50
45
40 35 30
BOSCH
2x4 Nailed to Workbench
0 5 10 15 20 25 30 35 40 45 50
50
45
40 35 30
BOSCH
Clamping Areas
Clamping Area
