Connecting your equipment

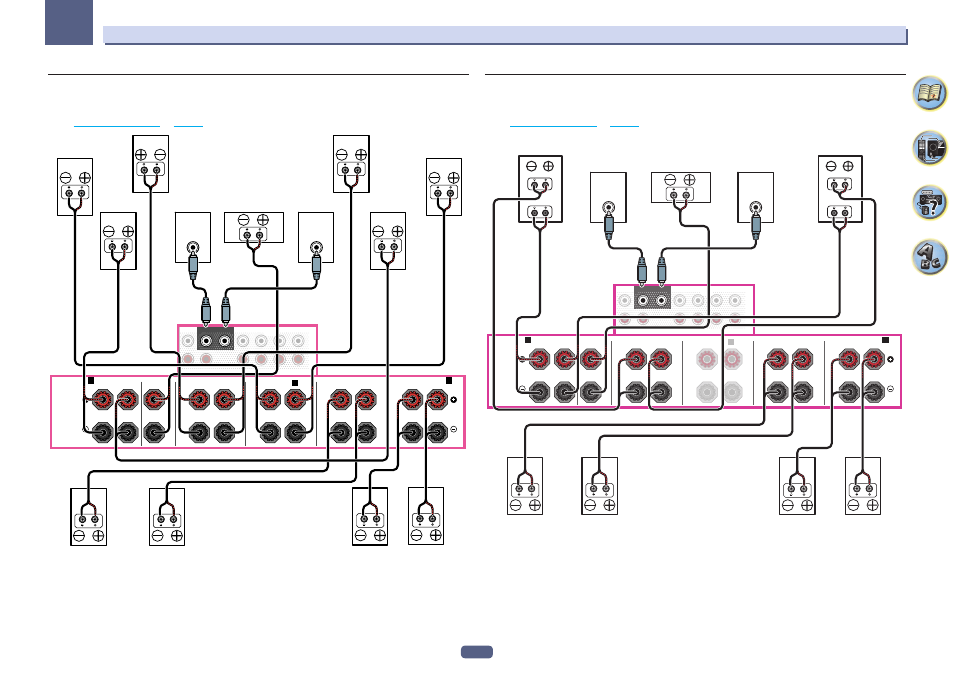

[E] 7.2 channel surround system (Front height/Front wide) & ZONE 2
connection (Multi Zone)
! Select ‘7.1ch FH/FW + ZONE 2’ from the Speaker System menu.
See
Speaker system setting on page 97 to do this.
(Single)
SPEAKERS
FRONT CENTER A A B SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
R L R L R L R L R L
PRE OUT
SUBWOOFER 1 2 SURROUND SURR BACK F.HEIGHT
(Single)
FRONT
CENTER
L
R
F.WIDE
LINE LEVEL
INPUT
LINE LEVEL
INPUT
Front height left Front height right Front wide left Front wide right
Front left Front right Center Subwoofer 2 Subwoofer 1
Surround left ZONE 2 - right ZONE 2 - left Surround right
[F] 5.2 channel surround system & Front Bi-amping connection (High quality
surround) & ZONE 2 connection (Multi Zone)
! Select ‘5.1ch Bi-Amp + ZONE 2’ from the Speaker System menu.
See
Speaker system setting on page 97 to do this.
(Single)
SPEAKERS
FRONT CENTER A A B SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
R L R L R L R L R L
PRE OUT
SUBWOOFER 1 2 SURROUND SURR BACK F.HEIGHT
(Single)
FRONT
CENTER
L
R
F.WIDE
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Center Subwoofer 2 Subwoofer 1
Surround left ZONE 2 - right ZONE 2 - left Surround right
