24
03
Connecting your equipment

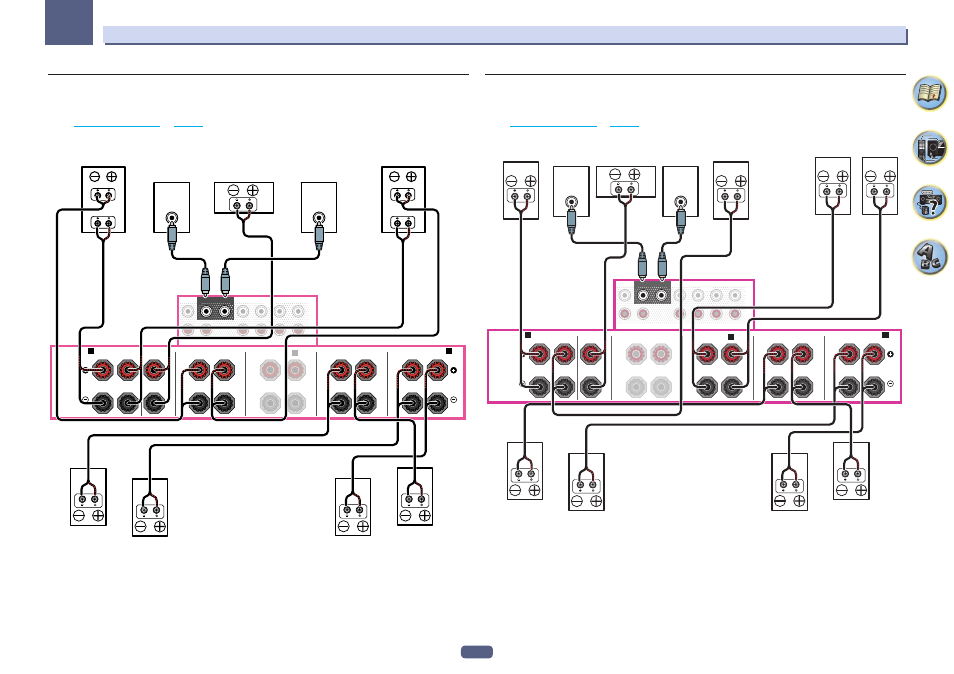

[C] 7.2 channel surround system & Front Bi-amping connection (High quality
surround)
! Select ‘7.1ch Front Bi-Amp’ from the Speaker System menu.
See
Speaker system setting on page 97 to do this.
! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
(Single)
SPEAKERS
FRONT CENTER A A B SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
R L R L R L R L R L
PRE OUT
SUBWOOFER 1 2 SURROUND SURR BACK F.HEIGHT
(Single)
FRONT
CENTER
L
R
F.WIDE
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Center Subwoofer 2 Subwoofer 1
Surround left
Surround back right Surround back left
Surround right
[D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi
Zone)
! Select ‘7.1ch + ZONE 2’ from the Speaker System menu.
See
Speaker system setting on page 97 to do this.
! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
(Single)
SPEAKERS
FRONT CENTER A A B SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
R L R L R L R L R L
PRE OUT
SUBWOOFER 1 2 SURROUND SURR BACK F.HEIGHT
(Single)
FRONT
CENTER
L
R
F.WIDE
LINE LEVEL
INPUT
LINE LEVEL
INPUT
ZONE 2 - left ZONE 2 - right
Front left Front right
Center Subwoofer 2 Subwoofer 1
Surround left Surround back right Surround back left Surround right
