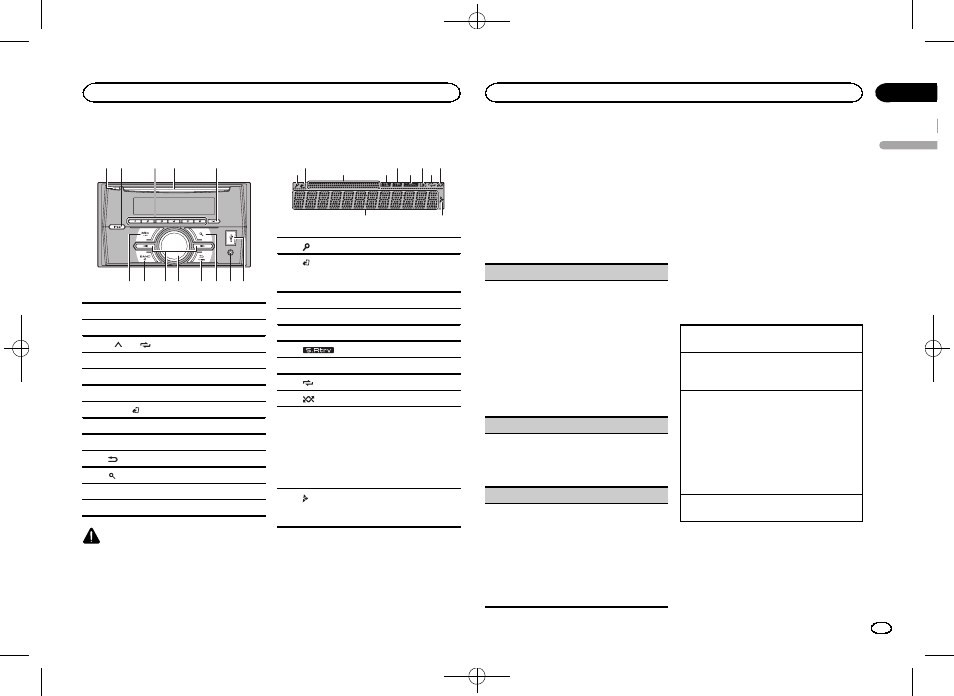

Head unit
1 2 4 5
8 9 7 a c 6 b d
3
1 h (eject)
2 iPod
3 1/ to 6/
4 Disc loading slot
5 DISP
6 SRC/OFF
7 BAND/ (iPod control)
8 c/d
9 MULTI-CONTROL (M.C.)
a (back)/ DIMMER (dimmer)
b (list)
c AUX input jack (3.5 mm stereo jack)
d USB port
CAUTION
Use an optional Pioneer USB cable (CD-U50E)
to connect the USB storage device as any device
connected directly to the unit will protrude out
from the unit, which could be dangerous.
Display indication
3 1 4 8 6
a
2 5 7 9
b
1 (list)
2
(iPod control)
This unit ’s iPod function is operated from
your iPod.
3 Sub information section
4 TA (traffic announcements)
5 TP (traffic program identification)
6 (sound retriever)
7 LOC (local seek tuning)
8 (repeat)
9 (random)
a
Main information section
! Tuner: band and frequency
! RDS: program service name, PTY infor-
mation and other literal information
! CD player, USB storage device and iPod:
elapsed playback time and text informa-
tion
b Appears when a lower tier of folder or menu
exists.
Set up menu
1 After installation of this unit, turn the
ignition switch to ON.
SET UP appears.
2 Turn M.C. to switch to YES.
# If you do not use the unit for 30 seconds, the set
up menu will not be displayed.
# If you prefer not to set up at this time, turn M.C.
to switch to
NO.
3 Press M.C. to select.
4 Follow these steps to set the menu.
To proceed to the next menu option, you need to
confirm your selection.
LANGUAGE (multi-language)
This unit can display the text information from a
compressed audio file even for information em-
bedded in English, Russian or Turkish.
! If the embedded language and the selected
language setting are not the same, text infor-
mation may not display properly.
! Some characters may not be displayed prop-
erly.
1 Turn M.C. to select the desired setting.
ENG (English) —РУС (Russian)—TUR (Turk-
ish)
2 Press M.C. to confirm the selection.
CLOCK SET (setting the clock)
1 Turn M.C. to adjust hour.
2 Press M.C. to select minute.
3 Turn M.C. to adjust minute.
4 Press M.C. to confirm the selection.
FM STEP (FM tuning step)
Use FM STEP to set FM tuning step options (seek
step settings).
1 Turn M.C. to select the FM tuning step.
100 (100 kHz) —50 (50 kHz)
2 Press M.C. to confirm the selection.
QUIT appears.
! The manual tuning step is fixed at 50 kHz.
! When AF and TA are turned off, the seek step
is fixed at 50 kHz even if set to 100.
5 To finish your settings, turn M.C. to select
YES.
# If you prefer to change your setting again, turn
M.C. to switch to NO.
6 Press M.C. to select.
Notes
! You can set up the menu options from the
system menu and initial menu. For details
about the settings, refer to System menu on
page 8 and Initial menu on page 9.
! You can cancel set up menu by pressing
SRC/OFF.
Basic operations
Turning the unit on
1 Press SRC/OFF to turn the unit on.
Turning the unit off
1 Press and hold SRC/OFF until the unit turns
off.
Selecting a source
1 Press SRC/OFF to cycle between:
RADIO —CD—USB/iPod—APP (application)—
AUX
! USB MTP displays while the MTP connection
is in use.
! When there is an iPod connected and a source
other than iPod is selected, you can switch to
iPod by pressing iPod.
Adjusting the volume
1 Turn M.C. to adjust the volume.
Note
When this unit ’s blue/white lead is connected to
the vehicle ’s auto-antenna relay control termi-
nal, the vehicle ’s antenna extends when this
unit ’s source is turned on. To retract the anten-
na, turn the source off.
