Displays & Controls
Remote Control
(VSX-D850S)

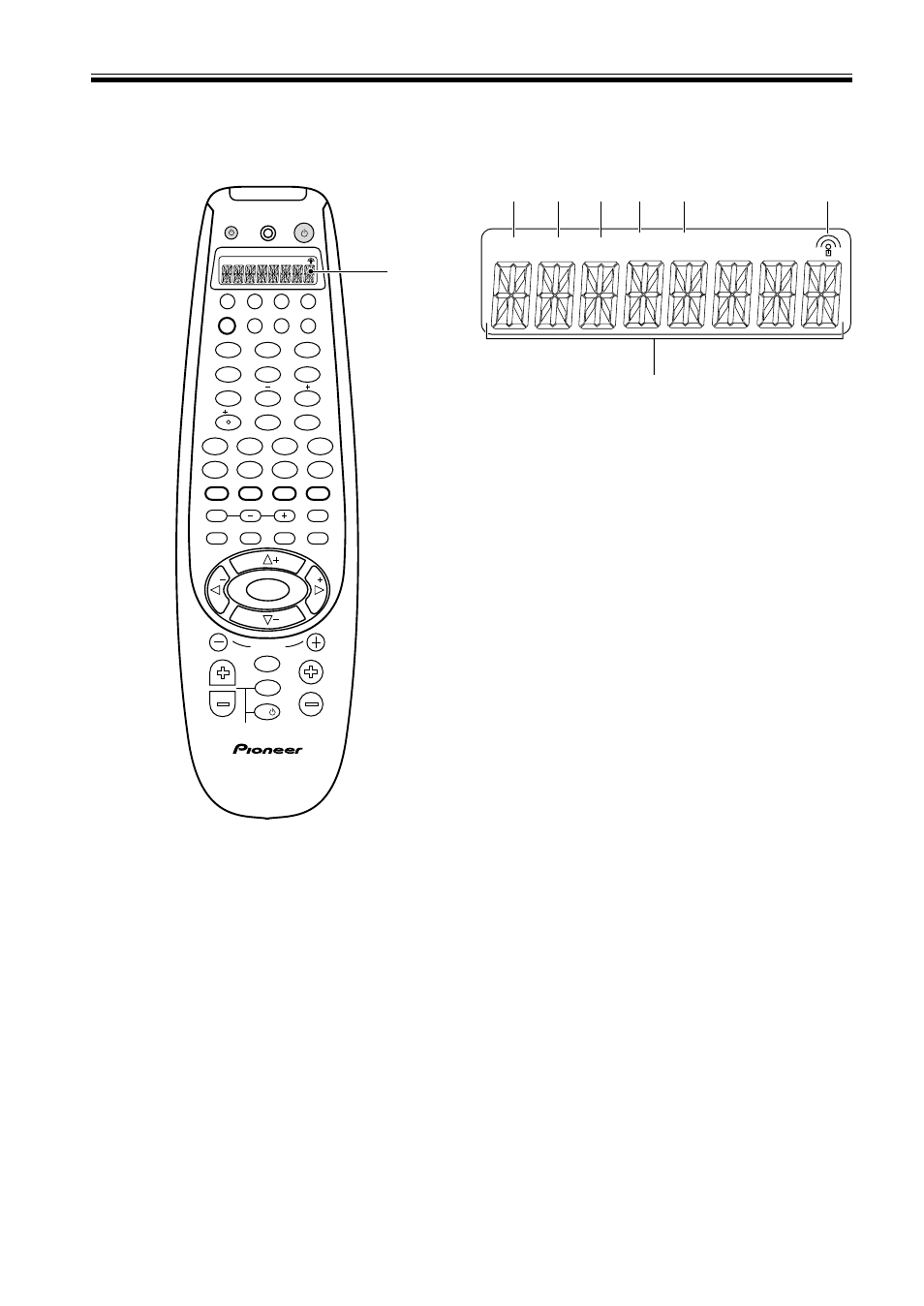

1 LCD display
2 SETUP
Indicates that the remote is in Setup mode.
3 SEARCH
Indicates that the remote is in preset code Search
mode.
4 SEARCH BY BRAND
Indicates that the remote is in preset code Search by
brand mode.
5 LEARN
Indicates that the remote is in Learning mode and
ready to learn signals from other remote controllers.
6 ERASE
Indicates that the remote is in Erase mode.
7 Transmit icon
Blinks to indicate the remote is transmitting control
signals.
8 CHARACTER display
Shows preset codes and other information.
TV
TVFUNC
MENU
VOLUME MASTER VOLUME
TV CONTROL
AV PRE-PROGRAMMED AND LEARNING
REMOTE CONTROL UNIT
CHANNEL
ENTER
ENTER
DISC
DTV INFO MPX/RETURN
DTV ON/OFF DTV MENU
D.ACCESS GUIDE
ST
TUNE
TUNE
ST
CLASS
ATT
BAND
/DTS DSP TEST TONE
CH SELECT CH LEVEL FUNCTION
SIGNAL SELECT
1 ¡ 4 ¢
7 8 3 ¶
EFFECT
DVD VCR CD-R TV
RCV TUN TVC CD
MIDNIGHT
LOUDNESS MUTING SETUP FL DIMMER
MULTI CONTROL
5.1 / 7.1
RECEIVER SOURCE
1 2 3
4 5 6
7 8 9
0
10
2
SETUP SEARCH SEARCH BY BRAND LEARN ERASE 1
LCD Display
(VSX-D850S only)
SETUP SEARCH LEARN ERASE SEARCH
BY BAND
2
8
3 4 7 5 6
