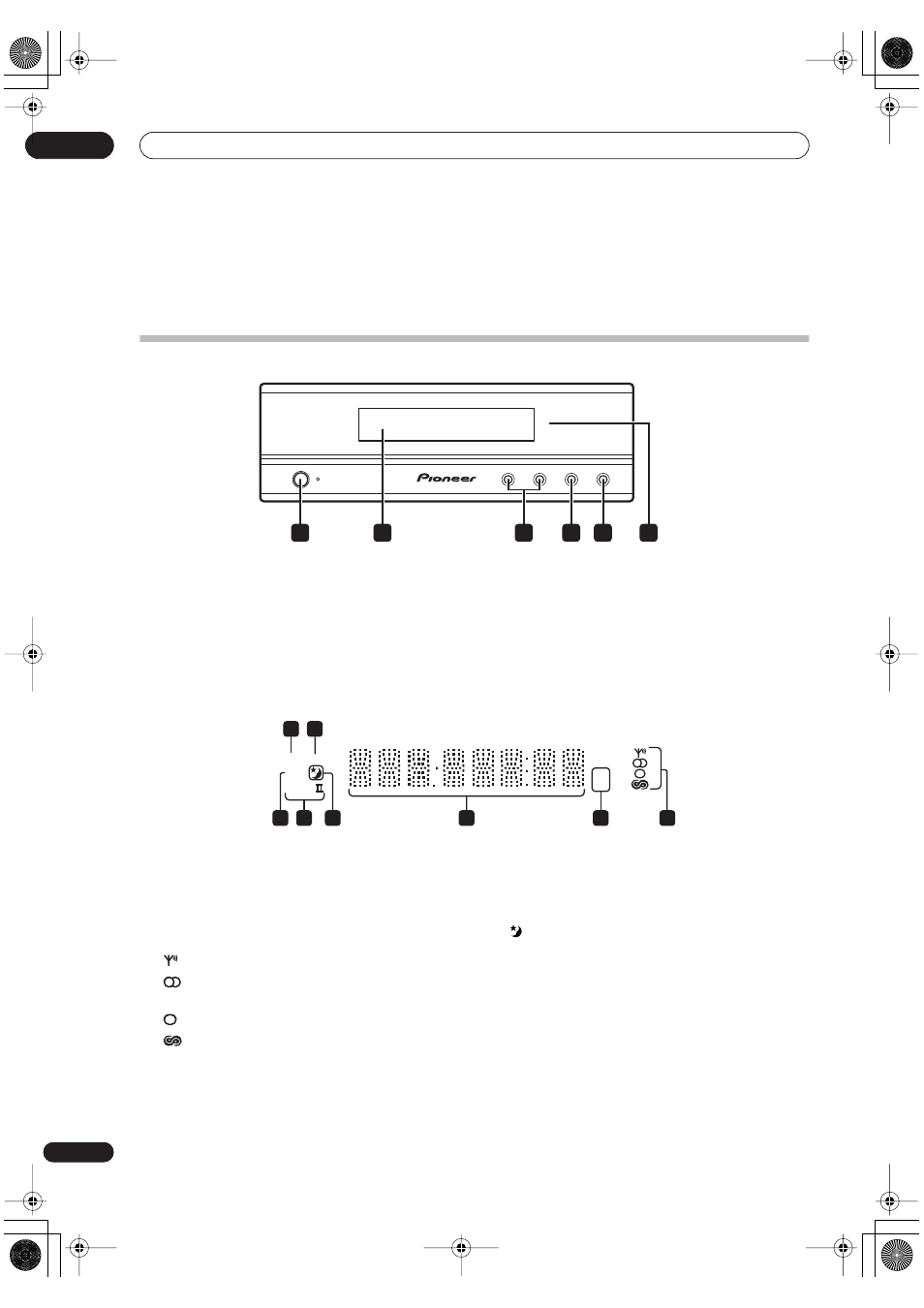

Display unit
1
STANDBY/ON
Press to switch the system on/into standby.
2
Front panel display
See below for details.
3
VOLUME buttons
Use to adjust the volume.
4
AUDIO INPUT
(page 29)
Press repeatedly to select one of the external audio
inputs (
DVD/DVR1
,
DVD/DVR2
,
DIGITAL
or
ANALOG
).
5
SURROUND
Use to select a Surround mode (page 22).
6
IR remote sensor
(page 15)
Display
1
DTS
Lights during playback of a DTS source (page 22).
2
F.SURR.
Lights when the Front Surround listening mode is
selected (page 23).
3
Tuner indicators
– Lights when a broadcast is being received.
– Lights when a stereo FM broadcast is being
received in auto stereo mode.
– Lights when FM mono reception is selected.
– Lights when in one of the RDS display or search
modes.
4
kHz / MHz
Indicates the frequency unit shown in the character
display (
kHz
for AM,
MHz
for FM).
5
Character display
6
Lights when sleep timer is active (page 30).
7
2
PL II
Lights during Dolby Pro Logic II decoding (page 22).
8
2
D
Lights during playback of a Dolby Digital source
(page 22).
STANDBY/ON
– VOLUME +
AUDIO INPUT SURROUND
1
4
6
5
2
3
2
PL
2
D
kHz
MHz
DTS F.SURR.
4
3
2
6
7
8
5
1
