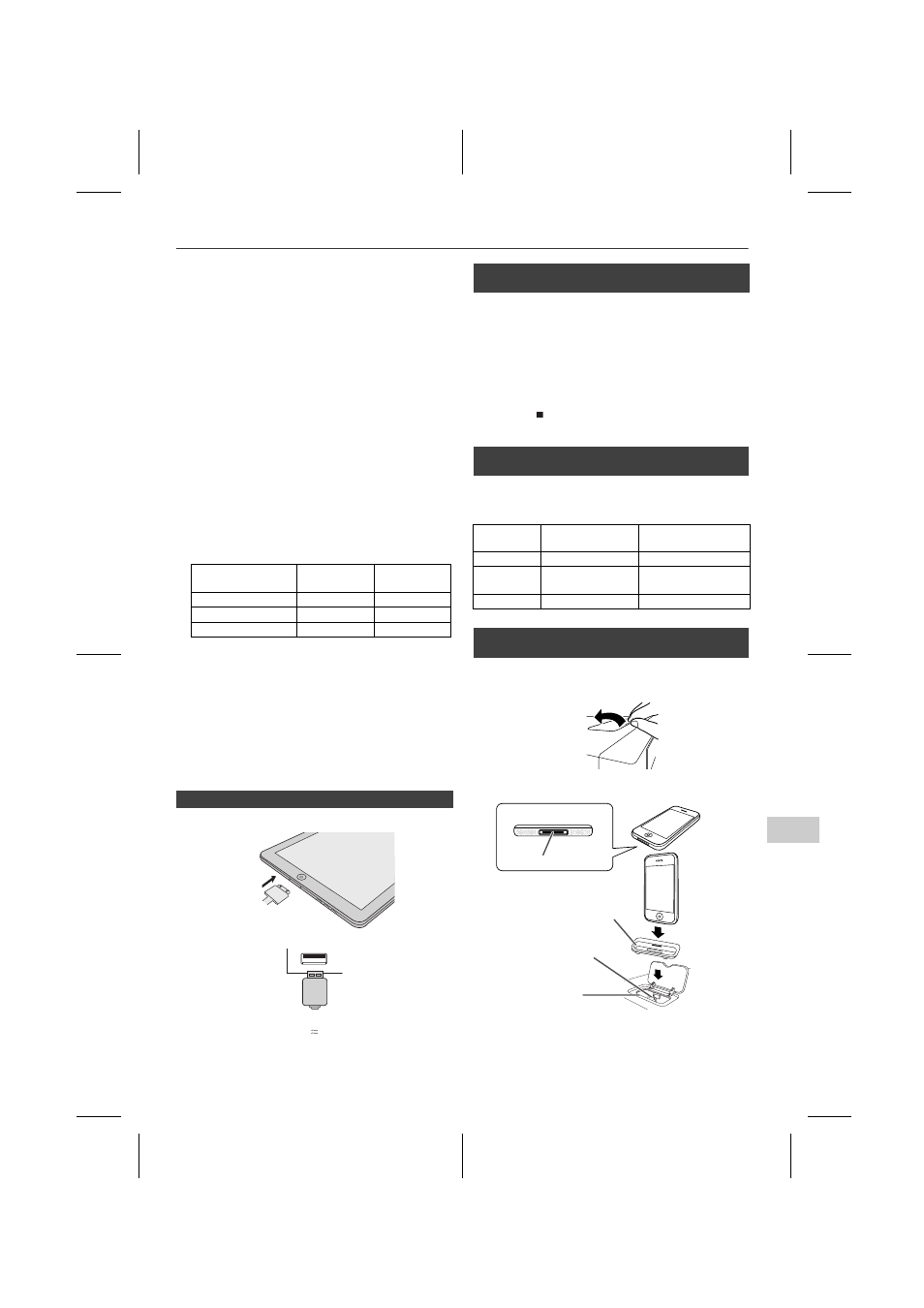

Listening to the iPod, iPhone or iPad
Supported iPod, iPhone and iPad models:
l iPad
l iPhone 4
l iPhone 3GS
l iPhone 3G
l iPhone
l iPod touch (4 th generation)
l iPod touch (3 rd generation)
l iPod touch (2 nd generation)
l iPod touch (1 st generation)
l iPod classic
l iPod nano (6 th generation)
l iPod nano (5 th generation)
l iPod nano (4 th generation)
l iPod nano (3 rd generation)
l iPod nano (2 nd generation)
Notes:
l This system has been developed and tested for the
software version of iPod/iPhone/iPad indicated on the
website of Pioneer (http://pioneer.jp/homeav/support/
ios/eu/).
l Installing software versions other than indicated on the
website of Pioneer to your iPod/iPhone/iPad may result
in incompatibility with this system.
l The iPad is only supported by the USB terminal.
l Charging terminal for iPod, iPhone and iPad:
l The message “This accessory is not made to work with
iPhone” or similar, may appear on the iPhone screen
when:
- battery is low.
- the iPhone is not properly docked (eg. slanting).
if this occure, remove and re-dock the iPhone.
l This product is made for iPhone. To prevent random
interference when iPod/iPhone is docked, the
headphone output is disabled and "HP INVALID" will
be displayed.
You may also experience brief audio interference
during incoming calls.
1 Press the STANDBY/ON button to turn the power on.
2 Press the USB button on the remote control or INPUT
button repeatedly on the main unit to select USB Audio
function.
3 Connect iPod, iPhone or iPad to the unit. "USB/iPod"
will appear.
4 Press the  button to start playback.
Note:
Stop button ( ) is invalid during iPod, iPhone or iPad
playback.
Note:
Please use the adaptor supplied with your iPod or iPhone
unit.
Caution:
Unplug all accessories from the iPod or iPhone before
inserting it into the dock.
Condition
Docking
station
USB terminal
USB Audio function NO YES
Other function YES NO
Stand-by YES NO
n iPad connection (USB Terminal)
1 Insert the connector to the the iPod, iPhone or iPad.
2 Connect the iPad to the unit via USB connector.
Note:
USB connector do not support VIDEO out.
n iPod, iPhone or iPad Playback
(USB Terminal)
n iPhone adaptor connection
(Docking Station)
iPhone
Adaptor No.
iPhone
Description
Capacity
12 iPhone 4GB & 8GB & 16GB
15 iPhone 3G,
iPhone 3GS
8GB & 16GB & 32GB
19 iPhone 4 16GB & 32GB
n To insert adaptor for iPod or iPhone
(Docking Station)
1 Open the docking station for iPod and iPhone by pulling
up.
2 Insert the adaptor for iPod and iPhone into unit and
connect your iPod or iPhone.
iPhone
Dock connector
iPhone (bottom)
Connector for iPhone
Dock for iPhone
Adaptor for iPhone
