Part names and functions 03
12
En

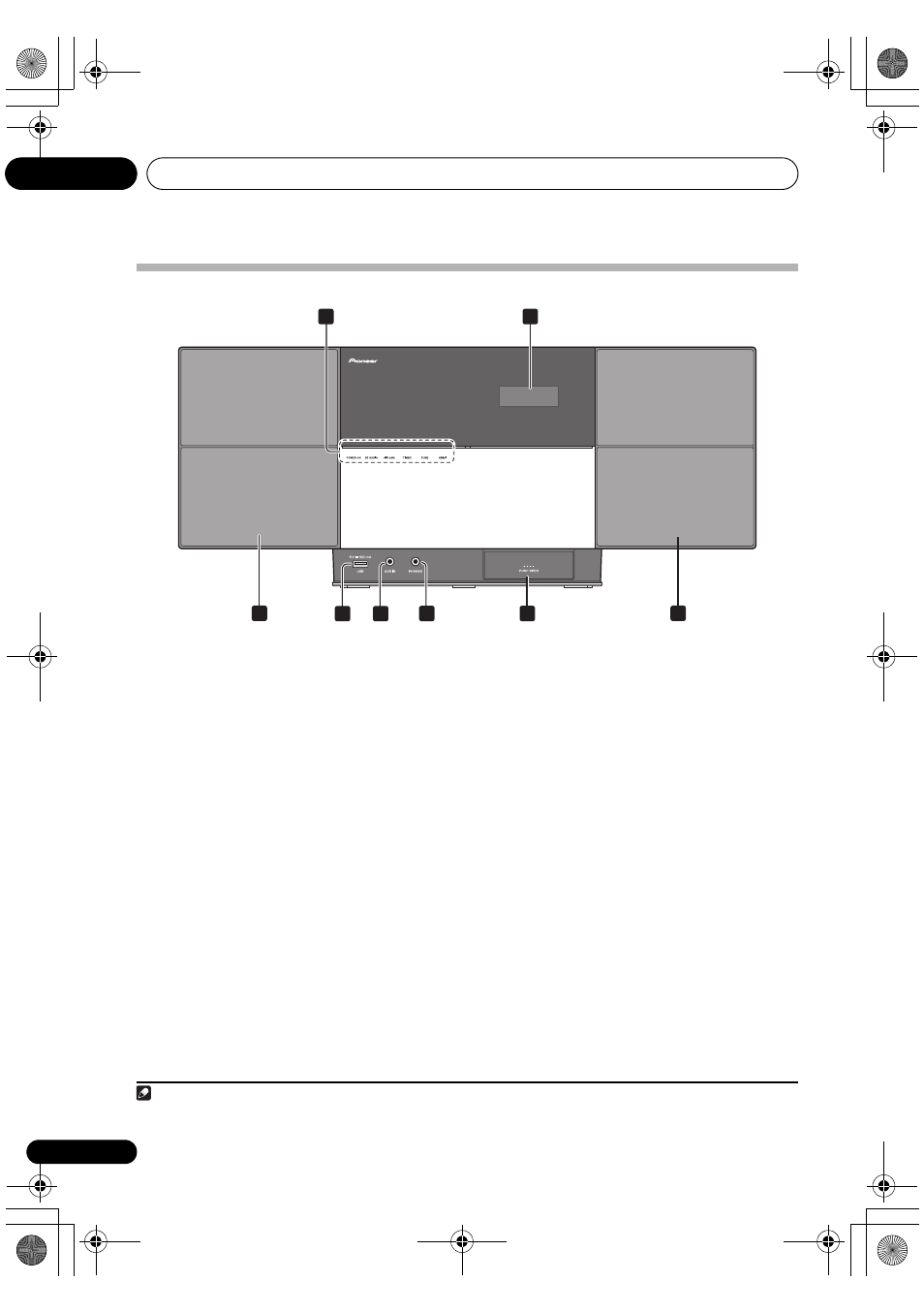

Front panel
1 POWER ON
When the power is on, this indicator lights.
BT AUDIO
1
When BT AUDIO is selected as the input source, this
indicator lights.
AIR JAM
1
When AIR JAM is selected as the input source, this
indicator lights
TIMER
When the wake-up timer is set to ON, this indicator
lights.
TUNE
When the tuner receives FM broadcasts, this indicator
lights.
HDMI
When this unit is recognized by another HDMI
compatible component, this indicator lights.
2 Front panel display
3 Speaker units
4 USB terminal
5 AUX IN
Use to connect auxiliary components.
6 PHONES
Use to connect headphones.
7 iPod/iPhone connector ports
3 3
2
4 5 6 77
1
Note
1 Optionally available. To use BT AUDIO and AIR JAM function, you need to connect the commercially available Bluetooth ® adapter:
AS-BT200 to the unit. See page 18 for details.
