Pioneer PDK-TS27 - Manual (Page 13)

13
En
English

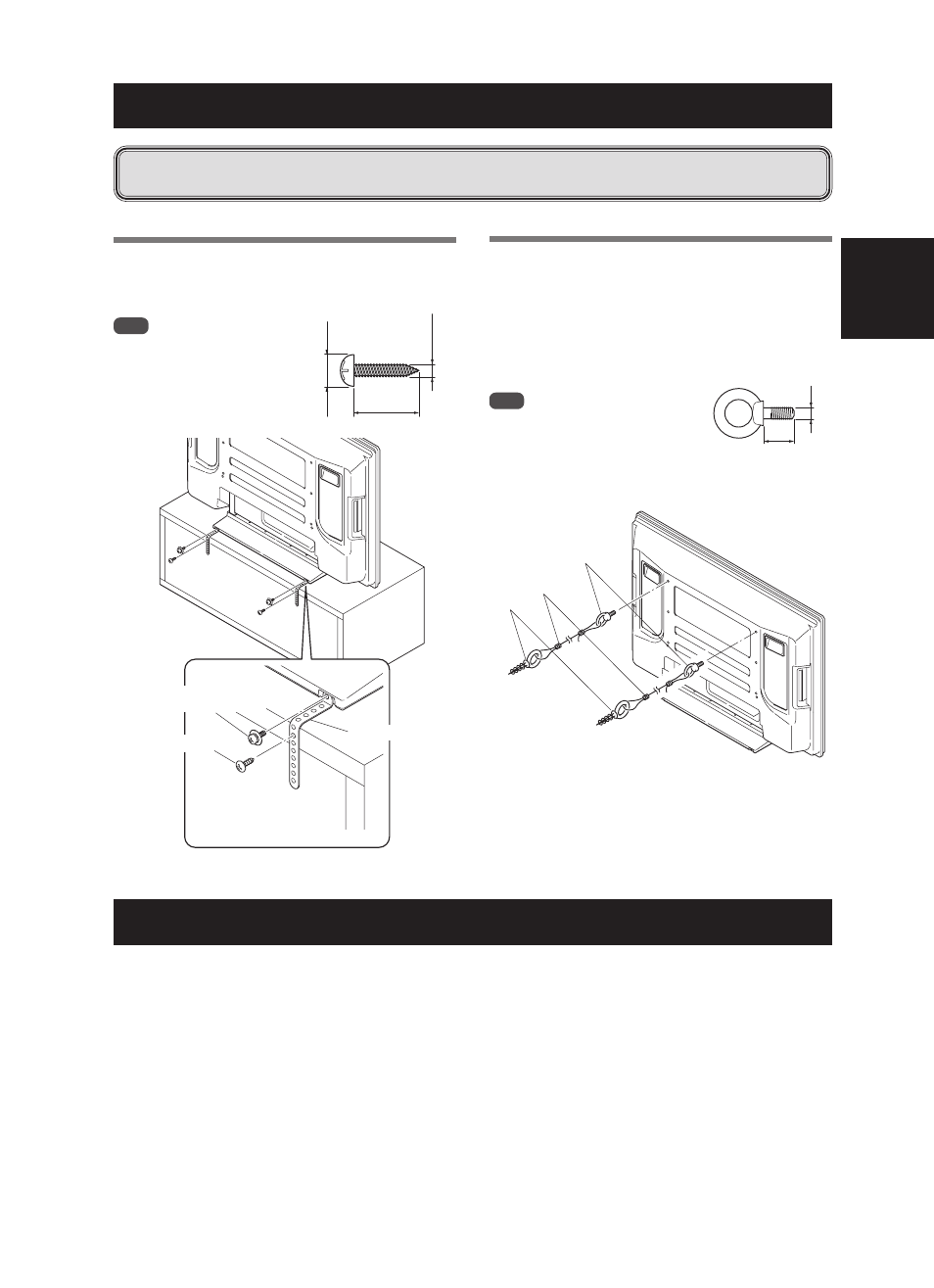

Stabilizing on a rack etc.
Fix the plasma television using the screws 5 (M4 × 10 mm:
black) and fall-prevention straps as shown in the diagram.
Fix the racks etc. using screws for sale on the market.
Note
To stabilize the equipment on a
table, use screws that have a
nominal diameter of 4 mm (5/32
inch) and that are at least 20 mm
(13/16 inch) long.
Min. 20 mm
(13/16 inch)
4 mm (5/32 inch)
8 mm to 15 mm
(3/8 inch to 5/8 inch)
Specifications
Make a pilot hole in the rack's
top board (center of the board's
thickness), and fix the strap
with a store-bought screw.
Screw
(commercially available) Fall-prevention strap
Screw 5
(M4 x 10 mm: black)
After installing the stand, be sure to take special care to ensure that the equipment will not fall over.
Secure the plasma television to both the rack and the wall surface.
Preventing Equipment from Falling Over
M8
12 mm to 15 mm
(1/2 inch to 5/8 inch)
Using a wall for stabilization
1
Attaching falling prevention bolts (hooks)
to the plasma television.
2
Using strong cords to firmly stabilize it
appropriately and firmly to a wall, pillar, or
other sturdy element.
Perform this work in the same way on the left and right
sides.
Note
Use hooks, cords, and fittings that
are available on the market.
Recommended hook:
Nominal diameter M8
Length 12 mm to 15 mm (1/2 inch to 5/8 inch)
1
Hook
2
Cord
Fitting
External dimensions:
PDK-TS27 ................ 550 mm (W) × 276 mm (H) × 237 mm (D) (21-21/32 in. (W) × 10-7/8 in. (H) × 9-11/32 in. (D))
PDK-TS27A ............. 552 mm (W) × 276 mm (H) × 238 mm (D) (21-23/32 in. (W) × 10-7/8 in. (H) × 9-3/8 in. (D))
PDK-TS28 ................ 550 mm (W) × 385.5 mm (H) × 300 mm (D) (21-21/32 in. (W) × 15-3/16 in. (H) × 11-13/16 in. (D))
PDK-TS29 ................ 550 mm (W) × 323 mm (H) × 300 mm (D) (21-21/32 in. (W) × 12-23/32 in. (H) × 11-13/16 in. (D))
PDK-TS29A ............. 552 mm (W) × 323 mm (H) × 301 mm (D) (21-23/32 in. (W) × 12-23/32 in. (H) × 11-27/32 in. (D))
Weight:
PDK-TS27 ................ 1.6 kg (3.6 lbs)
PDK-TS27A ............. 1.9 kg (4.2 lbs)
PDK-TS28 ................ 2.2 kg (4.9 lbs)
PDK-TS29 ................ 2.1 kg (4.7 lbs)
PDK-TS29A ............. 2.5 kg (5.6 lbs)
• The above specifications and exterior may be modified without prior notice to improve the product.
