Connections
Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing
connections.
This Player is equipped with the terminals/jacks listed below. Find the corresponding terminal/jack on your video
equipment. Using the supplied cable or commercially available cables, connect the video first. Then connect the
audio.
Video terminals/jacks on this Player
Higher Quality
Standard Quality
HDMI OUT terminal 
Page 9
COMPONENT VIDEO 
OUTPUT jacks
Page 9
VIDEO OUTPUT jack 
Page 10
Audio terminals/jacks on this Player
Digital audio connection
Higher Quality
Standard Quality
HDMI OUT terminal 
Page 9
DIGITAL OUT OPTICAL 
terminal
Page 10
Analog audio connection
Standard Quality AUDIO OUTPUT jacks
Page 10
Broadband Internet connection
LAN (10/100) terminal
Page 11
 1 STANDBY/ON (page 12)
CONTINUED (page 19) 2
TV CONTROL buttons (page 12) 3
SECONDARY VIDEO (page 15) 4
REPEAT (page 18), REPEAT OFF (page 18) 5
EXIT (pages 12 and 20) 6
DISPLAY (pages 14 and 18) 7
TOP MENU/DISC NAVIGATOR (pages 14 and 15) 8

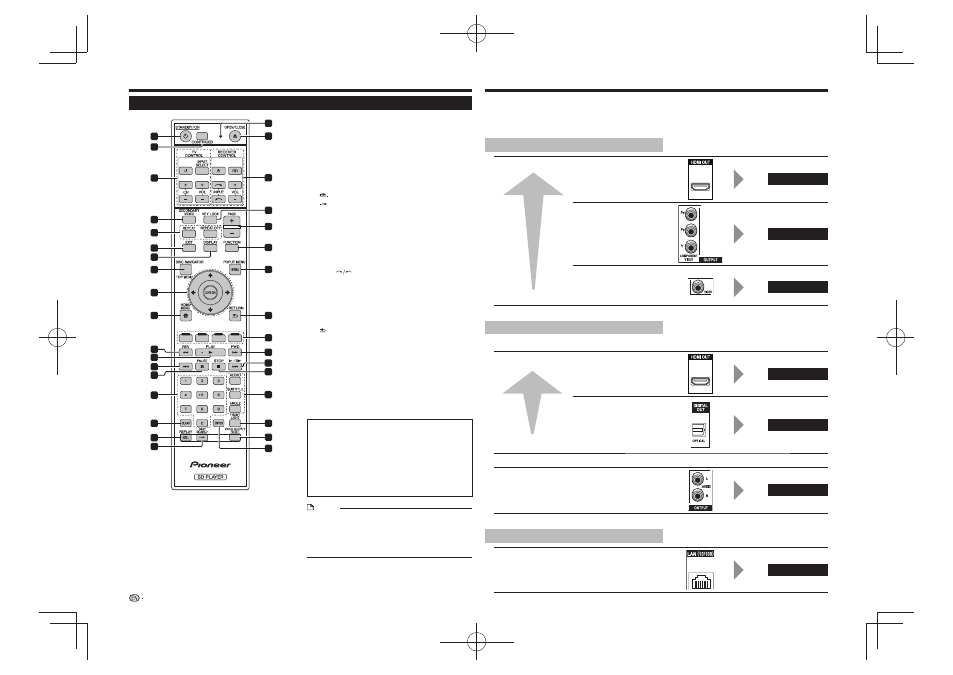

Remote Control Unit
Names and Functions of Parts
Cursor buttons ( 9 ), ENTER (pages 12 and 20)
HOME MENU (pages 12 and 20) 10
 11 REV (page 17)
 12 PLAY (page 14)
 13 (pages 15 and 17)
 14 PAUSE (page 17)
Number buttons (page 19) 15
CLEAR (page 19) 16
17 REPLAY (page 17)
18 SKIP SEARCH (page 17)
Remote control LED 19
Lights when a command is sent from the remote
control. Flashes while the TV brand code is being set.

20 OPEN/CLOSE (page 14)
RECEIVER CONTROL buttons 21
Used to operate a Pioneer AV receiver.
 – Turns the AV receiver’s power on and off.
BD
– Switches the AV receiver’s input to “BD”.
INPUT – The AV receiver’s input switches each time this
is pressed.
VOL +/–
– Press to adjust the volume.
KEY LOCK (See below.) 22
PAGE +/– (page 15) 23
FUNCTION (page 19) 24
POPUP MENU/MENU (page 14) 25
26 RETURN (page 20)
Color buttons (page 15) 27
 28 FWD (page 17)
 29 (pages 15 and 17)
 30 STOP (page 14)
AUDIO (page 18), SUBTITLE (page 18), ANGLE (page 31
18)
FRONT LIGHT (page 13)
32
VIDEO OUTPUT RESET (page 20) 33
ENTER (pages 12 and 20) 34
Keylock function
You can set the keylock to prevent accidental operations.
This function allows TVs compatible with control function
with HDMI to also perform a Key Lock on the player.
Press and hold KEY LOCK for more than 2 seconds.
Each time you perform this operation, the function is •
activated or deactivated.
If you try to operate the Player while the keylock function
•
is set, “HOLD” lights on the front panel display to
indicate that the keylock function is set.
NOTE
This remote control unit is equipped with two • ENTER
buttons (9 and 34 listed above).
To operate an AV receiver equipped with a remote control
•
mode setting using the RECEIVER CONTROL buttons, set
the AV receiver’s remote control mode to “1”. For details,
see the AV receiver’s operating instructions.
8
1
12
20
25
23
24
33
28
32
34
26
22
19
3
4
5
13
14
18
17
16
29
30
6
10
27
7
8
9
11
31
21
2
15
