BDP-LX54
FL OFF OPEN/CLOSE
USB 5 V 0.5 A
LAN
USB 5 V 0.5 A

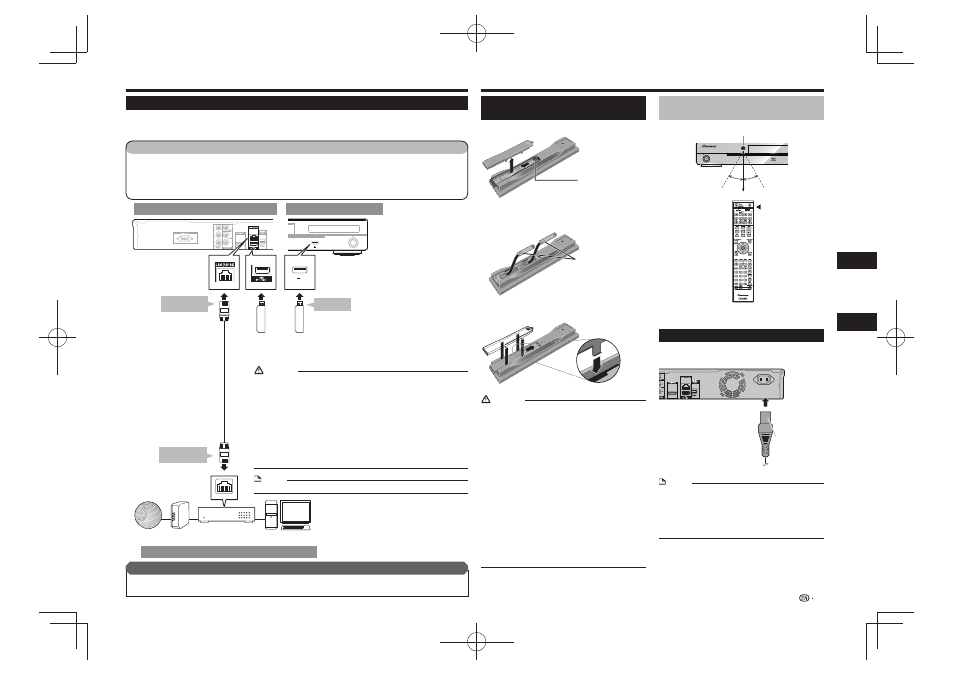

Connecting to the LAN (10/100) terminal
By connecting to the Internet, you can enjoy BD-LIVE functions as well as update this Player’s software. •
When using the Internet, a broadband internet connection as shown below is required. •
A separate contract with/payment to an Internet service provider is required to use the Internet. •
After connecting
Perform the communication setting. (Page 22) •
Load a BD-LIVE compatible disc and play back the contents. (Page 14) •
STEPS
Be sure to turn off this Player and the equipment before making any connections. 1
Either securely connect a LAN cable (commercially available) to the LAN (10/100) terminal ( 2  and ) or insert
an AS-WL200 USB Wireless LAN Adaptor (sold separately as an option) into the USB port on this Player’s rear
panel (
).
Insert the wireless LAN adaptor into the USB port on this Player’s rear panel. When doing this, connect the USB
memory device for BD-LIVE operations to the Player’s front panel.
Example of a Broadband Internet Connection
Connections
Front panel of this Player Rear panel of this Player
Before Starting Playback
Loading the Batteries in the
Remote Control
Open the rear cover. 1
Insert the batteries (AAA/R03 x 2). 2
Insert as indicated by the / marks into the
battery compartment.
Close the rear cover. 3
Close securely (a click should be heard).
CAUTION
Do not use any batteries other than the ones specified. •
Also, do not use a new battery together with an old one.
When loading the batteries into the remote control, set
•
them in the proper direction, as indicated by the polarity
marks (
 and ).
Do not heat batteries, disassemble them, or throw them •
into flames or water.
Batteries may have different voltages, even if they look
•
similar. Do not use different kinds of batteries together.
To prevent leakage of battery fluid, remove the batteries
•
if you do not plan to use the remote control for a long
period of time (1 month or more). If the fluid should leak,
wipe it carefully off the inside of the case, then insert new
batteries. If a battery should leak and the fluid should get
on your skin, flush it off with large quantities of water.
When disposing of used batteries, please comply
•
with governmental regulations or environmental public
institution’s rules that apply in your country/area.
Do not use or store batteries in direct sunlight or other
•
excessively hot place, such as inside a car or near a heater.
This can cause batteries to leak, overheat, explode or
catch fire. It can also reduce the life or performance of
batteries.
Connecting the Power Cord
Only connect the power cord once all equipment
connections are completed.
BDP-LX54
AC IN
NOTE
Place the Player close to the AC outlet, and keep the •
power plug within reach.
TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT
•
TOUCH THE UN-INSULATED PARTS OF ANY CABLES
WHILE THE AC CORD IS CONNECTED.
If you are not going to use this Player for a long period of
•
time, be sure to remove the AC cord from the AC outlet.
Approximate operating range of
remote control
STANDBY/ON PQLS
11
Connection
Playback
CAUTION
Use the Pioneer-designated USB Wireless LAN Adaptor sold separately as an •
option. Operation is not guaranteed with other wireless LAN adaptors.
Do not disconnect the USB Wireless LAN Adaptor while the player is operating.
•
The USB Wireless LAN Adaptor is not sold in certain countries. •
When using a broadband Internet connection, a contract with an Internet •
service provider is required. For more details, contact your nearest Internet
service provider.
Refer to the operation manual of the equipment you have as the connected
•
equipment and connection method may differ depending on your Internet
environment.
Do not use a USB extension cable when connecting a USB memory device
•
to the USB terminal of the player. Using a USB extension cable may prevent
the player from performing correctly.
NOTE
Use an Ethernet hub/router supporting 10BASE-T/100BASE-TX. •
LAN cable
(commercially available)
Internet Modem Ethernet hub
(router with hub function)
PC
To LAN (10/100)
terminal 
To LAN terminal

To USB port
Enjoying BONUSVIEW or
BD-LIVE
Requires the USB memory device •
(commercially available).
The memory device purchased
should comply with USB
specification 2.0 and have
minimum capacity of 1 GB, with
2 GB or more recommended.
USB Wireless LAN Adaptor AS-WL200
(sold separately as an option)
or USB memory device
(commercially available)

Remote control sensor
Remote control unit
30º 30º
7 m
To AC IN terminal
To AC outlet
Press lightly on this
part and slide into the
direction of the arrow.
Insert the negative ( )
side first.
