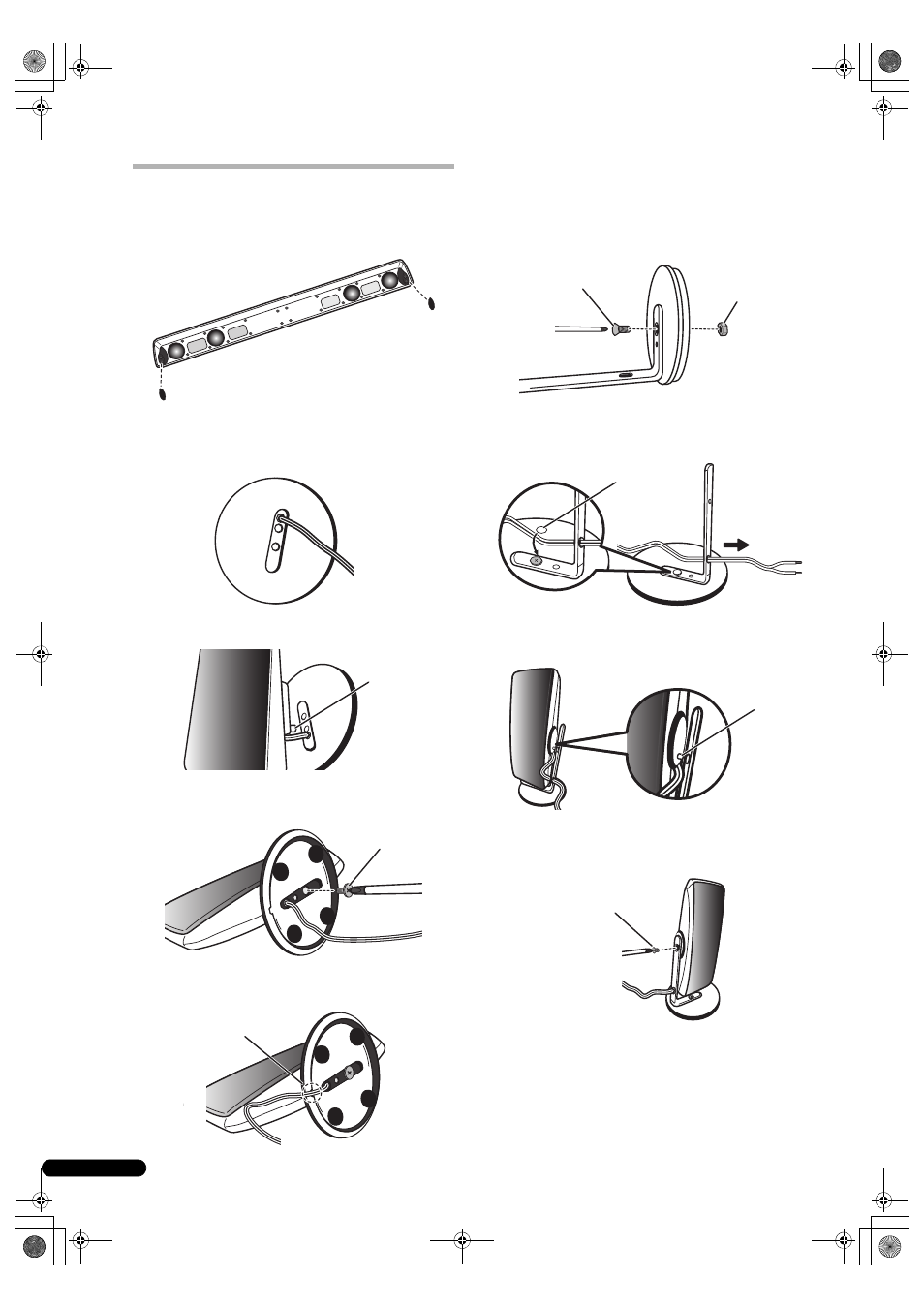

Assembly
S-HV600B
1 Apply the non-skid pad to the bottom surface of the leg.
S-HV500-LR
Horizontal orientation
1 Pass the speaker cord through the hole in the base.
2 Align the rotation stop lug with the hole in the base.
3 Fasten the speaker to the base use the horizontal
mounting screw from the back side of the base.
4 Set the speaker so that the speaker cord passes through
the groove in the base.
Vertical orientation
1 Align the vertical mounting stay with the hole in the
base.
2 Fasten the vertical mount stay to the base using the
vertical mount bolt and hex nut. Be sure the hex nut fits into
the hexagonal groove in the bottom of the base.
3 Pass the speaker cord through the vertical mount satay
hole.
4 Align the speaker's rotation stop lug with the hole in the
vertical stay.
5 Fasten the speaker to the vertical stay, using the vertical
mount screw.
Rotation
stop lug
Horizontal mount
screw
Wire cutout
Vertical mount screw
Vertical mount hex nut
Seal
Rotation
stop lug
Vertical mount screw
