67

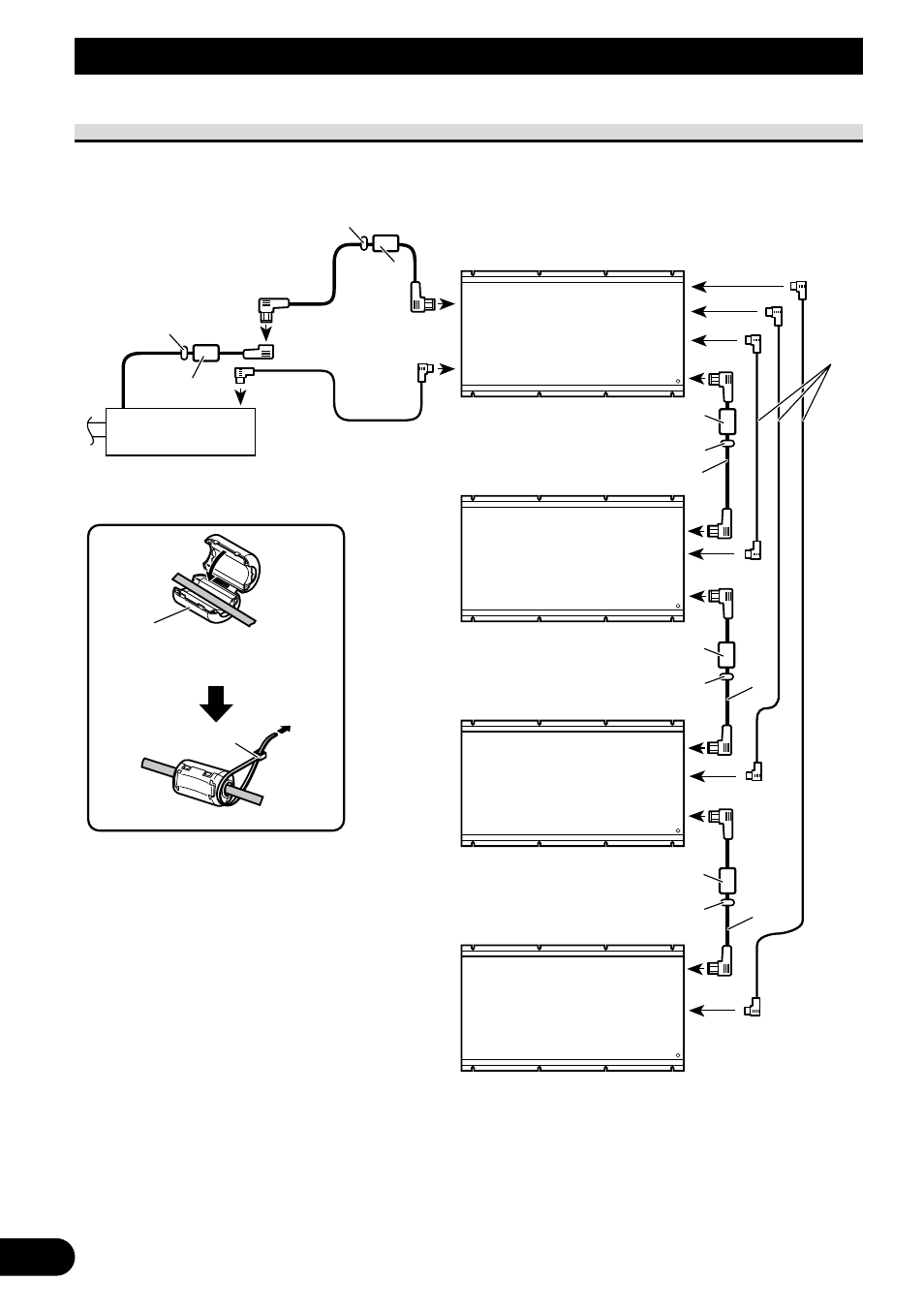

Connecting the Units
Attaching the Noise Filter
To prevent the noise, use the supplied noise filter correctly.
RS-D7R
(Sold separately)
This unit (RS-A9)
RS-A7 (Sold separately)
*7
*8
*2
*1
*1: IP-BUS cable (supplied)
*2: Optical cable (supplied)
*3: Lock tie (supplied)
*4: Noise filter (supplied)
*5: Noise filter (supplied with RS-A7)
*6: Lock tie (supplied with RS-A7)
*7: IP-BUS cable (supplied with RS-A7)
*8: Optical cable (supplied with RS-A7)
*3
*4
*3
*4
*5
*6
*5
*6
*5
*6
*7
*7
RS-A7 (Sold separately)
RS-A7 (Sold separately)
Noise filter
Lock tie
