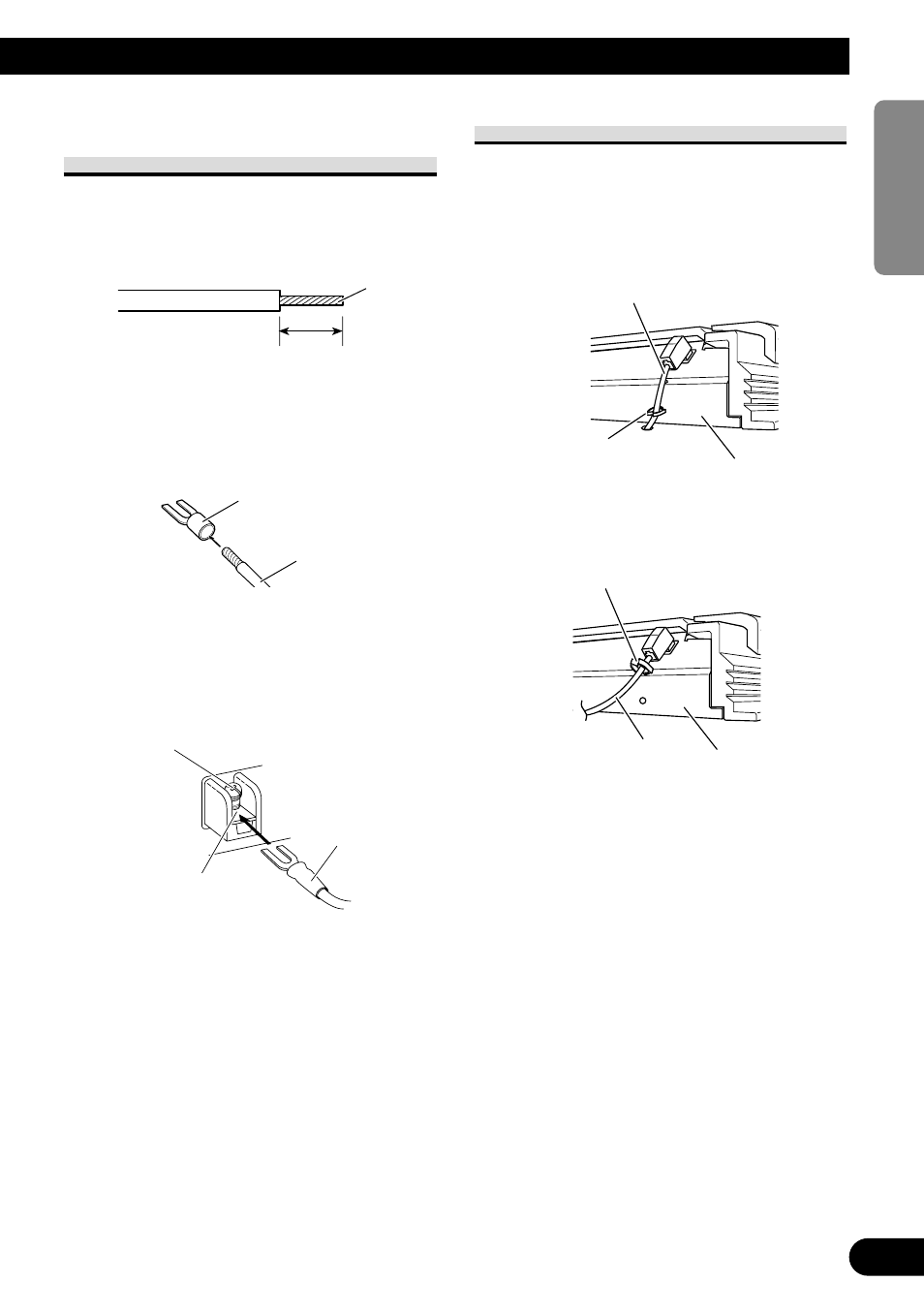

Connecting the Speaker Output
Terminals
1. Expose the end of the speaker wires
using nippers or a cutter by about
10 mm and twist.
2. Attach lugs to speaker wire ends.
Lugs not supplied.
• Use pliers, etc., to crimp lugs to wires.
3. Connect the speaker wires to the
speaker output terminals.
• Fix the speaker wires securely with the termi-
nal screws.
Secure the optical cable
Secure the optical cable using the sup-
plied clamp as shown below.
• When the optical cable is routed
under the board.
• When the optical cable is routed
on the board.
Clamp
Optical cable
This unit
Clamp
Optical cable
This unit
Speaker wire
Terminal screw
Speaker output terminal
10 mm
Speaker wire
Lug
Twist
