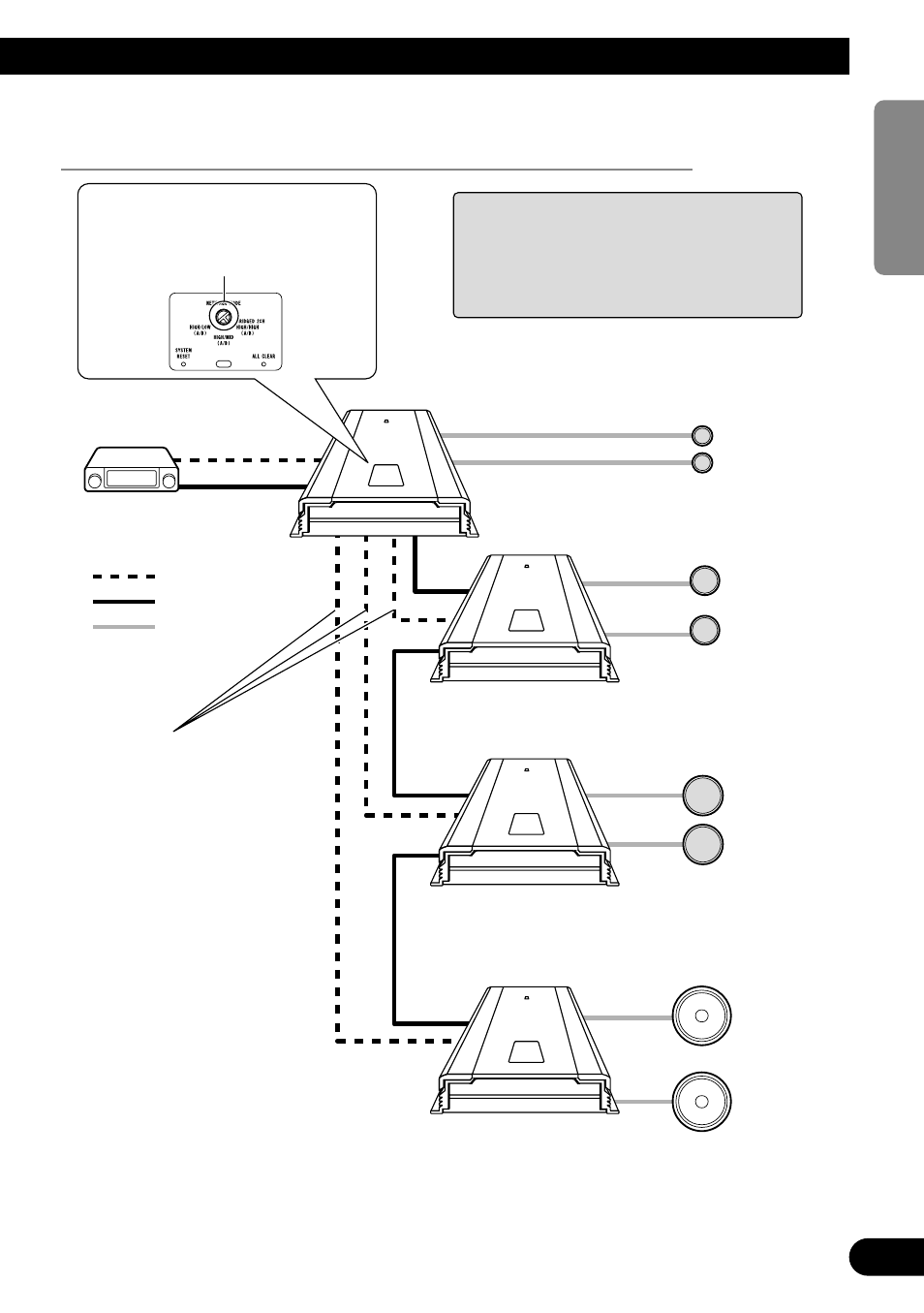

Example of 4-way system connection with 1 RS-A9 and 3 RS-A7s
(Full-balanced pure digital system)
If the RS-A7’s Network mode
setting switches for CHANNEL
A and B are set identically (2ch),
connect an optical digital line to
the RS-A7’s OPTICAL IN CH-
A jack.
Tweeter
Low-range
RS-D7R
(Sold separately)
This unit (RS-A9)
Mid-range
Address: 2
Setting: CHANNEL A·B : MID
RS-A7 (Sold separately)
Subwoofer
Optical cable must be connected to
A ch.
Address: 3
Setting: CHANNEL A·B : LOW
RS-A7 (Sold separately)
Optical cable must be connected to
A ch.
Address: 4
Setting: CHANNEL A·B : SW
RS-A7 (Sold separately)
Optical cable must be connected to
A ch.
Optical cable
IP-BUS cable
Analog signal
When using the RS-A7 with 2-channel
connection, be sure the RS-A7’s CHANNEL A
and B Network mode setting switches are set
identically. Sound will not be output if they are
set differently.
Network mode setting switch
BRIDGED 2CH
HIGH/HIGH (A/B)
60
