Connecting the Speaker wires

You can use this product for 4-channel, 3-channel and 2-channel speaker output. Speaker
wire connection differs for each, so be careful to assure + and - polarity and left/right (L/R)
connections are correct.

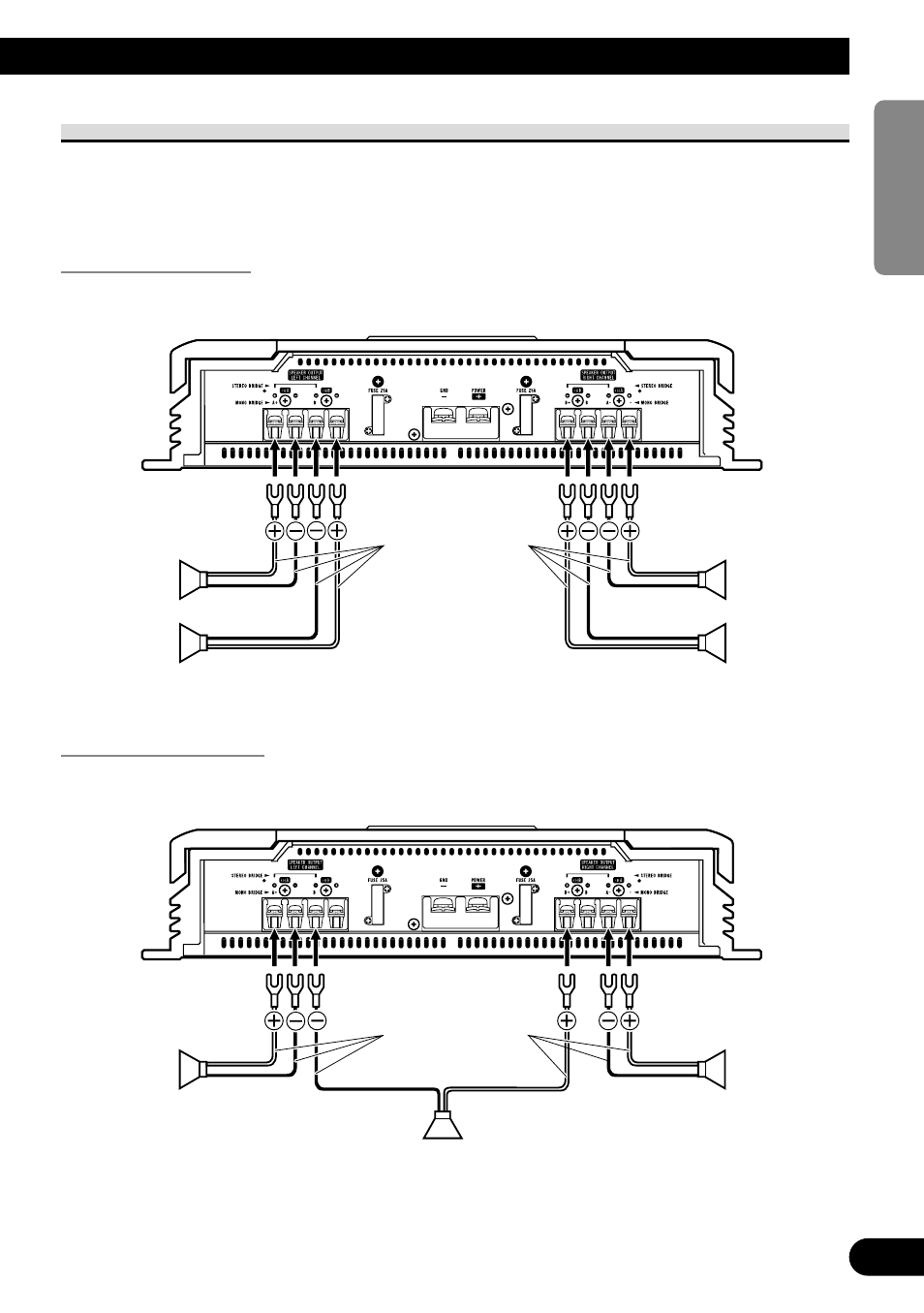

Four-channel mode

Three-channel mode

Speaker (left)

Speaker (right)

Speaker wires

(sold separately)

Speaker (monaural)

Speaker (left)

Speaker (right)

Speaker wires

(sold separately)
