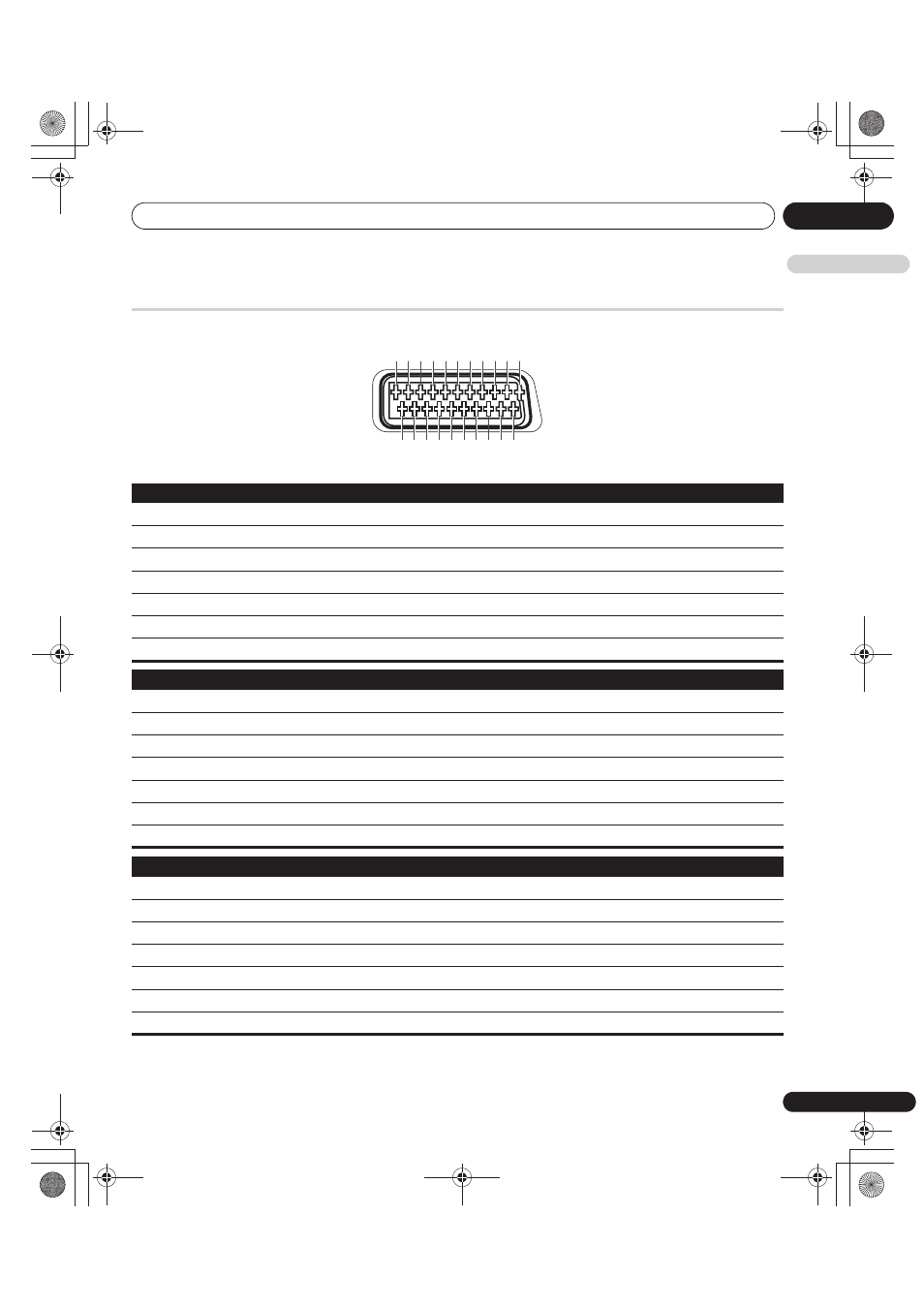

SCART pin assignments
Various audio and video devices may be connected via the SCART terminals.
SCART (INPUT 1)
1
Audio right output
2
Audio right input
3
Audio left output
4
Common earth for audio
5
Earth for Blue
6
Audio left input
7
Blue input
8
Audio-video control
9
Earth for Green
10 Not used
11 Green input
12 Not used
13 Earth for Red
14 Earth for Red/Green/Blue control
15 Red input
16 Red/Green/Blue control
17 Earth for Video output
18 Earth for Video input
19 Video output
20 Video input
21 Plug shield
SCART (INPUT 2)
1
Audio right output
2
Audio right input
3
Audio left output
4
Common earth for audio
5
Earth
6
Audio left input
7
Not used
8
Audio-video control
9
Earth
10 AV link control
11 Not used
12 Not used
13 Earth
14 Earth
15 Chroma S-Video input
16 Not used
17 Earth for Video output
18 Earth for Video input/S-Video input
19 Video output
20 Video input/S-Video input
21 Plug shield
SCART (INPUT 3)
1
Audio right output
2
Audio right input
3
Audio left output
4
Common earth for audio
5
Earth for Blue
6
Audio left input
7
Blue input
8
Audio-video control
9
Earth for Green
10 AV link control
11 Green input
12 Not used
13 Earth for Red
14 Earth for Red/Green/Blue control
15 Chroma S-Video input
16 Red/Green/Blue control
17 Earth for Video output
18 Earth for Video input/S-Video input
19 Video output
20 Video input/S-Video input
21 Plug shield
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
