01
16
En

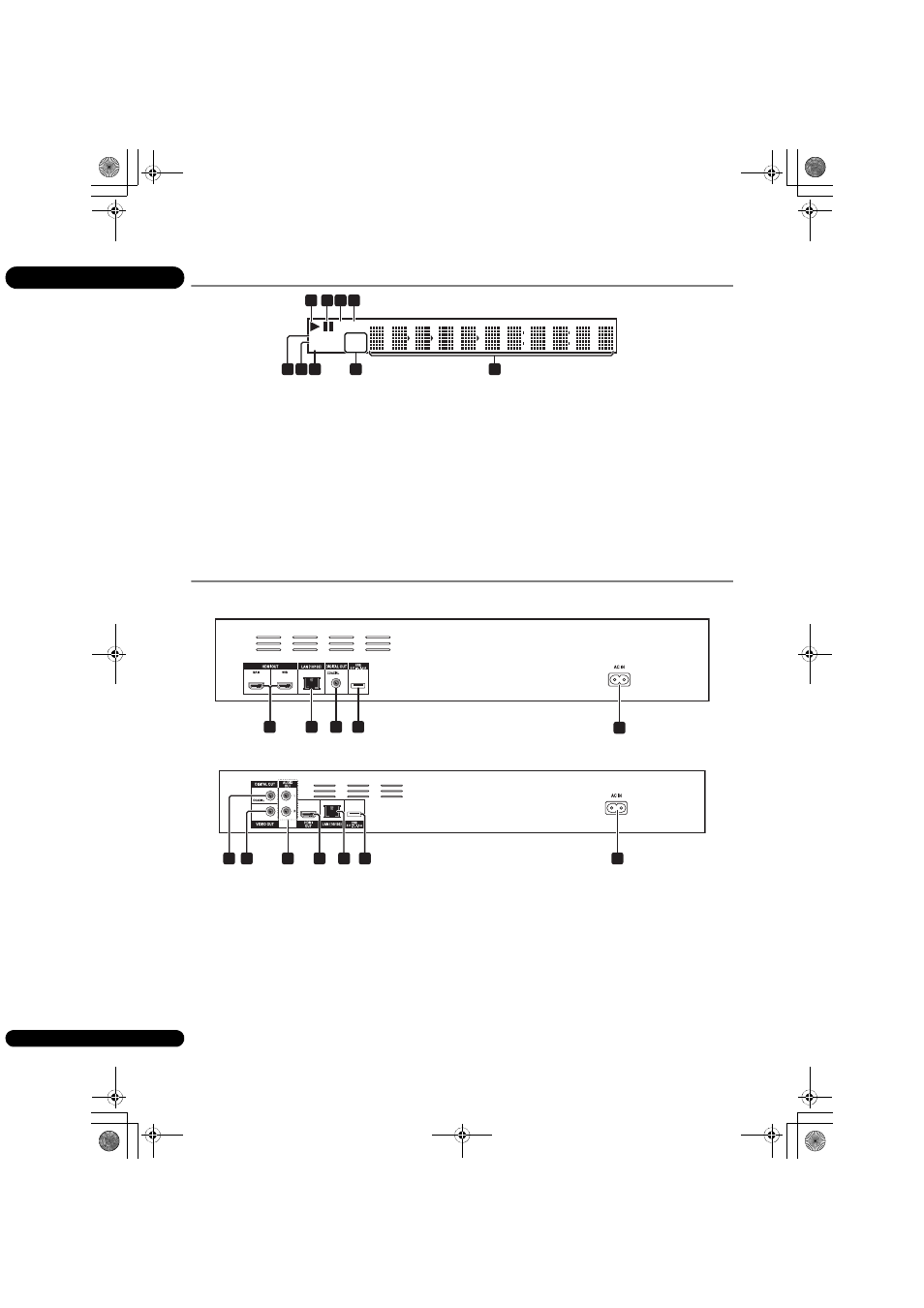

Front Panel Display (BDP-450 only)
1  – This lights during playback.
2  – This lights when pausing.
3 HD – This lights when an HDMI cable is connected
and video signals are being output with a resolution of
1080/50i, 1080/50p, 720/50p, 1080/24p, 1080/60i,
1080/60p or 720/60p.
4 LAN – This lights when connected to a network.
5 Character display – Displays the title/chapter/track
number, elapsed time, etc.
6 24HZ/50HZ/60HZ – The frequency of the video frame
or field being output lights.
7 EXT – This lights when a USB device is connected.
8 CONTROL – This lights when the Control setting is
turned on.
9 HDMI 1 2 – This lights when an HDMI device is
connected. [1] lights when the device is connected to
the
HDMI OUT (MAIN) terminal, [2] lights when the
device is connected to the HDMI OUT (SUB)
terminal.
Rear Panel
 BDP-450
 BDP-150
1 HDMI OUT terminal – (page 17)
2 LAN (10/100) terminal – (page 23)
3 DIGITAL OUT (COAXIAL) terminal – (page 22)
4 USB port – (page 22)
5 AC IN – (page 23)
6 VIDEO OUT terminal (BDP-150 only) – (page 21)
7 AUDIO OUT terminals (BDP-150 only) – (page 21)
 About the HDMI terminals on the BDP-450
MAIN – Connect with an HDMI-compatible TV or/and AV receiver or amplifier. This is the terminal that is used mainly.
SUB – Connect with an HDMI compatible AV receiver or amplifier.
LAN HD
24HZ
50HZ
60HZ HDMI 1 2
CONTROL
EXT
1
5 6 7 8 9
2 4 3
1 2 4 3 5
7 6 3 2 4 5 1
