Connections
R5976336 BARCOSLM R6 Executive 06092001
Connections :

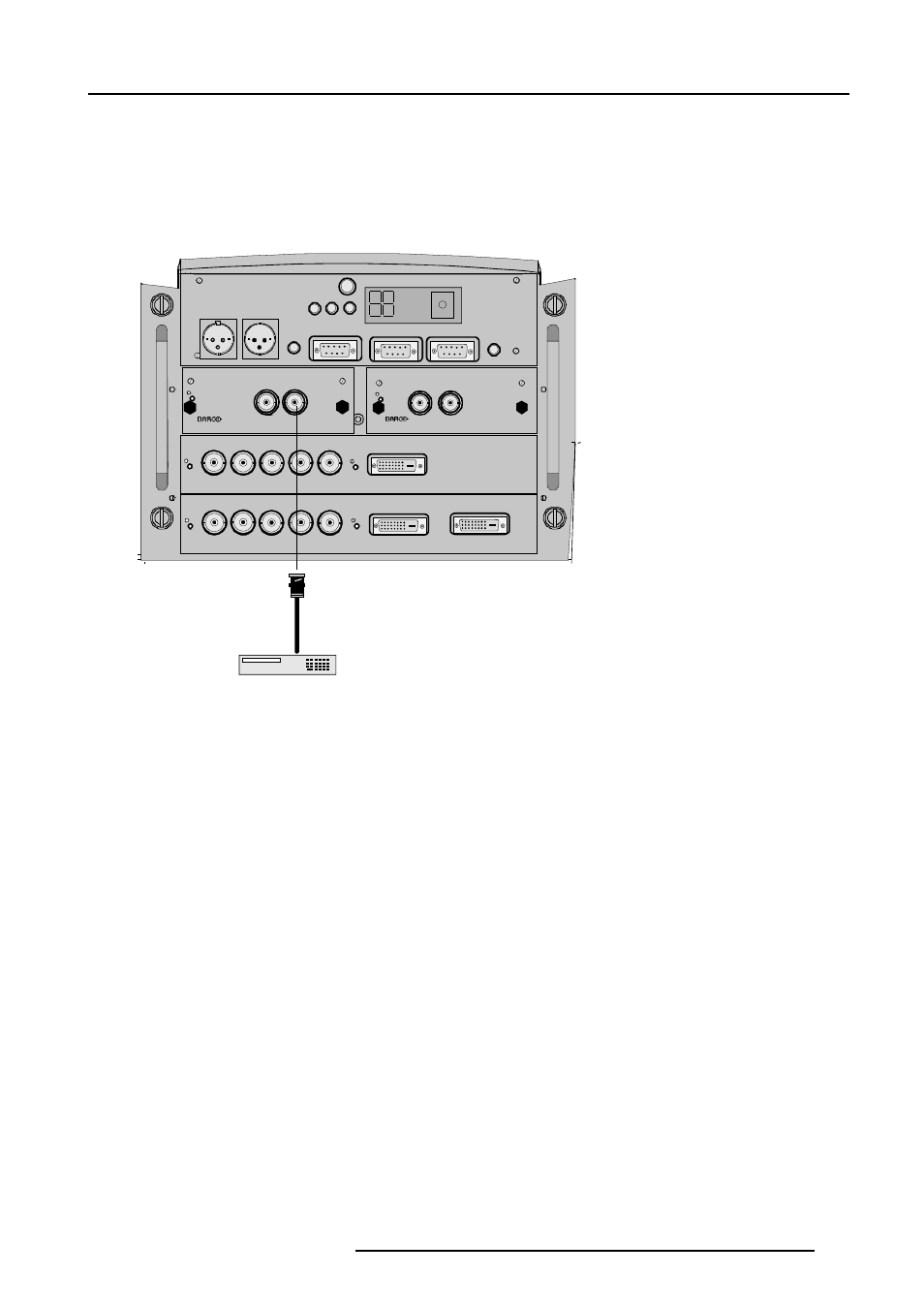

One BNC input terminal and one active loop-through BNC output terminal.
The input is always 75 ohm terminated. The output inpedance of the SDI out is 75 ohm.
How to select the Digital input :
Key in the corresponding slot number on the RCU or the local keypad.
Note : When a RCVDS05 is connected to the projector, the SDI input is available by keying in 83 or 84 on the RCU.
Optional: Serial Digital Input (slot 3 & 4)
What can be connected to this input ?
This input is full compatibility with digital Betacam, or other digital video sources.
This avoids the need for analog video processing anywhere in the video production chain and guarantees the ultimate image quality.
An active loop-through of the SDI input signal is provided for monitoring or for double and or triple stacking applications.
