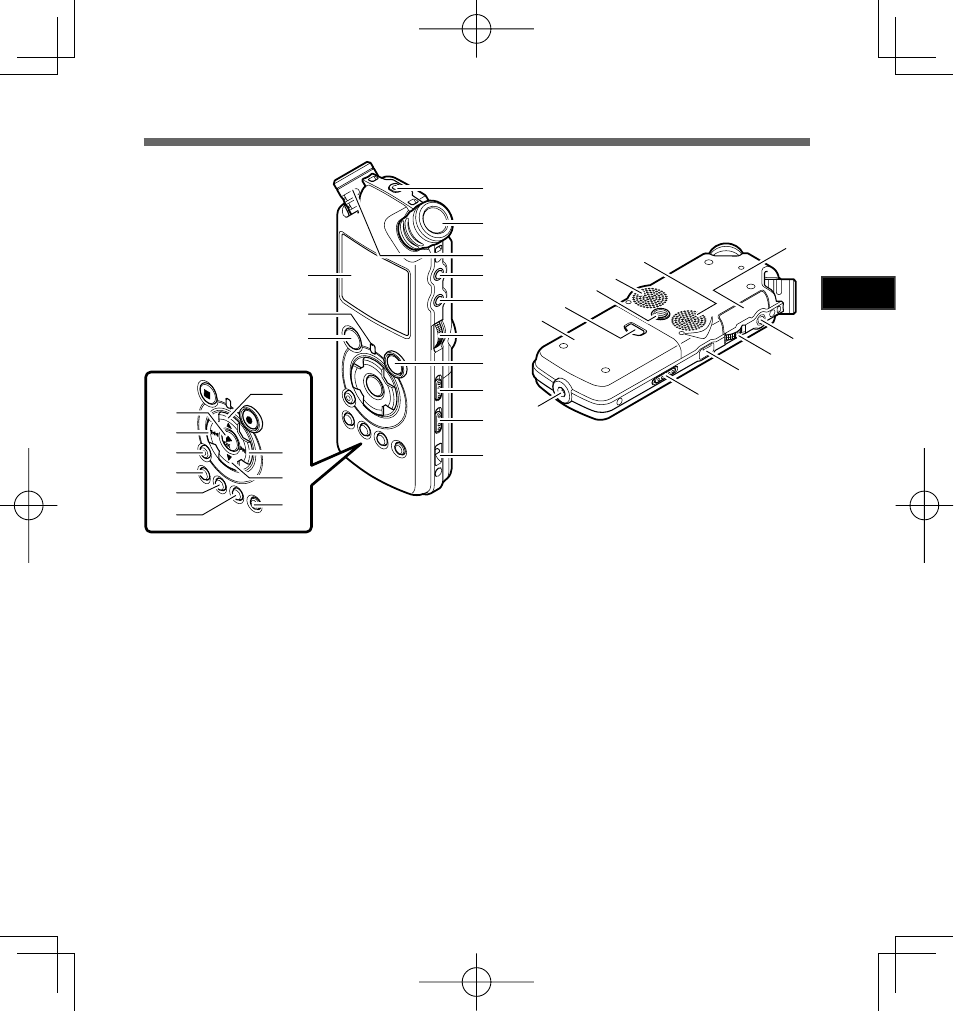

Identification of Parts
1REMOTE jack
Connect the receiver for the exclusive remote control
set RS30W (optional). This enables operation of the
main unit’s record and stop functions through the
remote control.
2Built-in stereo microphone (R)
3Built-in stereo microphone (L)
4LINE IN jack
5MIC jack
6REC LEVEL dial
7REC s button
Recording indicator light (LED)
8MIC SENSE HIGH/LOW switch
9LOW CUT ON/OFF switch (Auto Gain Control)
0 Strap hole
!Display (LCD panel)
@PEAK indicator light (LED)
#STOP 4 button
$2 button
%9 button
^3 button
&LIST button
*MENU button
(A-B REPEAT button
)Fn button
-ERASE button
=0 button
q`/OK button
wCard cover
eEAR jack R
rVOLUME dial
tUSB terminal
yPOWER/HOLD switch
uPower jack
iBattery cover
oBattery cover release button
pTripod socket
[Built-in stereo speaker (R) r
]Built-in stereo speaker (L) r
