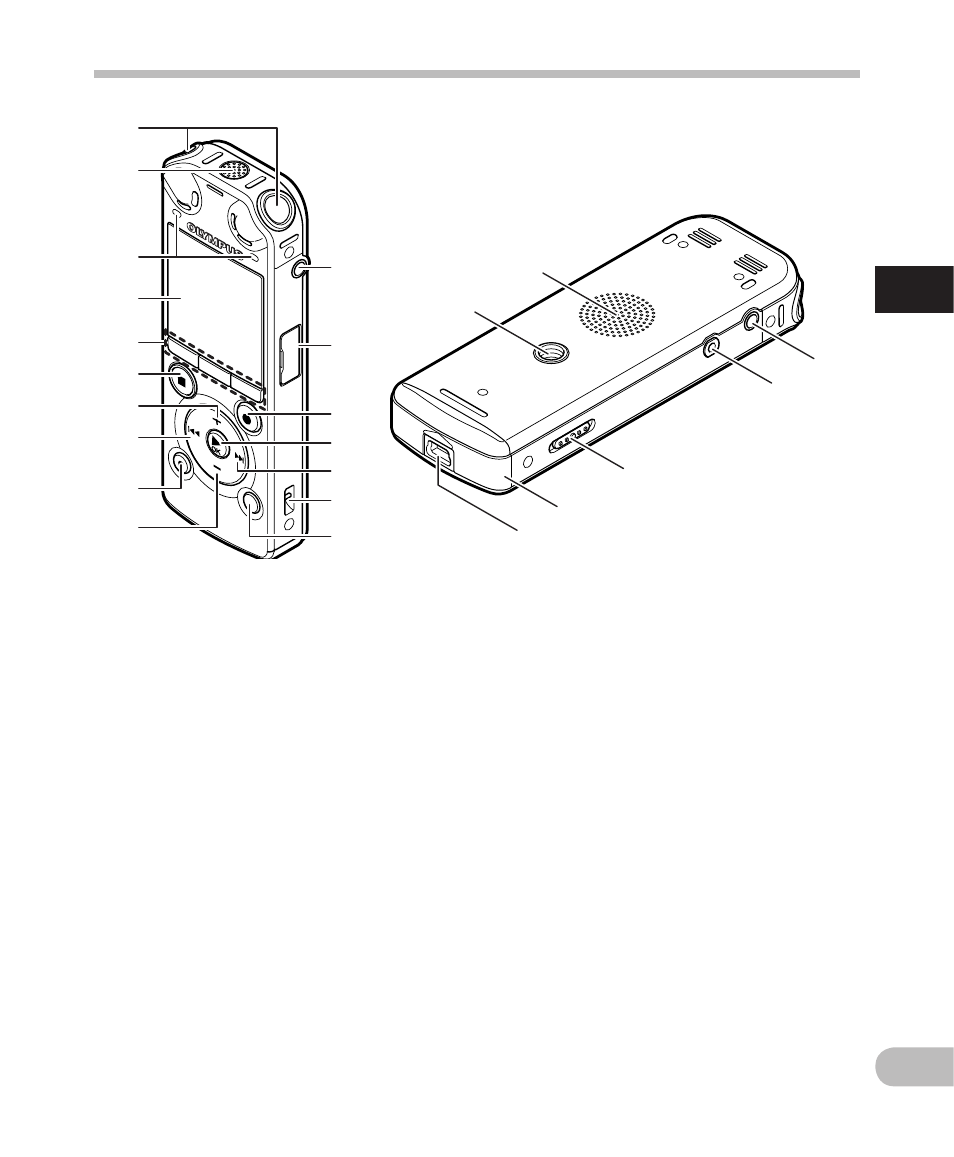

Identification of parts
1 Built-in stereo microphone (L/R)
2 Built-in center microphone
3 PEAK indicator light (LED)
LED indicator light (LED)
4 Display (LCD panel)
5 F1 button
MENU/SCENE button
F2 button
6 STOP ( 4) button
7 + button
8
0 button
9 ERASE button
0 – button
! MIC (Microphone) jack
@ Card cover
# REC (
s) (Record) button
Recording indicator light (LED)
$ `OK button
% 9 button
^ Strap hole
& LIST button
* Tripod socket
( Built-in speaker
) EAR (Earphone) jack
- REMOTE jack
Connect the receiver for the exclusive
remote control set RS30W (optional). This
enables operation of the start and stop
recording functions through the remote
control.
= POWER/HOLD switch
q Battery cover
w USB connector
*
( !
@
^
#
$
