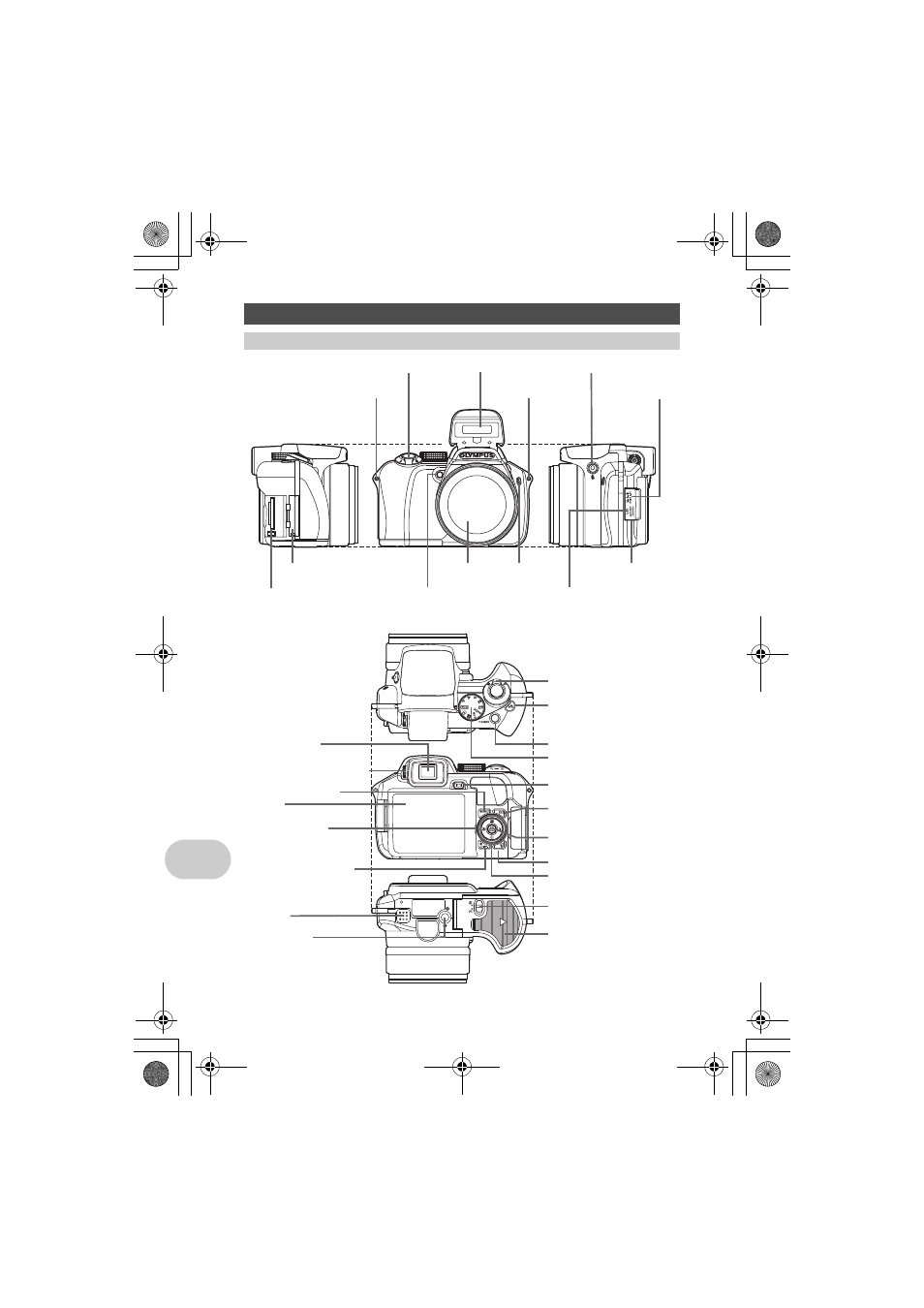

CAMERA DIAGRAM
Camera
Shutter button (P.8, P.13) Flash (P.15)
Card Slot (P.78)
Card Cover (P.78)
Self-Timer Lamp/AF Illuminator
(P.18, P.27, P.66)
Lens
Zoom Lever (P.13)
Mode Dial (P.5, P.10)
o button (P.5, P.10)
h button (Digital Image
Stabilization)/Custom button
(P.14)
# button (Flash Popup) (P.15)
DISP./E button (P.16)
Viewfinder (P.8)
m button (P.15)
Monitor
(P.41, P.89)
Tripod Socket Battery Compartment Cover
(P.4)
Battery Compartment Lock
(P.4)
Arrow Pad (P.17)
o button (OK/FUNC) (P.18)
S button (Erase) (P.16)
u button (Monitor/
Viewfinder) (P.15)
Card access lamp
(P.8, P.58, P.66)
Strap Eyelet (P.3) Strap Eyelet DC-IN jack
(P.79)
Connector Cover
(P.44, P.46, P.56)
Multi-connector
(P.44, P.46, P.56)
Microphone
Speaker
Diopter adjustment dial (P.8)
q button (P.17)/Print button
(P.47)
