3
www.bowers-wilkins.com
2. CWM6 Series Basics 1. CWM6 Carton Contents
CWM6 Series wall mount speakers comprise a
baffle carrying the speaker drivers and crossover, an
integrated frame and front flange, and a magnetically
secured grille. The frame is connected via side
mounted terminals to the speaker cables, with the
baffle connecting automatically as it is inserted in the
frame.
CWM6 Series speakers require wall aperture
dimensions described in the following table:
Model Aperture Height Aperture Width
CWM652 228mm (9 in) 153mm (6 in)
CWM663 279mm (11 in) 183mm (7.2 in)
CWM664 279mm (11 in) 183mm (7.2 in)
CWM6 Series speaker assembly (baffle, frame, grille) •
Cut-out template •
Paint mask •
Document pack containing Quick Start Guide and •
Warranty information
Environmental Information
All Bowers & Wilkins products are
designed to comply with international
directives on the Restriction of Hazardous
Substances (RoHS) in electrical and electronic
equipment and the disposal of Waste Electrical
and Electronic Equipment (WEEE). These symbols
indicate compliance and that the products must be
appropriately recycled or processed in accordance
with these directives. Consult your local waste disposal
authority for guidance.

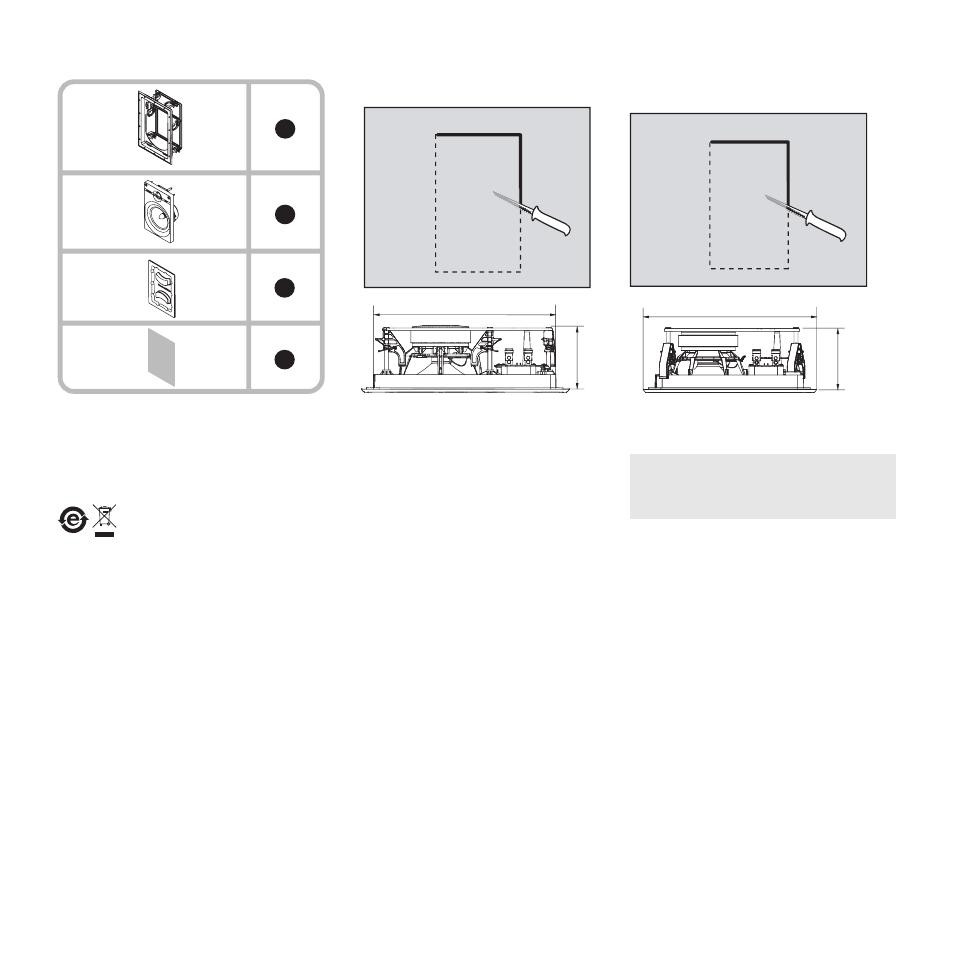

All CWM6 Series speakers require clear depth behind
the sheetrock (plasterboard) of 90mm (3.55 in). The
diagrams above illustrate these dimensions.
Note: If CWM6 Series speakers are to be installed
in “new build” projects, pre-mount kits and back
boxes are available. Contact your local Bowers &
Wilkins retailer for more information.
Before installing CWM6 Series speakers you should
ensure that the wall locations chosen are free of
obstructions such as pipe work, ducting or wiring that
will interfere with the installation. In existing dry-wall
construction, use a stud-finding tool to help you map
the wall construction and a pipe detector to scan the
proposed installation locations.
1
1
1
1
CWM663, CWM664
95mm (3.7in
)
183mm (7.2in)
279mm (11in
)
279mm (11in)
CWM652
95mm (3.7in)
153mm (6in)
228mm (9in
)
228mm (9in)
