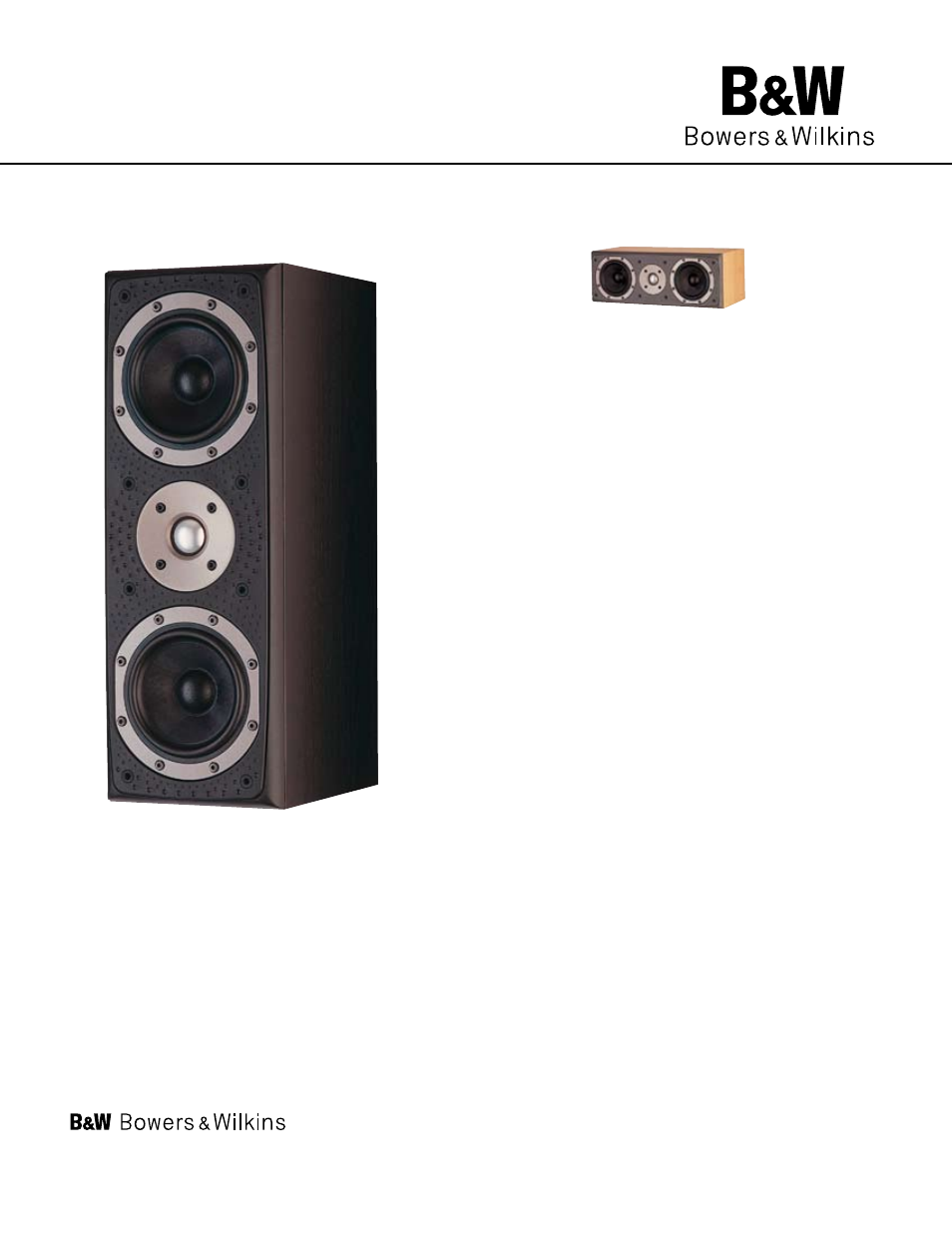

LCR3
The LCR3 has the same technological make-up as
the DM303. The product is magnetically shielded and
its symmetrical design means it can be used in either
horizontal or vertical orientation, which makes it ideal for
centre channel or other applications where the speaker
needs to be placed close to a TV. The front baffle is
moulded in inert mica filled polypropylene, which has a
subtly curved outline and is dimpled to echo the theme
of Flowport at the back; itself elegantly combined with
easy-access terminal panel that can accept all common
terminations.
Impedance: 8Ω (minimum 3.3Ω)
Dimensions: H 152mm W 418mm D 221mm
H 6” W 16.5” D 8.7”
Weight: 5 kg / 11 lbs.
Description: 2-way vented-box
centre system
Frequency range (-6dB): 60Hz and 30kHz
Power handling: 100W into 8Ω
Sensitivity: 90dB spl (2.83V, 1m)
