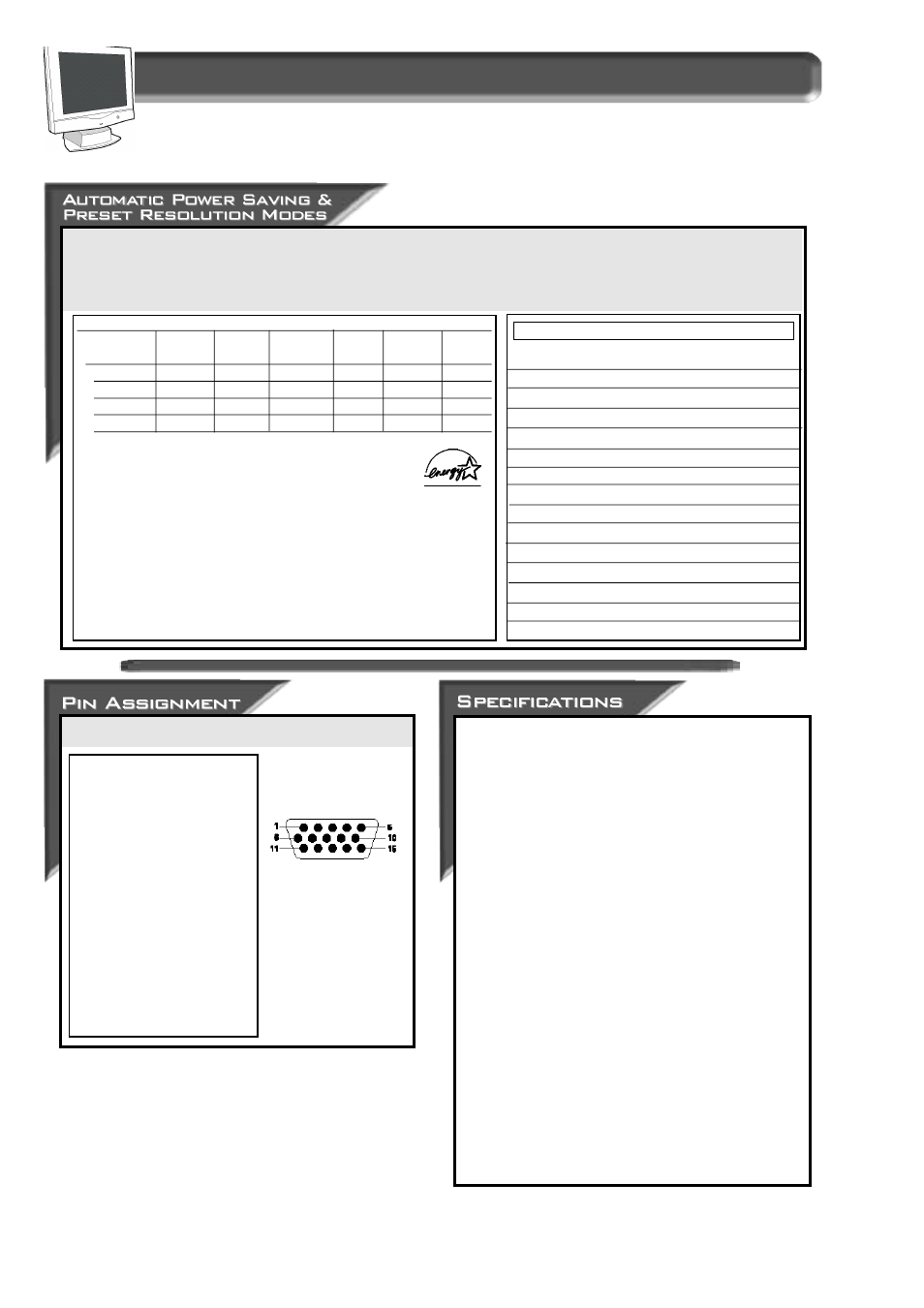

Additional informat i o n
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power
consumption when not in use. If input from a keyboard, mouse, or other device is detected, the PC & monitor automatically “wakes up.” The
table below shows the power consumption and signalling of this automatic power-saving feature. To turn this feature on and off, see page
17. The table below shows the 14 factory preset video modes.
M ODE R ESOLUTION H. F REQ . V. F REQ . S TANDARD
(K HZ ) (H Z )
1 640 x 350 31.5 70 IBM VGA
2 720 x 400 31.5 70 IBM VGA
3 640 x 480 31.5 60 IBM VGA
4 640 x 480 35.0 67 MAC
5 640 x 480 37.9 73 VESA
6 640 x 480 37.5 75 VESA
7 800 x 600 35.2 56 VESA
8 800 x 600 37.9 60 VESA
9 800 x 600 48.1 72 VESA
10 800 x 600 46.9 75 VESA
11 832 x 624 49.7 75 MAC
12 1024 x 768 48.4 60 VESA
13 1024 x 768 56.5 70 VESA
14 1024 x 768 60.0 75 VESA
Factory Preset Resolution Modes
The 15-pin D-sub connector (male) of the signal cable:
1 Red video input
2 G reen video input
3 Blue video input
4 Identical output
- connected to pin 10
5 Self test
6 Red video gro u n d
7 G reen video gro u n d
8 Blue video gro u n d
9 No pin
1 0 Logic gro u n d
1 1 Identical output
- connected to pin 10
1 2 Serial data line (SDA)
1 3 H. Sync / H+V
1 4 V. Sync (VCLK for DDC)
1 5 Data clock line (SCL)
Pin No. Assignment
D ISPLAY :15 inch
Type : Flat panel active matrix-TFT LCD
V IEWABLE I MAGE S IZE (VIS) :15 inch diagonal
(38.1 cm)
S URFACE TREATMENT :Anti-glare coating
W EIGHT ( UNPACKED ) :5.5kgs
M AXIMUM D IMENSIONS
Height :418 mm
Depth :176 mm
Width :402 mm
M AXIMUM G RAPHICS
R ESOLUTION :1024 x 768 at 75 Hz Refresh Rate
T EXT M ODE :720 x 400
D OT P ITCH :0.297 mm
H ORIZONTAL F REQUENCY :30 to 61 kHz
V ERTICAL F REQUENCY :56 to 75 Hz
E NVIRONMENTAL
R EQUIREMENTS T EMPERATURE
Operating Temperature : 41 to 95°F 5 to 35°C
Storage Temperature :-43 to 140°F -20 to 60°C
H UMIDITY ( NON - CONDENSING )
Operating :20 to 80%
Non-operating :5 to 95%
P OWER S OURCE :100-240VAC±10%,60-50Hz
(90-264VAC)
P OWER C ONSUMPTION :< 38 watt (excluding USB)
I NPUT T ERMINAL :15-pin D-type connector with cable
Mains Cord :Non-shield
Pedestal
Tilt & Swivel :-2° to 32°, +/- 30°
Power Management Definition
VESA mode Video H-sync V-sync Power Power LED
used saving(%) color
ON Active Yes Yes < 38W 0% Green
Stand-by Blanked No Yes < 5 W 86.8% Amber
Suspend Blanked Yes No < 5 W 86.8% Amber
OFF Blanked No No < 5 W 86.8% Amber
• Above power consumptions exclude USB watts.
• This monitor is E NERGY S TA R® c o m p l i a n t .
A s an E NERGY S TA R® P a rt n e r, P H I L I P S has determined that this
product meets the E NERGY S TAR® guidelines for energy efficiency.
The proper operation of the function re q u i res a computer with VESA
DPMS power management capabilities.
