Installation – Addonics Technologies ADSAIDE44 User Manual
Page 3
www.addonics.com
Technical Support (M-F 8:30am - 6:00pm PST)
Phone: 408-453-6212
Email: www.addonics.com/support/query/
Installation
1
1. 15-pin SATA Power & 7-pin Data
Connector

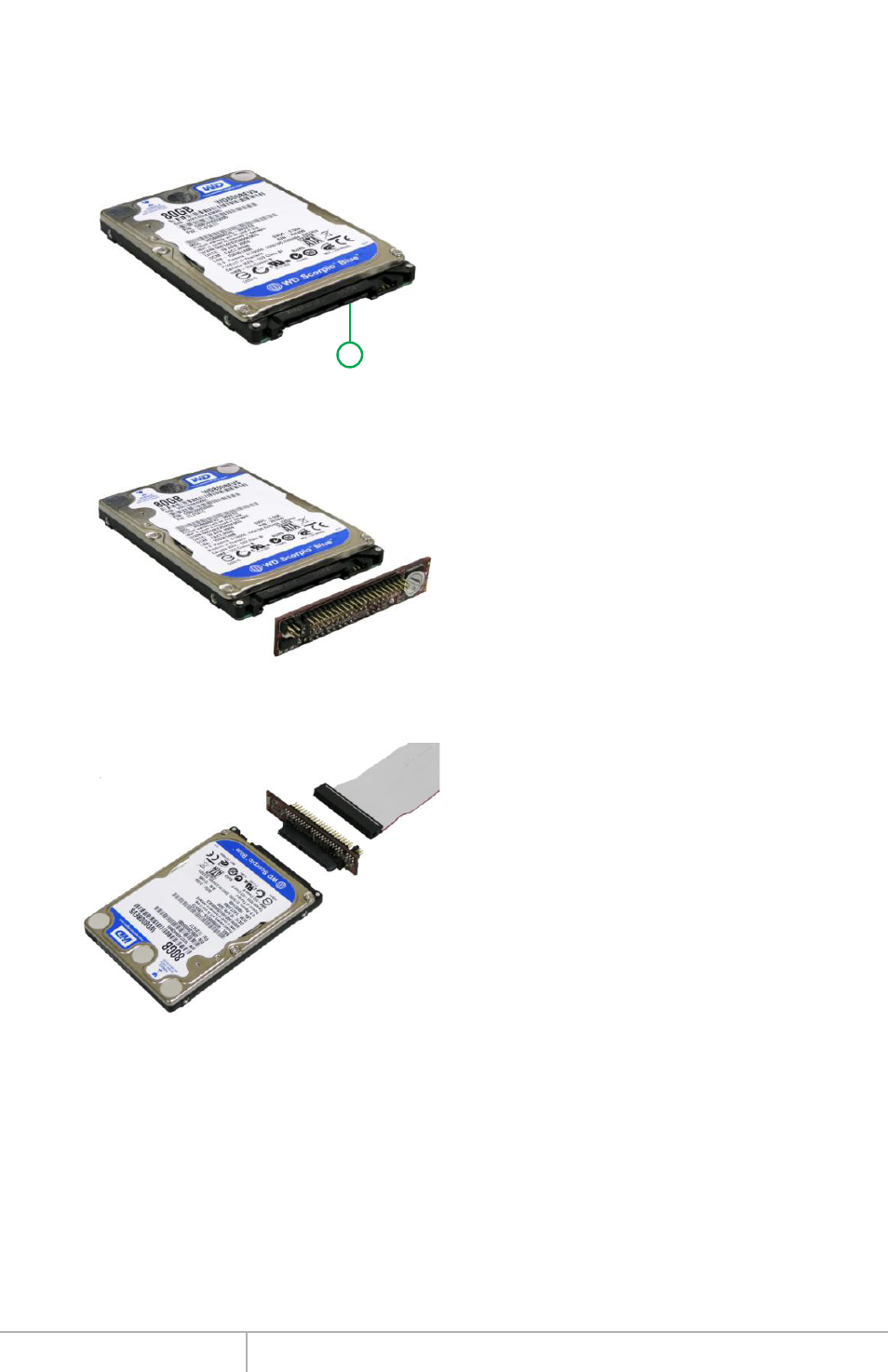

Step 1. Locate the SATA connector
of your 2.5” SATA drive.
Step 2. Connect the converter
board to the SATA connector of the
hard drive.
Step 3. (Optional) Connect the IDE
ribbon cable to the 44-pin connector
on the converter. The red edge of
the ribbon cable needs to line up to
pin 1 marker of the 44-pin connec-
tor. The other end of the ribbon
cable will be connected to your
motherboard’s 44-pin IDE channel.
