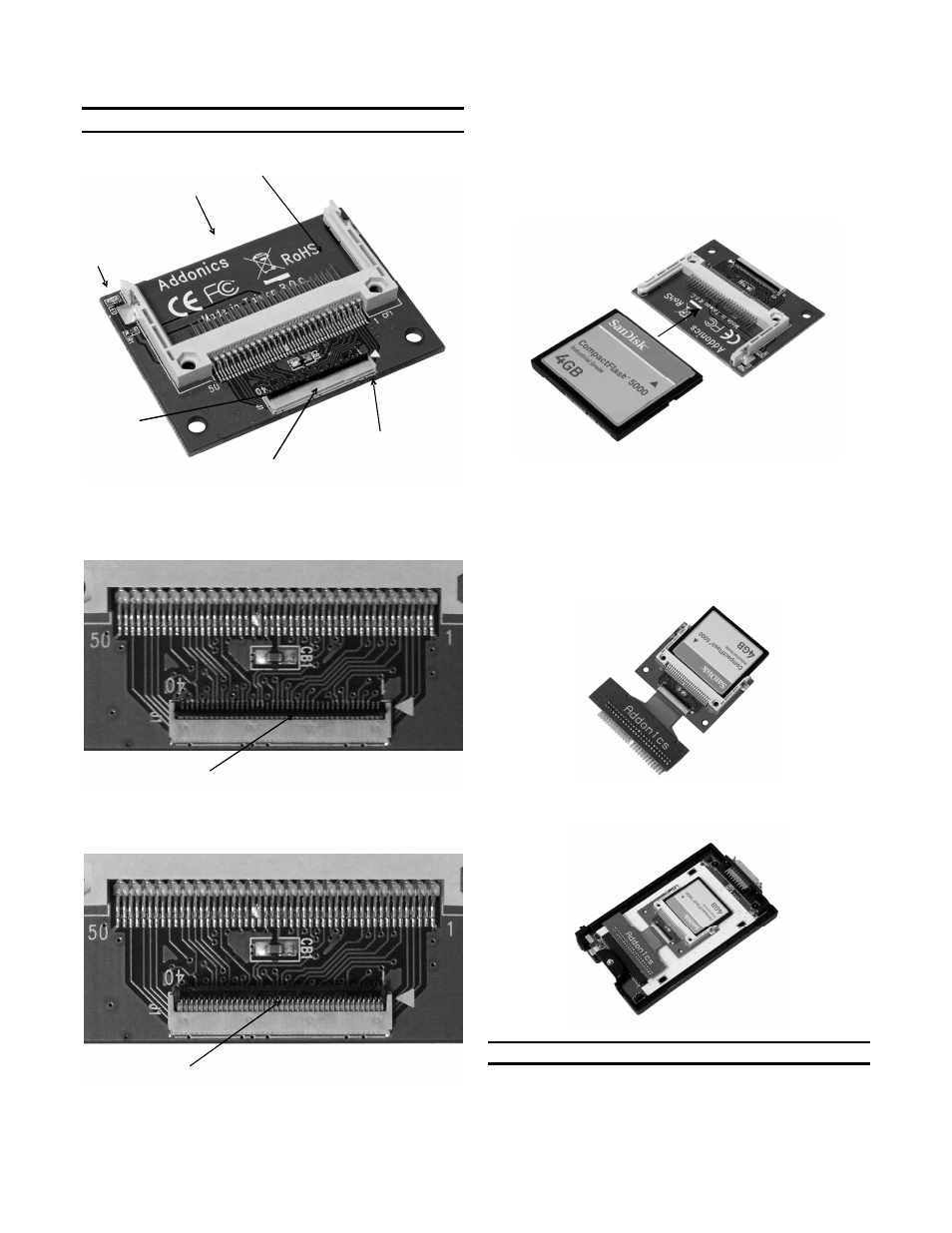

ADDONICS TECHNOLOGIES

Model: ADZIFCF

Installation Guide





Locking Mechanism on ZIF Connector

Open Position:

The locking mechanism on the ZIF connector is in the open
position if the latch faces vertical.

Close Position:


The locking mechanism on the ZIF connector is in the close
position
if the latch faces horizontal.


Note: Instructions can be found on the FAQ section.




1. Insert the desired Compact Flash into the Addonics 1.8"

ZIF - CF Adapter (ADZIFCF). The Compact Flash
should be keyed to prevent the card from being
incorrectly inserted.


2.

Put the mechanism in the open position and slide the
flat ribbon cable into the ZIF connector on the adapter.


3.

Close the latch to secure the ribbon cable connection.



1.8” ZIF- CF adapter shown below attached to a 1.8” ZIF
to 2.5” IDE converter

1.8” ZIF- CF adapter shown below connected to a 2.5”
drive enclosure

TECHNICAL SUPPORT


Email:

http://www.addonics.com/sales/query/

Internet:

http://www.addonics.com


Technical Support (8:30 am to 6:00 pm PST)
Phone: 408 433-3855
Email:

http://www.addonics.com/support/query/


Pin 1

Power and
Drive Activity
LED

ZIF connector

Pin 1

Latch

CF Slot

Latch

Latch
