ADDONICS TECHNOLOGIES

Model: ADSAHDCF

Installation Guide

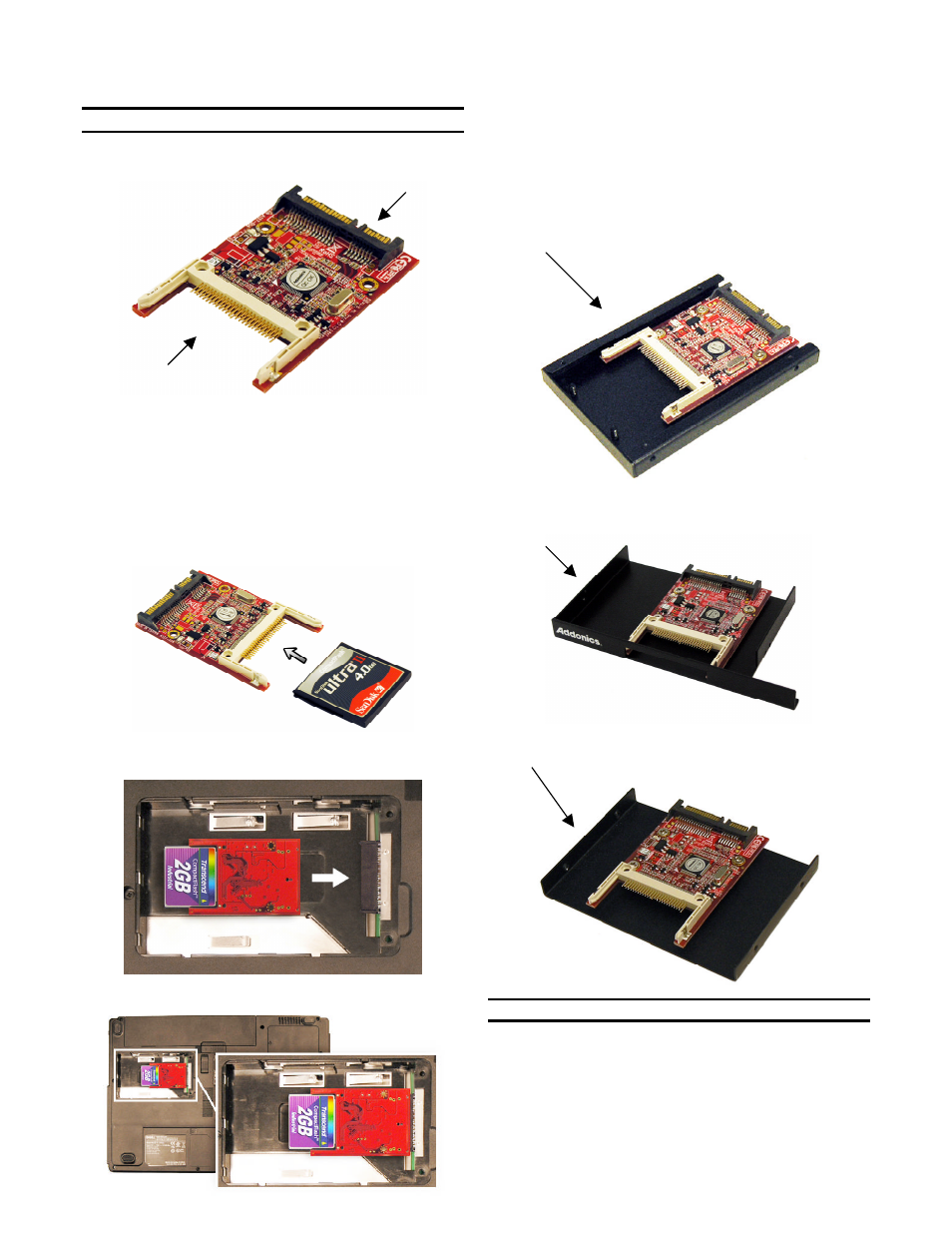

Angled View

The unique CF - SATA HDD Adapter is designed to enable
Compact Flash (CFI/II) media to be used as a direct
replacement for a 2.5" SATA hard drive. As a result, any
equipment, such as Notebook computer, that uses a 2.5"
SATA hard drive can be easily converted to use the low
power and shock resistant CF media. Once installed, the CF
appears as an ordinary hard drive to any OS and can be
configured as a boot device.

1. Slide your Compact Flash card into the adapter.

2. Take out the 2.5” hard drive of your notebook.
3. Slide the CF - SATA adapter to the SATA connector of

your laptop.

4. The CF - SATA adapter connected to your notebook.




Optional Mounting Brackets:
(shown with CF-SATA hard disk adapter installed)

2.5" hdd frame kit for ADSAHDCF
(AASHCF25HDS, silver color)
(AASHCF25HDB, black color)

slim CD mounting kit for ADSAHDCF

(

AASHCFCSB)

3.5" hdd mounting bracket for ADSAHDCF
(AA35HDBKT-SHCF)

TECHNICAL SUPPORT


Addonics Technologies

Phone: 408 433-3899

2466 Kruse Drive

Fax:

408 433-3898

San Jose CA 95131
Email:

http://www.addonics.com/sales/query/

Internet:

http://www.addonics.com


Technical Support (8:30 am to 6:00 pm PST)
Phone: 408 433-3855
Email:

http://www.addonics.com/support/query/

SATA Interface

CF Connector
