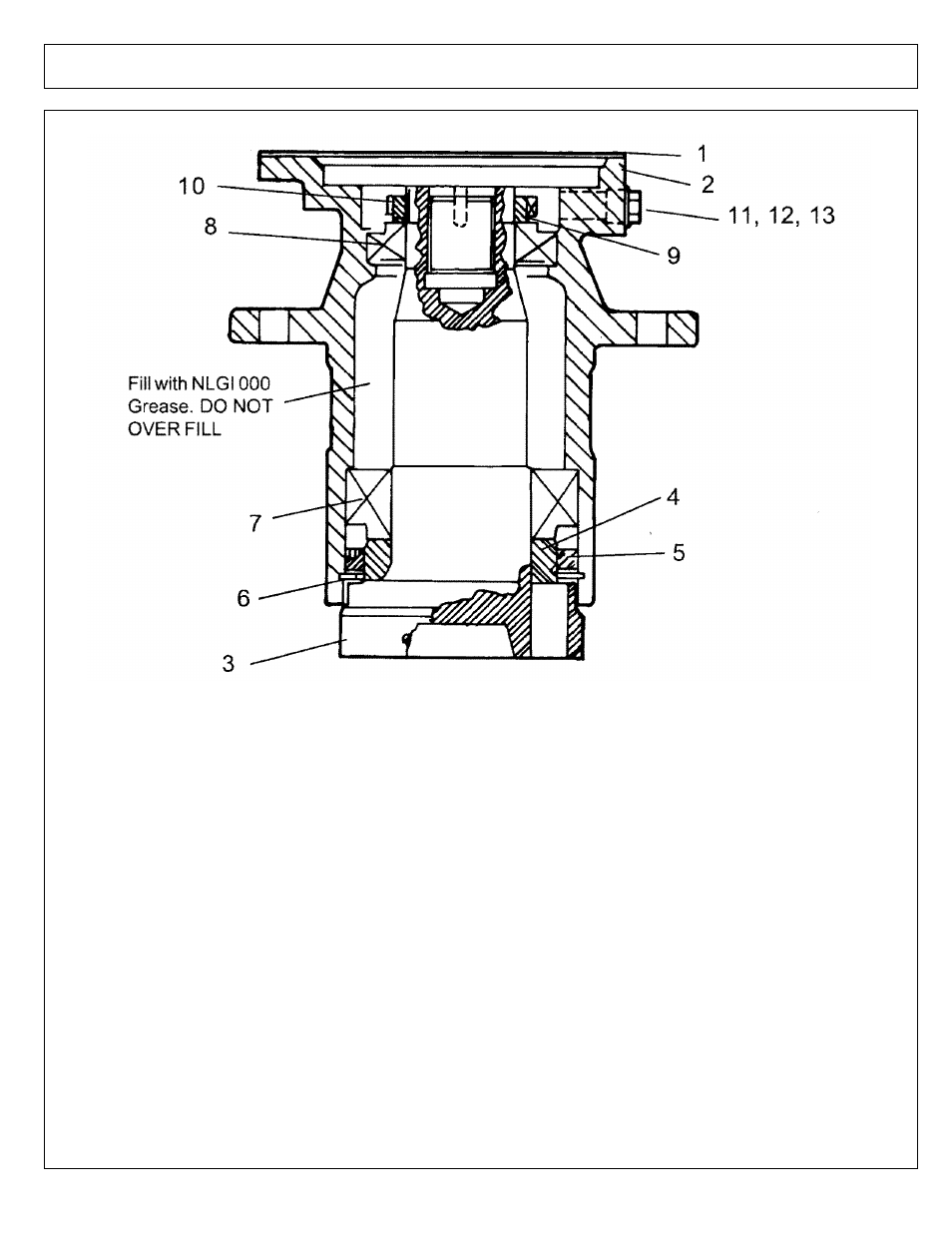

28 FT - SPINDLE ASY (ROTARY HEAD) - PN 02960553C

ITEM

PART NO. QTY.

DESCRIPTION

02960553C

-

SPINDLE ASY. COMPLETE

1

02961038

1

GASKET

2

02960562C

1

SPINDLE HOUSING

3

02960561

1

SPINDLE SHAFT

4

02960558

1

BEARING RING

5

02960559

1

SEAL

6

00754627

1

SNAP RING

7

02960557

1

BEARING ASY, CUP & CONE (LOWER)

8

00755628

1

BEARING ASY, CUP & CONE (UPPER)

9

02964269

1

LOCKING WASHER

10

02962030

1

BEARING ADJUSTING NUT

11

00755633

1

PLUG

12

02959860

1

PRESSURE RELIEF PLUG

13

00751731

1

REDUCER
