Alamo 4837 - Manual (Page 126)

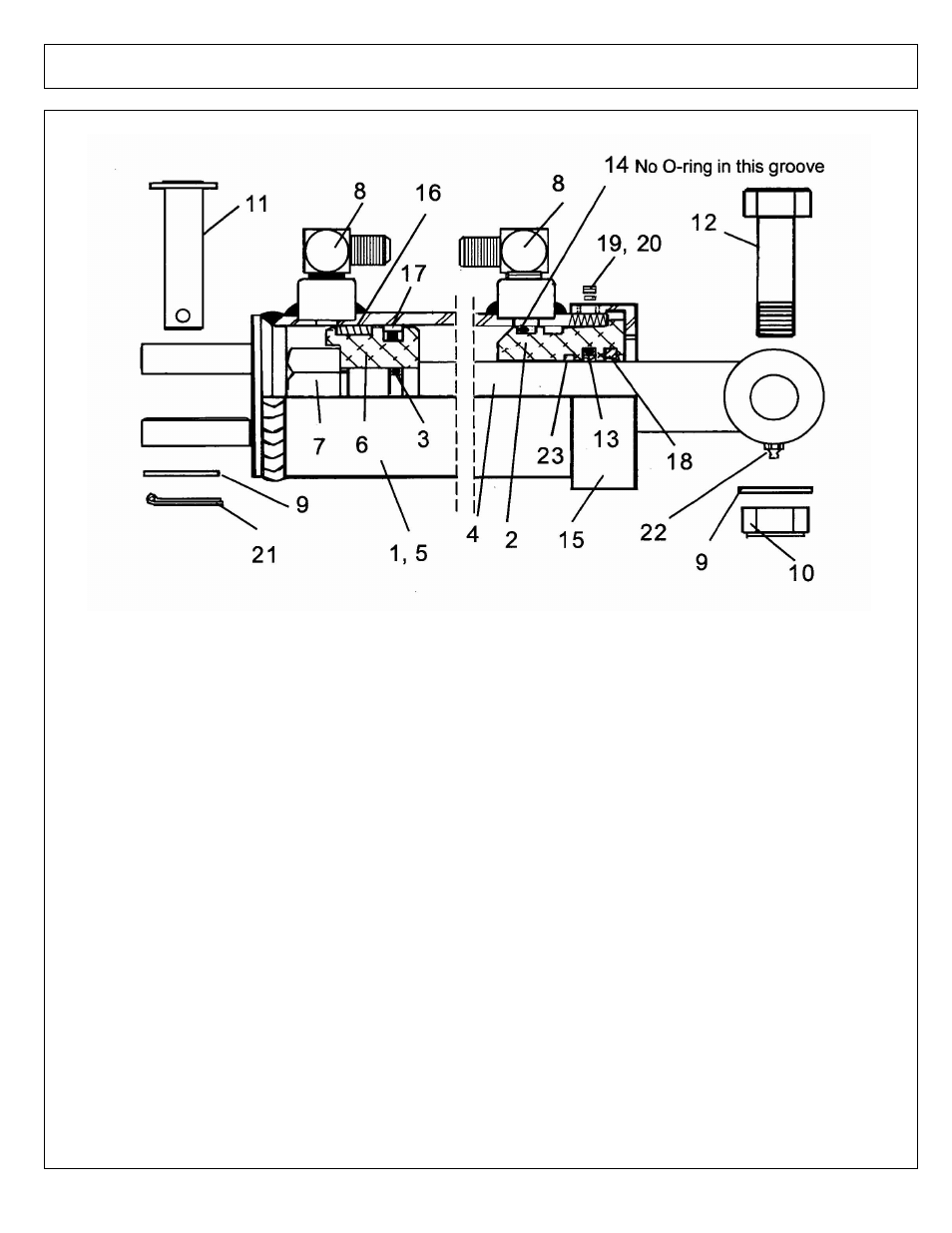

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (03-00 & DOWN)
ITEM PART NO. QTY. DESCRIPTION
02222000 - CYLINDER ASY, W/ FITTINGS (ITEM 1 THRU 24)
1 02222100A 1 CYLINDER ASY, W/O FITTINGS (ITEM 2 TO 7 & 13 TO 24) REPLACED W/ P/N 02222100A (04-00 & UP)
2 ------------ 1 CYLINDER HEAD, GLAND (NOT AVAILABLE)
3 * 1 O-RING, (IN ITEM 24)
4 02960573 1 ROD WLDMNT
5 02957426 1 BARREL WLDMNT
6 02957425 1 PISTON
7 02252400 1 LOCKNUT
8 02962249 2 ELBOW
9 00749946 - WASHER
10 02030300 - LOCKNUT
11 02960049 - PIN WLDMNT
12 02956972 - BOLT
13 * 1 ROD SEAL (IN ITEM 24)
14 * 1 GLAND STATIC SEAL (IN ITEM 24)
15 02962603 1 COLLAR
16 * 1 WEAR RING (IN ITEM 24)
17 * 1 PISTON SEAL, 2 PIECES (IN ITEM 24)
18 * 1 ROD WIPER (IN ITEM 24)
19 02962169 1 SETSCREW
©2011 Alamo Group Inc. Parts Section -123
A-BOOM (04-04) SN 04837 - UP Rev 01-11
