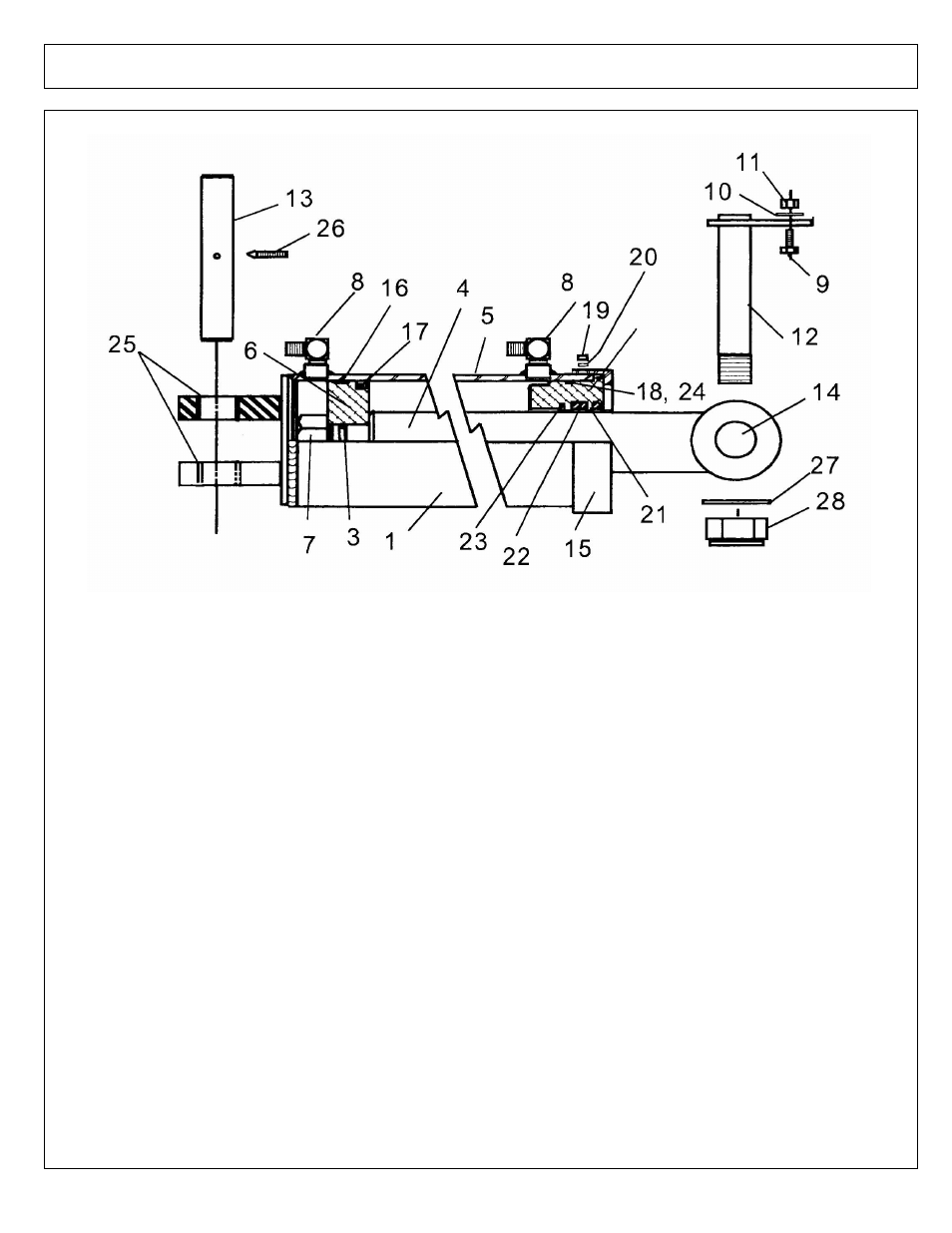

HYD CYL ASY - DIPPER (20-23 FT) - PN 02961780T
ITEM PART NO. QTY. DESCRIPTION
02961780T - CYLINDER ASY, W/FITTINGS (ITEM 1,8,14,25 & 26)
1 02961482A 1 CYLINDER ASY, W/O FITTINGS (ITEM 2,3,4,5,6,7,8,14,19,20,25,2 & 29)
2 ------------ 1 CYLINDER HEAD, GLAND (NOT AVAILABLE)
3 * 1 O-RING
4 02967042 1 ROD WLDMNT
5 ----------- 1 BARREL WLDMNT (NOT AVAILABLE)
6 02962131 1 PISTON
7 02252400 1 LOCKNUT
8 02960018 2 ELBOW
9 00007000 - BOLT
10 00011100 - FLATWASHER
11 00015800 - NUT
12 02969980 - PIN
13 02967013 - PIN
14 02965548 2 BUSHING
15 02962129 1 COLLAR
16 * 1 WEAR RING (IN ITEM 29)
17 * 1 PISTON SEAL (IN ITEM 29)
18 * 1 O-RING (IN ITEM 29)
19 02962169 1 SETSCREW
20 02962170 1 NYLON INSERT
