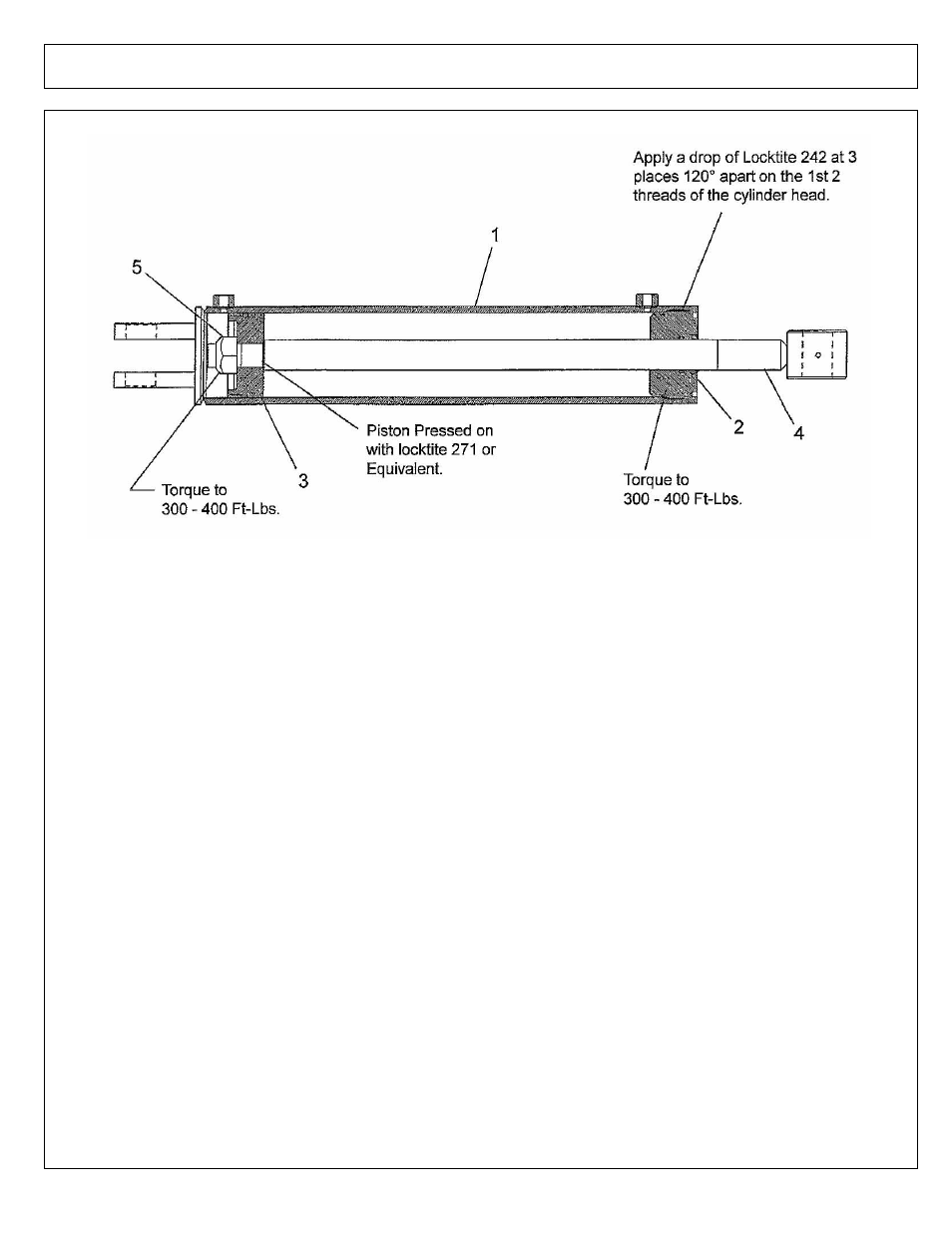

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (04-00 & UP)
ITEM PART NO. QTY. DESCRIPTION
02222000 - CYLINDER ASY, W/ FITTINGS
02222100A - CYLINDER ASY, W/O FITTINGS - REPLACED P/N 02222100 (03-00 & DOWN)
1 02976181 1 TUBE WLDMT 4.00 - 16.00 STROKE
2 02976182 1 CYLINDER HEAD 4 X 1.5 ROD W/
3 02975457 1 PISTON 4.00-1.25-S-W-PSP
4 02976180 1 ROD WLDMT 1.5 X 16.00 STROKE
00752670 1 GREASE FITTING 1/4-28 BOLT THD
5 02975453 1 LOCKNUT, 1-1/4" NF GRB
6 02975527 - SEAL KIT
7 02960049 1 PIN-WLDMT - DIPPER CYL
8 02962249 2 ADAPTER, HYD, ELBOW
9 00749946 2 WASHER
10 00606000 1 COTTER PIN
11 02030300 1 LOCKNUT
12 02956972 1 BOLT, 1" NC 9 GR8
©2011 Alamo Group Inc. Parts Section -125
A-BOOM (04-04) SN 04837 - UP Rev 01-11
