EKI-2525M & 2526M User Manual-V2.1-051507 22
Appendix A Pin Assignment & Wiring
It is suggested to adopt ELA/TIA as the wiring of the RJ-45.

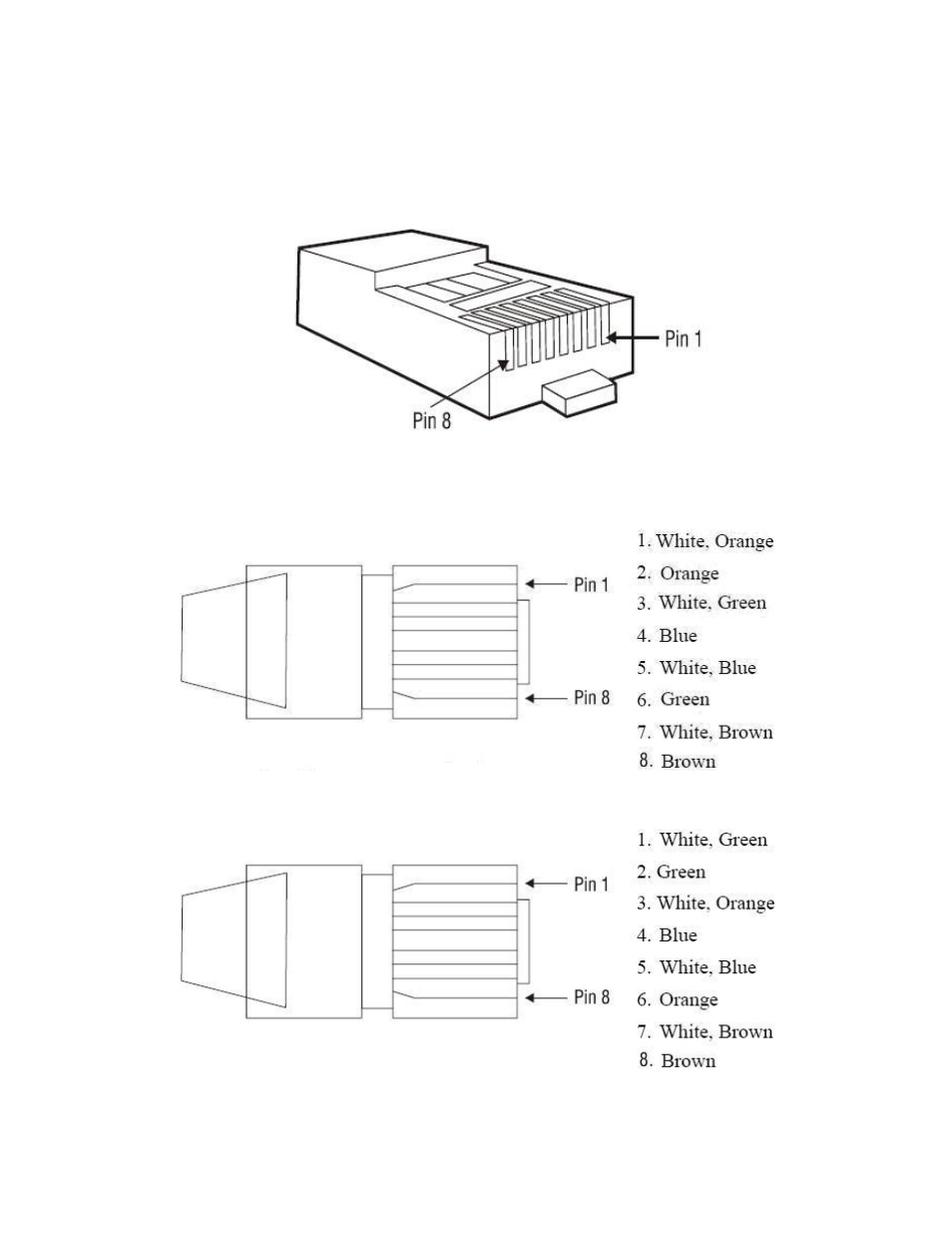

Figure A.1: RJ-45 Pin Assignment
Figure A.2: EIA/TIA-568B
Figure A.2: EIA/TIA-568A
