13 Chapter2
2.3 Mounting
The EKI-2525M/2526M supports two mounting methods: DIN-rail & Wall.
2.3.1 Wall mounting
EKI-2525M/2526M can be wall-mounted by using the included mounting kit. Then,
hang on the EKI-2525M/2526M to the nails on the wall.
First, use the screws included in the package to combine the EKI-2525M/2526M and
metal mounting kit. And then you can install the device firmly via the components,
please see Figure 2.5 as below.

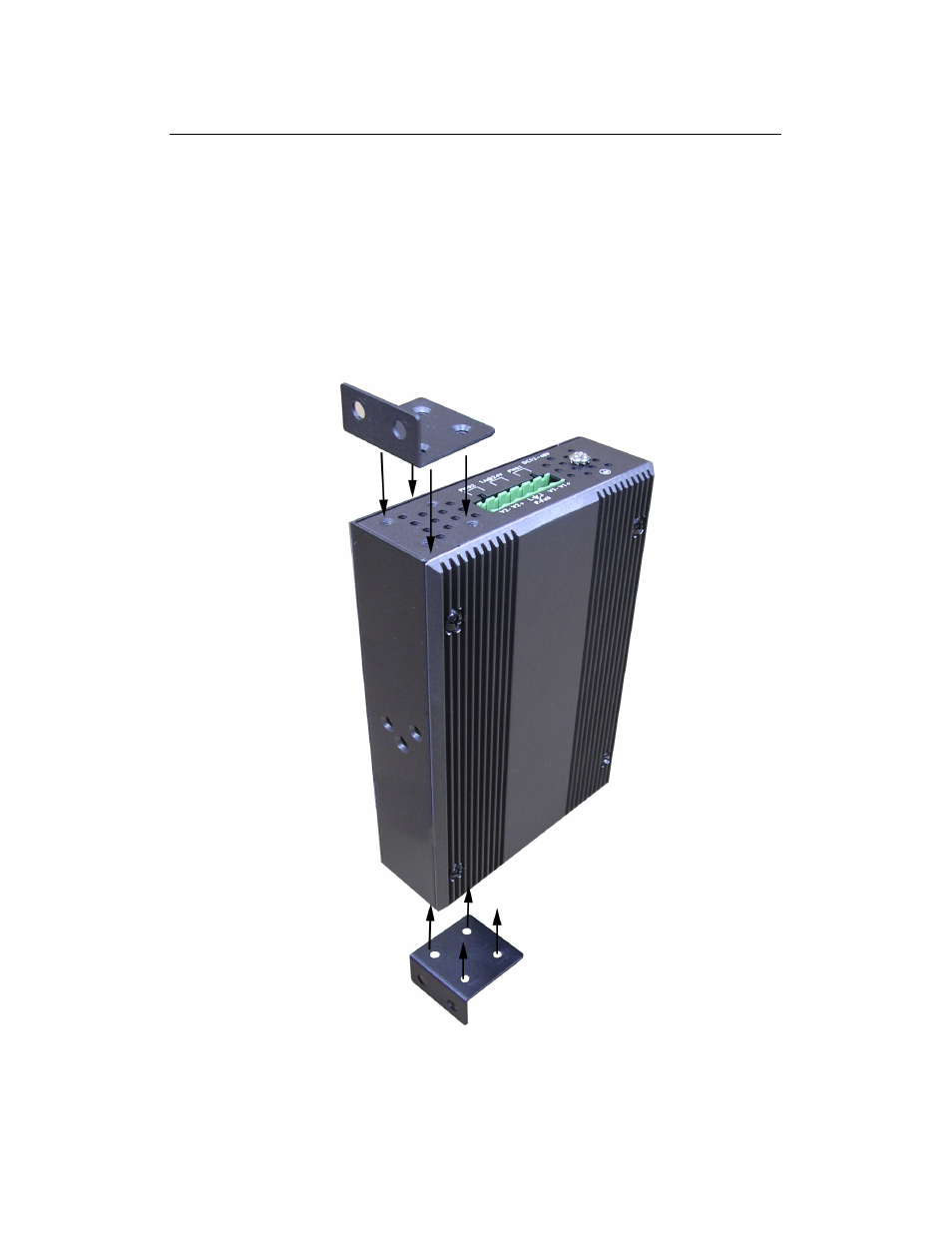

Figure 2.5: Combine the Metal Mounting Kit
