EKI-2525M & 2526M User Manual-V2.1-051507 16
2.4 Network Connection
The EKI-2525M or EKI-2526M has the SC type fiber port in multi mode (2Km). When

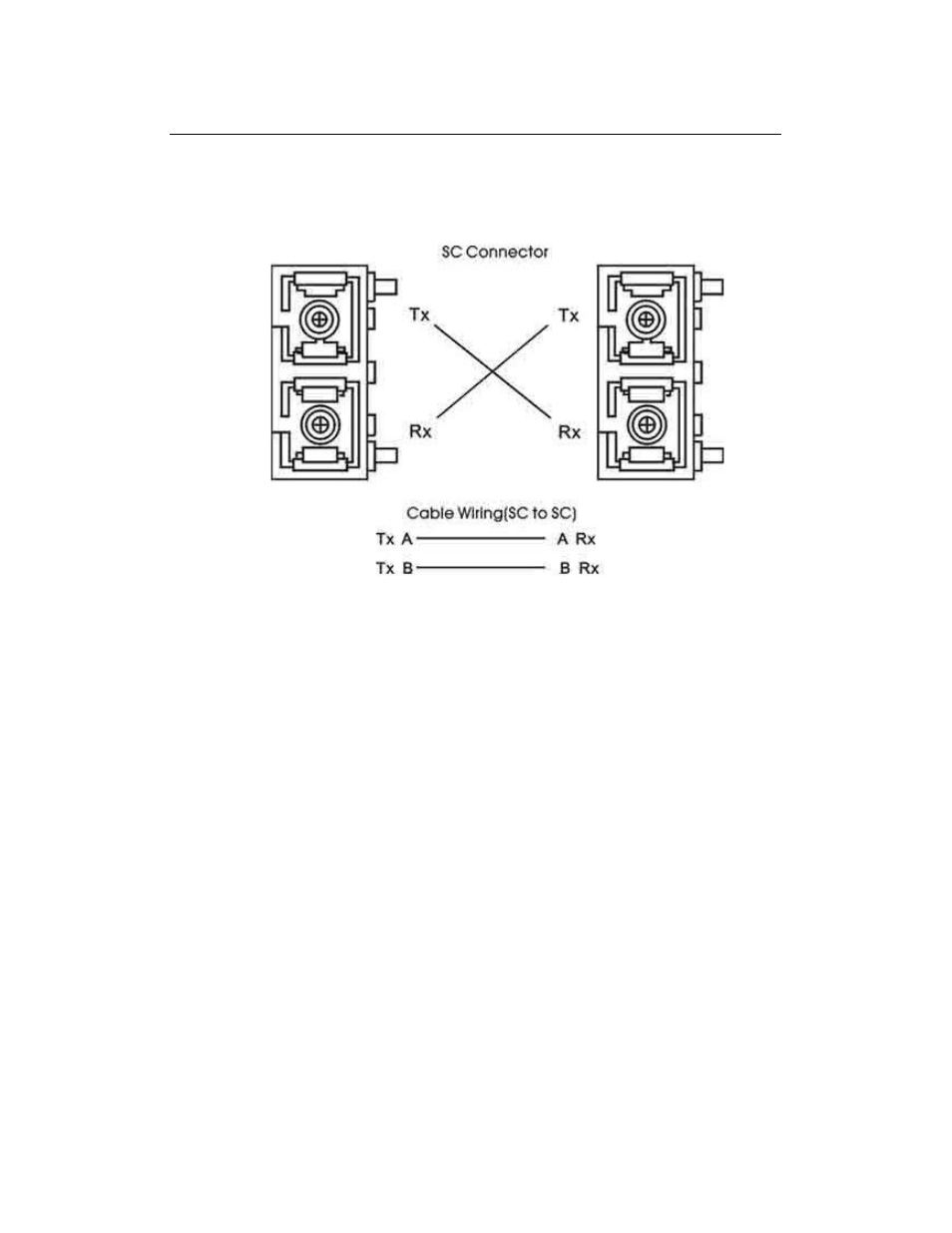

you connect the fiber port to another one, please follow the below figure to connect it.
Wrong connection will not allow the port to work normally.
Figure 2.8: Pin Assignment of the Power Connector
Attention
This is a Class 1 Laser/LED product. Don’t stare into the Laser/LED Beam.
The EKI-2525M and EKI-2526M both have 4 x RJ-45 ports that support connection to
10 Mbps Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI-
2525M/2526M can be connected to other hubs or switches through a twisted-pair
straight through the cable or a crossover cable up to 100m long. The connection can
be made from any TX port of the EKI-2525M/2526M (MDI-X) to another hub or switch
either MDI-X or uplink MDI port.
The EKI-2525M/2526M supports auto-crossover to make networking more easy and
flexible. You can connect any RJ-45 (MDI-X) station port on the switch to any device
such as a switch, bridge or router.
