2.3.2 DIN-rail Mounting
You can also mount EKI-2525M/2526M on a standard DIN-rail by below steps.
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit
is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first.

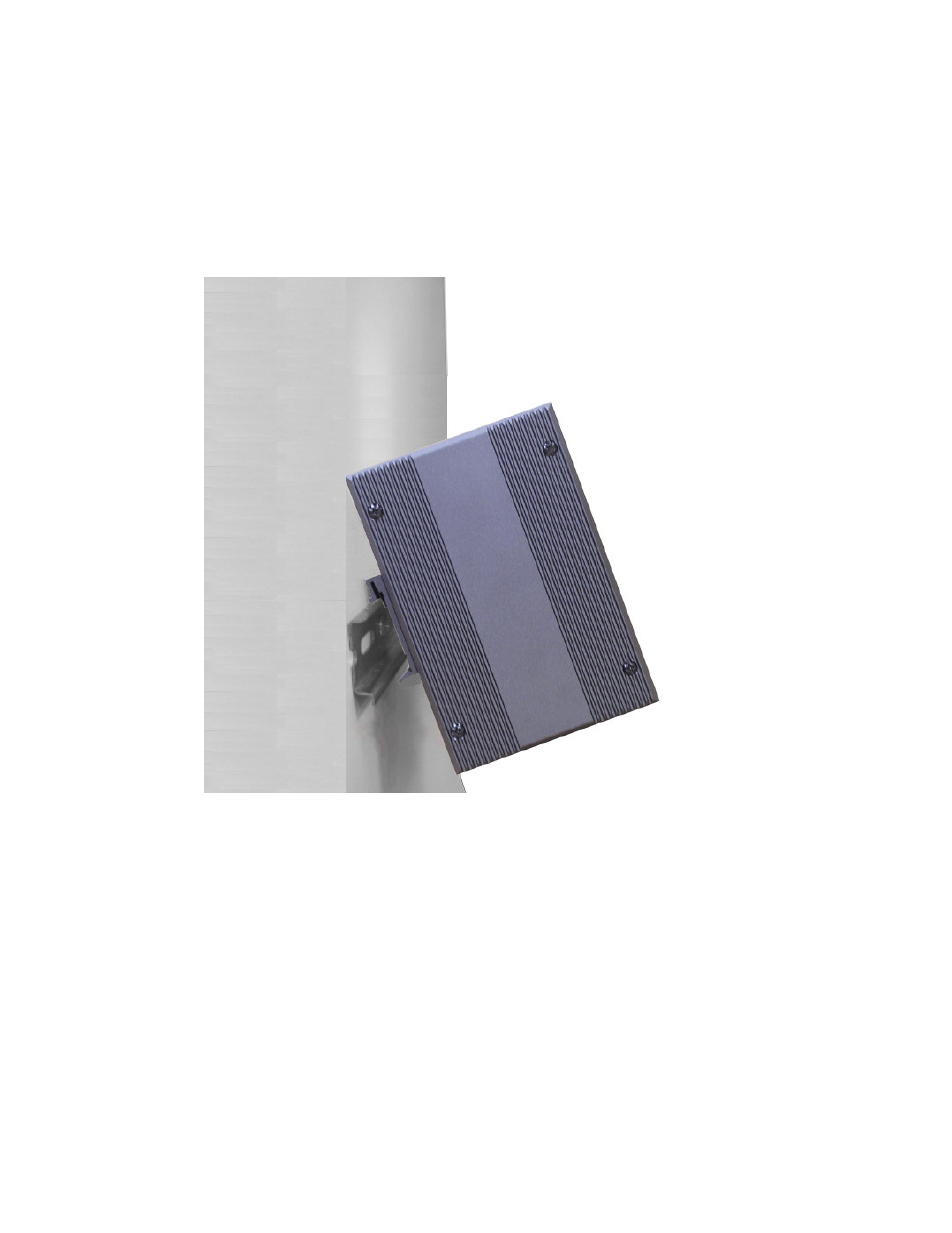

First, hang the EKI-2525M/2526M to the DIN-rail with angle of inclination. See figure
2.6.
Figure 2.6: Installation to DIN-rail Step 1
