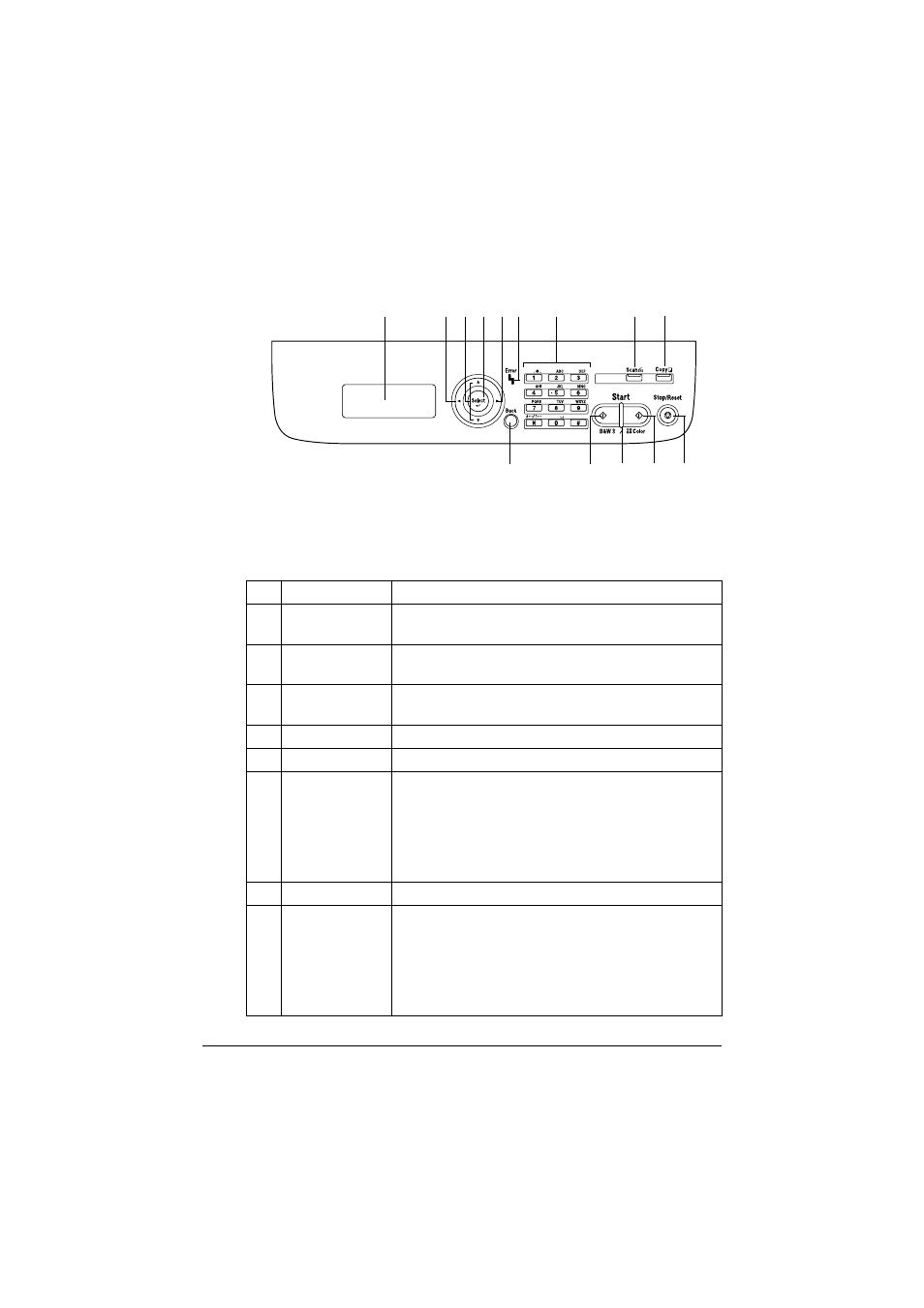

About the Control Panel 2-2
About the Control Panel
Control Panel Indicators and Keys
No. Name Function
1 Message win-
dow Displays settings, menus, and messages.
2 + /, keys Moves up and down through menus, options, or
choices.
3 * /) keys Moves left and right through menus, options, or
choices.
4 Select key Press to select the setting that is currently displayed.
5 Error indicator Indicates an error condition.
6 Back key Clears the specified number of copies and entered
text.
Press to return to the previous screen.
Press to cancel the setting that is currently dis-
played.
7 Keypad Enters desired number of copies.
8 Scan key/LED Enters Scan mode. (Scan to PC)
Lights up in green to indicate that the machine is in
Scan mode.
For details on the Scanner functions, refer to chapter
6, “Using the Scanner”
