Aspire Digital 5534 - Manual (Page 189)

Chapter 6 179

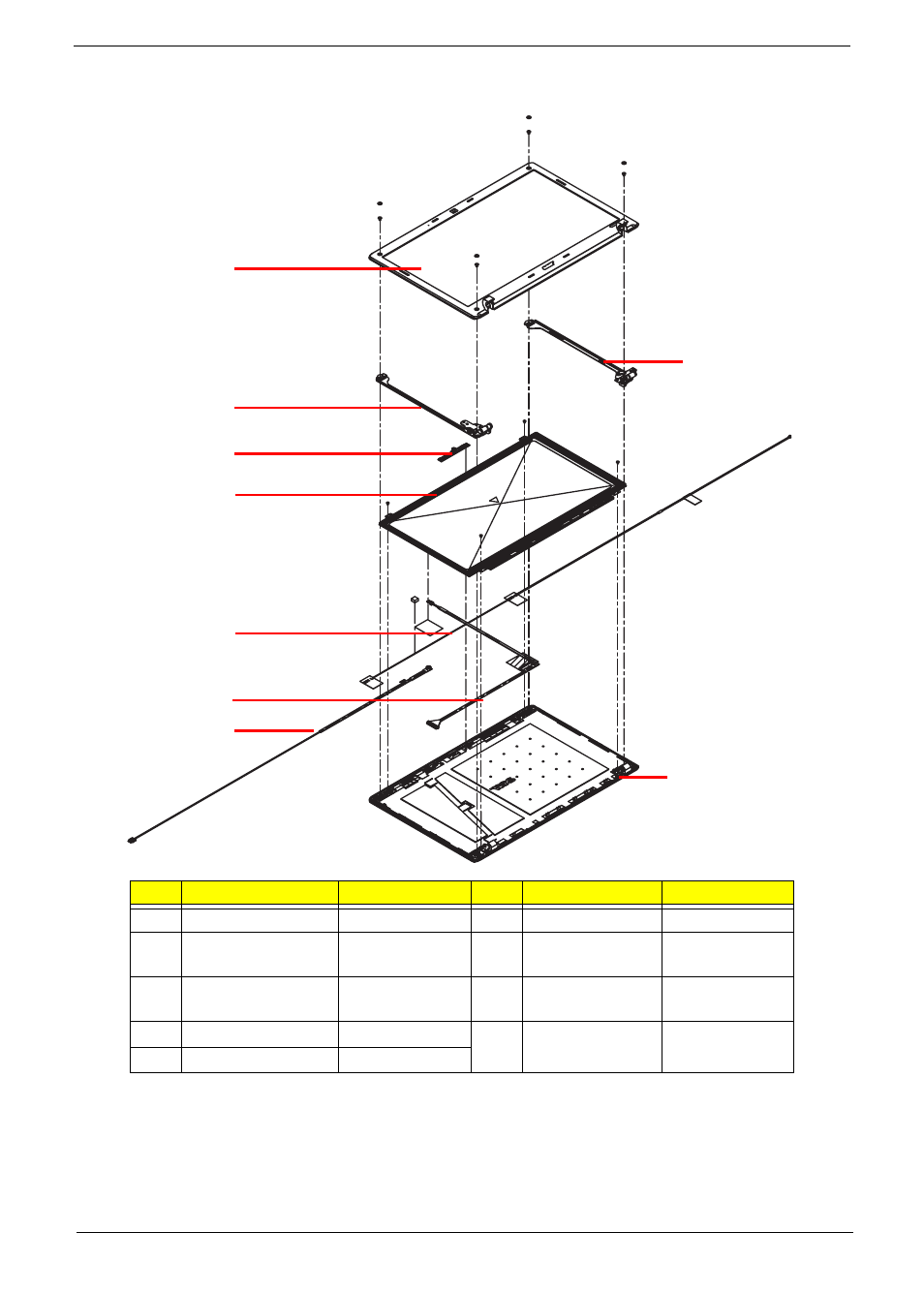

LCD Assembly
No. Description P/N No. Description P/N
1 LCD Bezel 60.PJU02.001 6 LVDS Cable 50.PEA02.004
2 Left LCD Bracket 33.PEA02.005 7 Microphone and
cable 23.PEA02.002
3 Camera 57.N6802.001 8 Right LCD
bracket 33.PEA02.005
4 LCD Panel LK.15605.004 9 LCD Cover 60.PJV02.002
5 WLAN Antenna 50.PEA02.005
1
2
4
5
6
7
9
8
3
