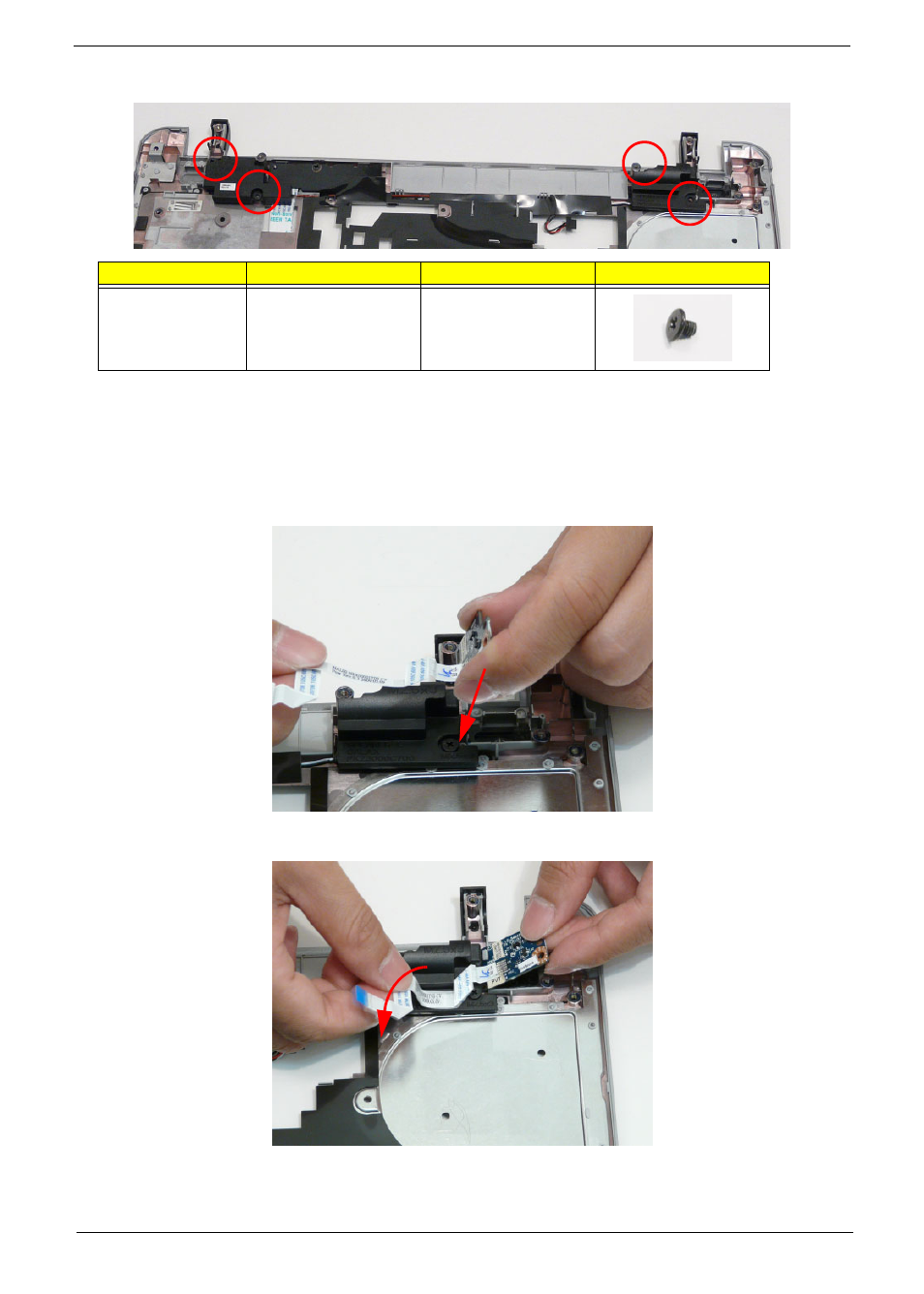

4. Insert the four screws to secure the Speakers to the Upper Cover.
Replacing the Power Board
1. Insert the Power Board into the Lower Cover so the slot on the Power Board hooks onto the securing tab
in the upper cover.
IMPORTANT:The FFC is soldered to the power board. Take care when lifting to minimize bending of the
connection, lest breakage occur.
2. Adhere the FFC to the Speaker Module.
Step Size Quantity Screw Type
Speaker Module M2.5*3 4
