Backplane for up to sixteen 2.5-inch drives

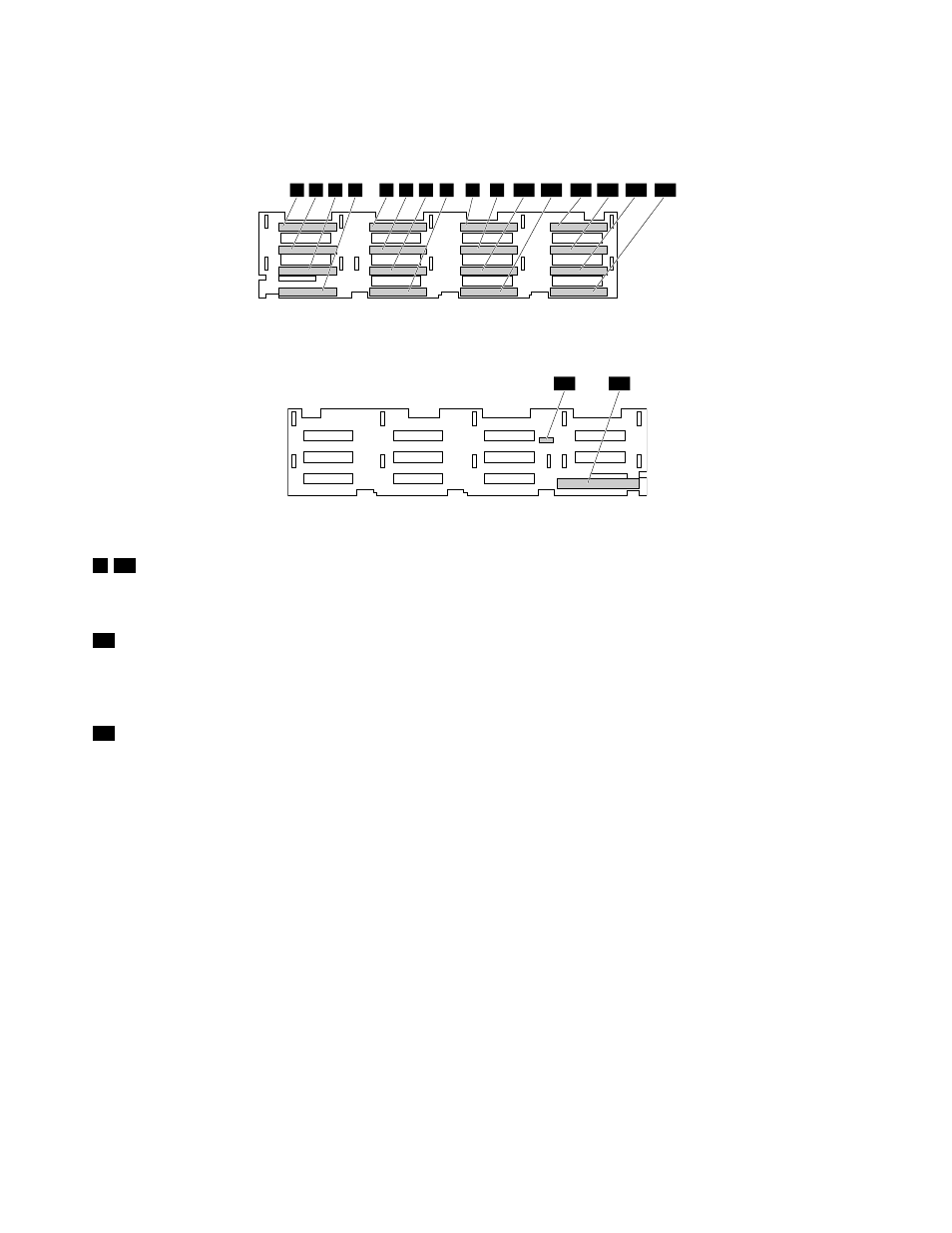

The following illustrations show the slots and connectors on the backplane for up to sixteen 2.5-inch drives.
0 1 2 3 4 5 6 7 8 9 12 10 11 13 14 15
Figure 24. Front view of the backplane for up to sixteen 2.5-inch drives
16 17
Figure 25. Rear view of the backplane for up to sixteen 2.5-inch drives
0 – 15 Slot 0–slot 15
Used to connect 2.5-inch drives.
16 10-pin power connector 0
Used to connect to the 10-pin backplane power connector on the system board or on the power distribution
board to provide power to the backplane.
17 AnyRAID adapter slot 0
Used to connect an AnyRAID adapter.
