5. Remove the PCIe slot bracket from the chassis. Store the bracket in case that you later remove the PCIe
card and need the bracket to cover the place.

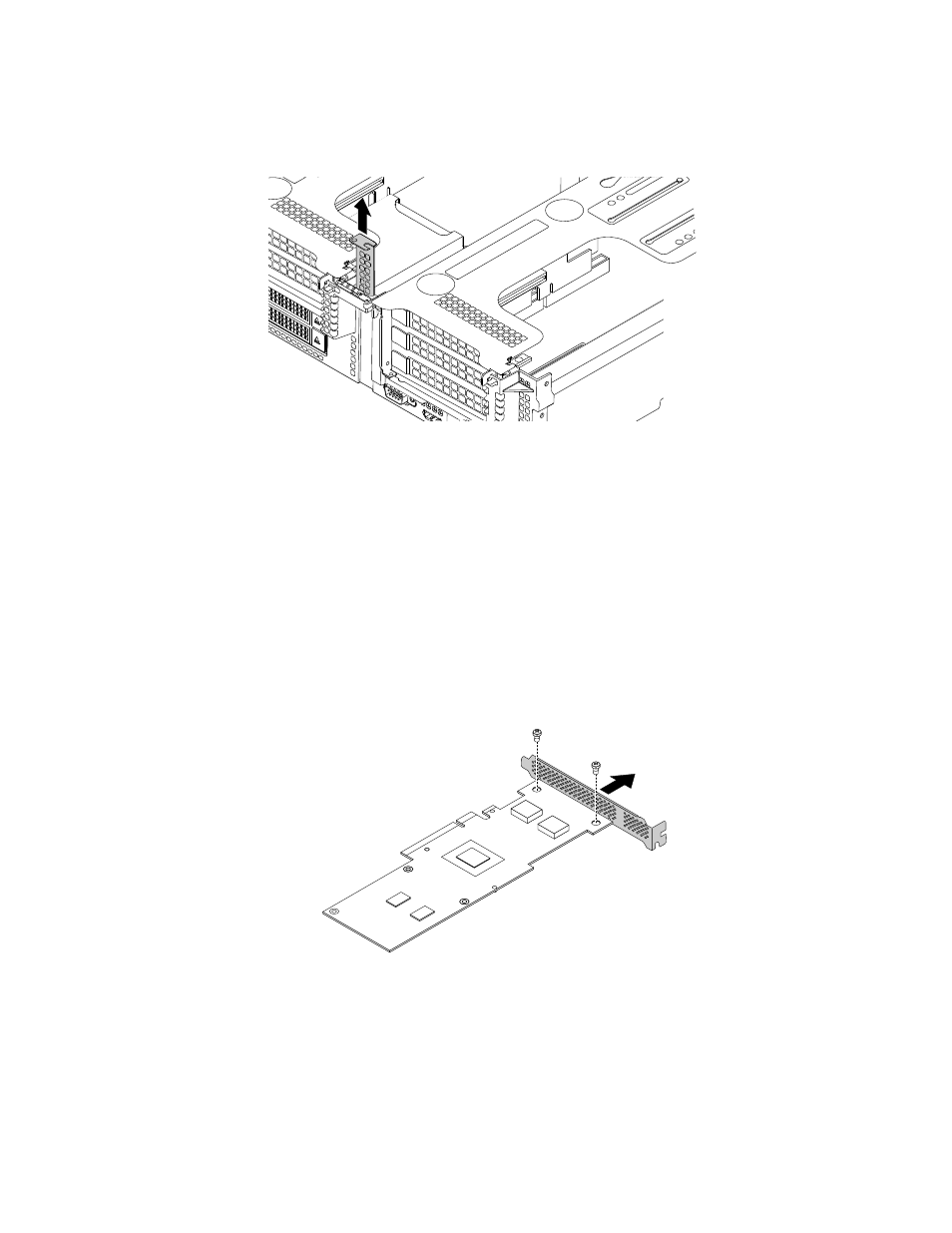

Figure 67. Removing the PCIe slot bracket
6. Touch the static-protective package that contains the PCIe card to any unpainted surface on the outside
of the server. Then, take the PCIe card out of the package.
Note: Carefully handle the PCIe card by its edges.
7. If you want to install the PCIe card into the slot for a low-profile card, you might need to replace the
full-height bracket with the low-profile bracket. To replace the bracket, do the following:
Note: Depending on the specific type, the PCIe card and its bracket might look different from the
following illustrations.
a. Carefully remove the screws that secure the PCIe card and then remove the full-height bracket
from the PCIe card.
Figure 68. Removing the full-height bracket
