• “Installing a PCIe card on the system board” on page 95
Adjusting the card-retaining bracket
Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 67.
Note: This topic applies when the PCIe card to be installed and the riser card bracket meet the following
requirements:
• The length of the PCIe card to be installed is either of the following:
– 176.4 mm (6.94 inches)
– 185 mm (7.28 inches)–220 mm (8.66 inches)
• The riser card bracket supports half-length PCIe cards by default.
To adjust the card-retaining bracket, do the following:
1. Remove the three screws that secure the card-retaining bracket. Then, move the card-retaining bracket
to the direction as shown.

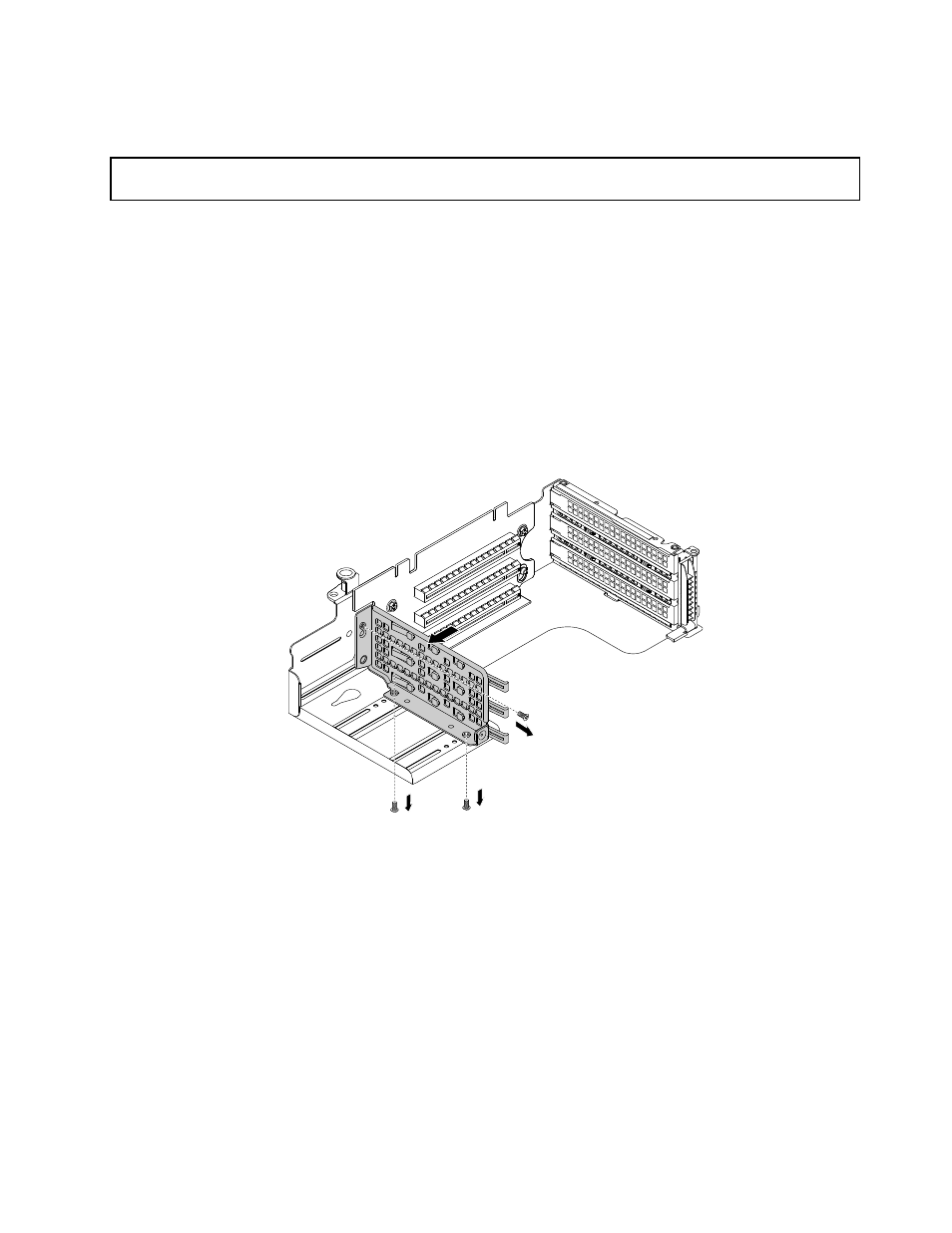

Figure 60. Removing the screws to adjust the card-retaining bracket
2. Do one of the following:
Chapter 6 . Replacing hardware 91
