Illus. No. Part No. Qty. Description
1 154004 1 Twin Speed Nut
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 802799 1 Sail Switch Box Cover and Bracket ONLY
4 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
5 122200 1 Sail Switch ONLY
6 105500 1 Sail Switch Actuator Rod
7 319202 1 Sail Switch Damper (flat)
8 154002 1 1/8” Push-On Fastener
9 802800 1 Sail Switch Box with Cover and Bracket ONLY
802801 1 Sail Switch Assembly Complete
(includes illus. nos. 1 through 9)
10 142800 1 1/2” x 18” Pipe
11 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
12 319704 1 Hi-Limit Mounting Bracket ONLY
13 151000 2 #6-32 Pal Nut
14 150001 2 #6-32 x 1/2” Round Head Machine Screw
15 130201 1 330° Hi-Limit Manual Reset Thermostat

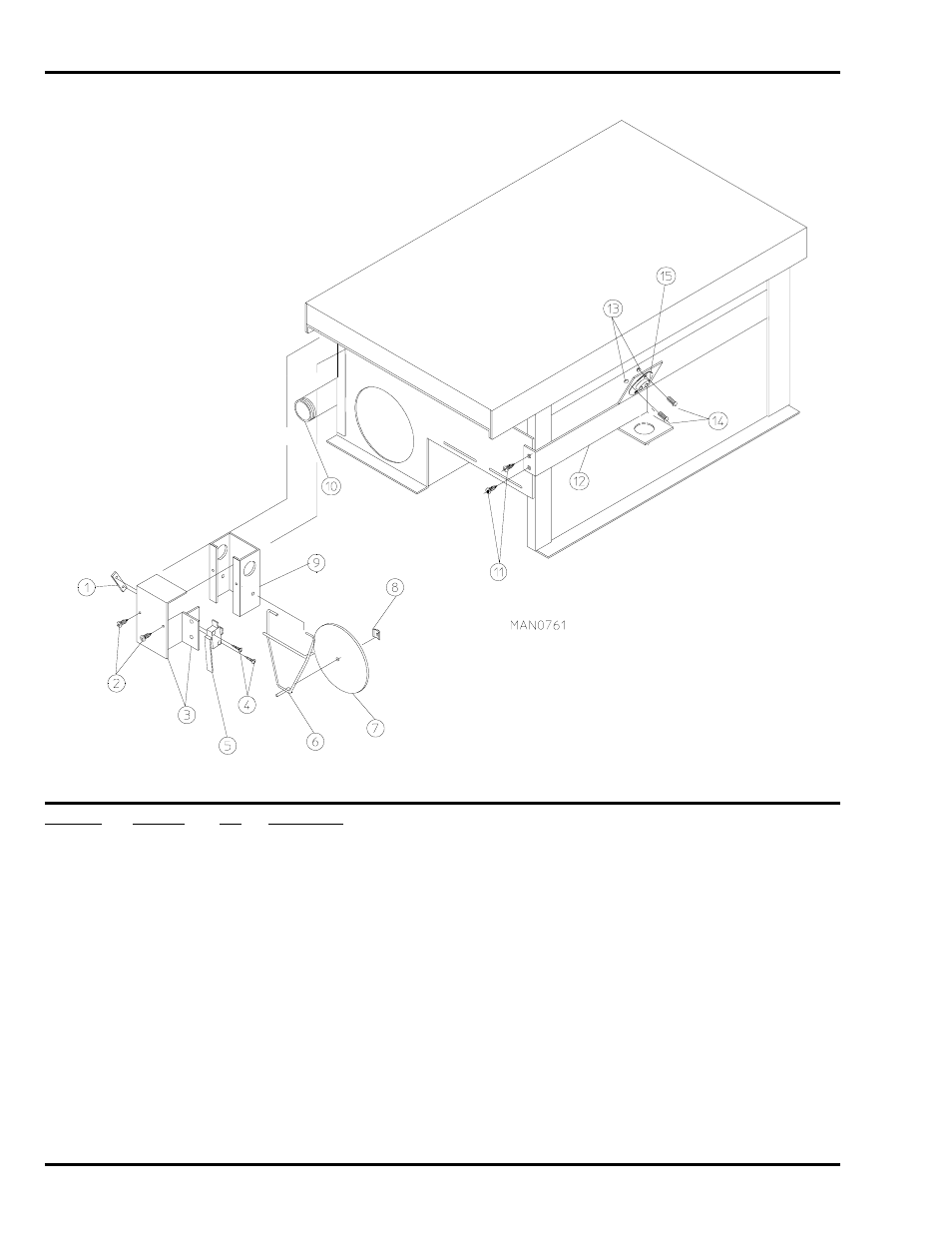

Sail Switch / Hi-Limit Assemblies
