14 American Dryer Corporation 450342 - 4

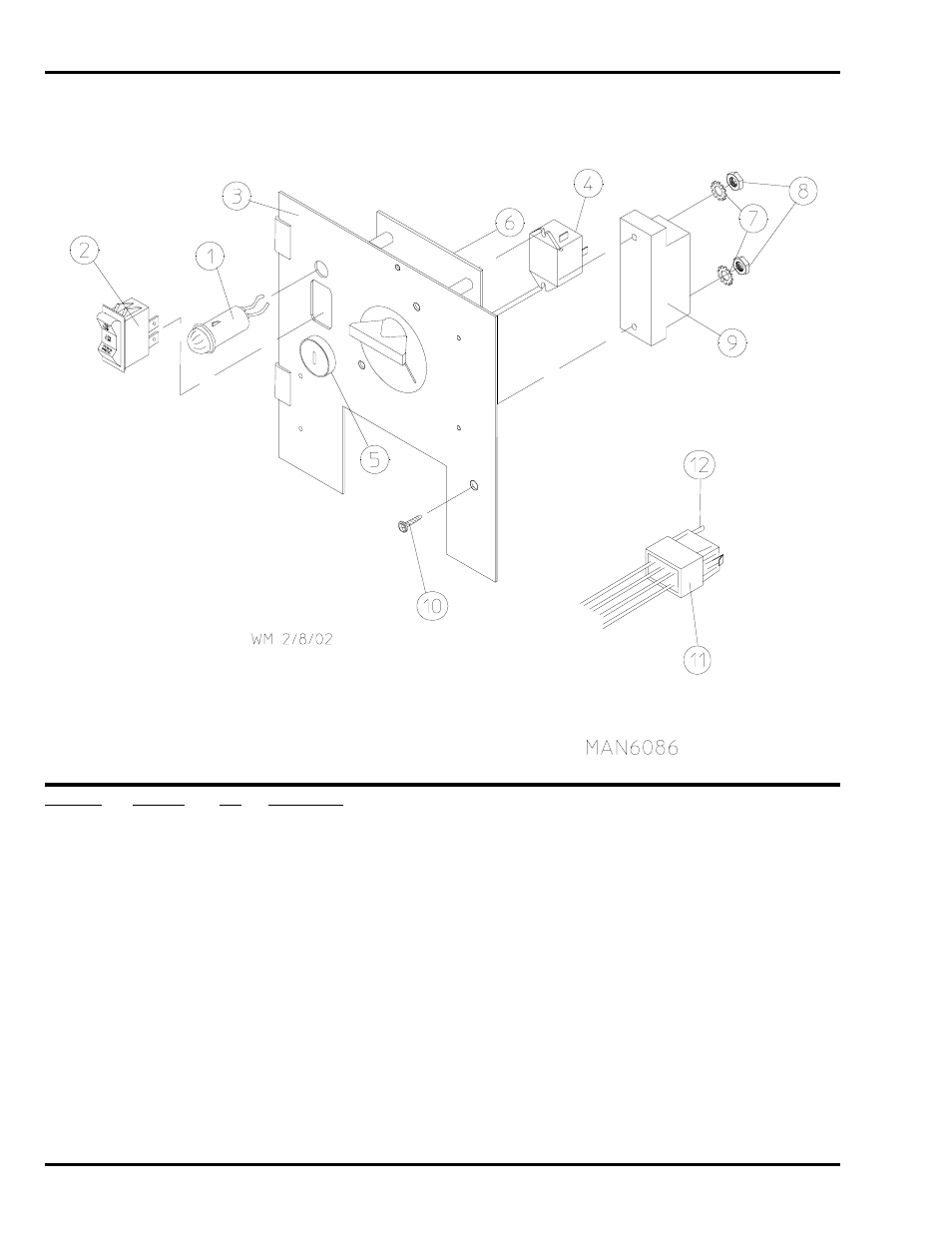

Non-Microprocessor Coin Meter Control Panel Assembly
For Models Mfd. as of January 25, 2002
Illus. No. Part No. Qty. Description
1 123005 1 Red Indicator Light – 24 VAC
2 122400 1 Rocker Heat Selector Switch
3 824172 1 Coin Meter Control Panel Assembly Less Coin Meter
(includes illus. nos. 2 through 5, 7, and 8)
824109 1 Coin Meter Control Panel ONLY
4 131932 1 24 VAC Relay
154001 2 #10-24 Speed Nut (used on P/N 131932, 24 VAC relay)
5 123225 1 Green Push-To-Start Button
6 125601 1 25¢ Coin Meter – 24 VAC (specify timing)
7 153010 2 #6 Star Washer
8 152016 2 #4-40 Hex Nut
9 120712 1 12-Position Terminal Block
10 150300 1 #10-16 x 1/2” Hex Washer TEK Screw
11 122602 1 9-Pin Connector
12 122700 7 Pin Terminal ONLY
— 122801 1 Pin Extraction Tool
NOTE: For Coin Meter Replacement Parts refer to page 52.
