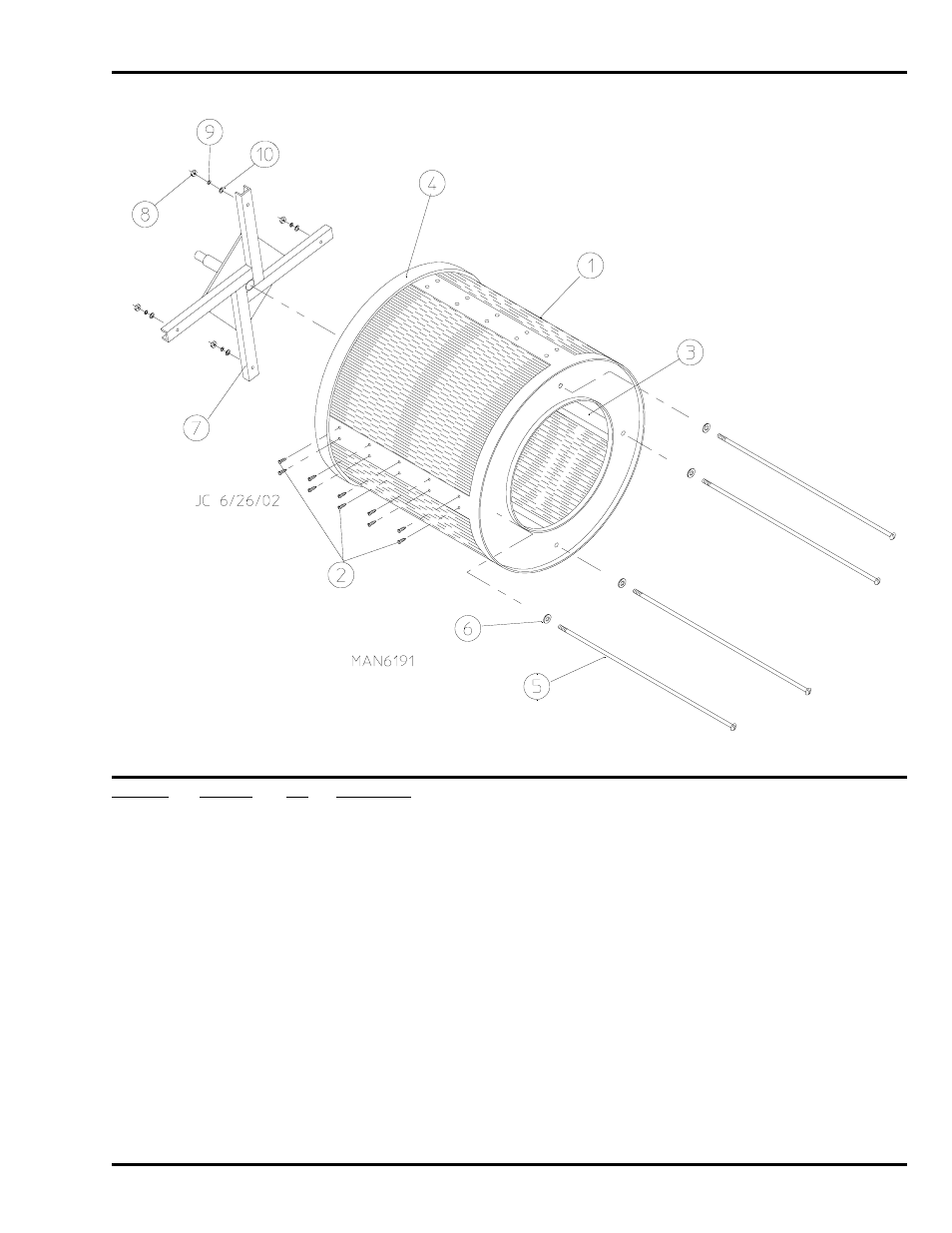

Tumbler / Support Assemblies
Illus. No. Part No. Qty. Description
1* 800702 1 Galvanized Tumbler ONLY (without felt collar)
817085 1 Galvanized Tumbler / Support Assemblies Complete
(includes illus. nos. 1 through 10)
800731 1 Stainless Steel Tumbler ONLY (without felt collar)
800752 1 Stainless Steel Tumbler / Support Assemblies Complete
(includes illus. nos. 1 through 10)
2 150413 24 #10-16 x 1/2” TORX ® Crimptite
3 301305 4 Galvanized Tumbler Rib ONLY
301420 4 Stainless Steel Tumbler Rib ONLY
4 116002 1 Felt Collar ONLY
5 100901 4 5/16-18 x 20” Tie Rod
6 153001 4 5/16” Flat Washer
7 817084 1 Tumbler Support ONLY
8 152004 4 5/16-18 Hex Nut
9 153002 4 5/16” Lock Washer
10 153001 4 5/16” Flat Washer
— 401010 1 #847 Adhesive for Felt Collar (5.0 oz. tube)
* Felt collar is not included and must be ordered separately.
