38 American Dryer Corporation 450342 - 4

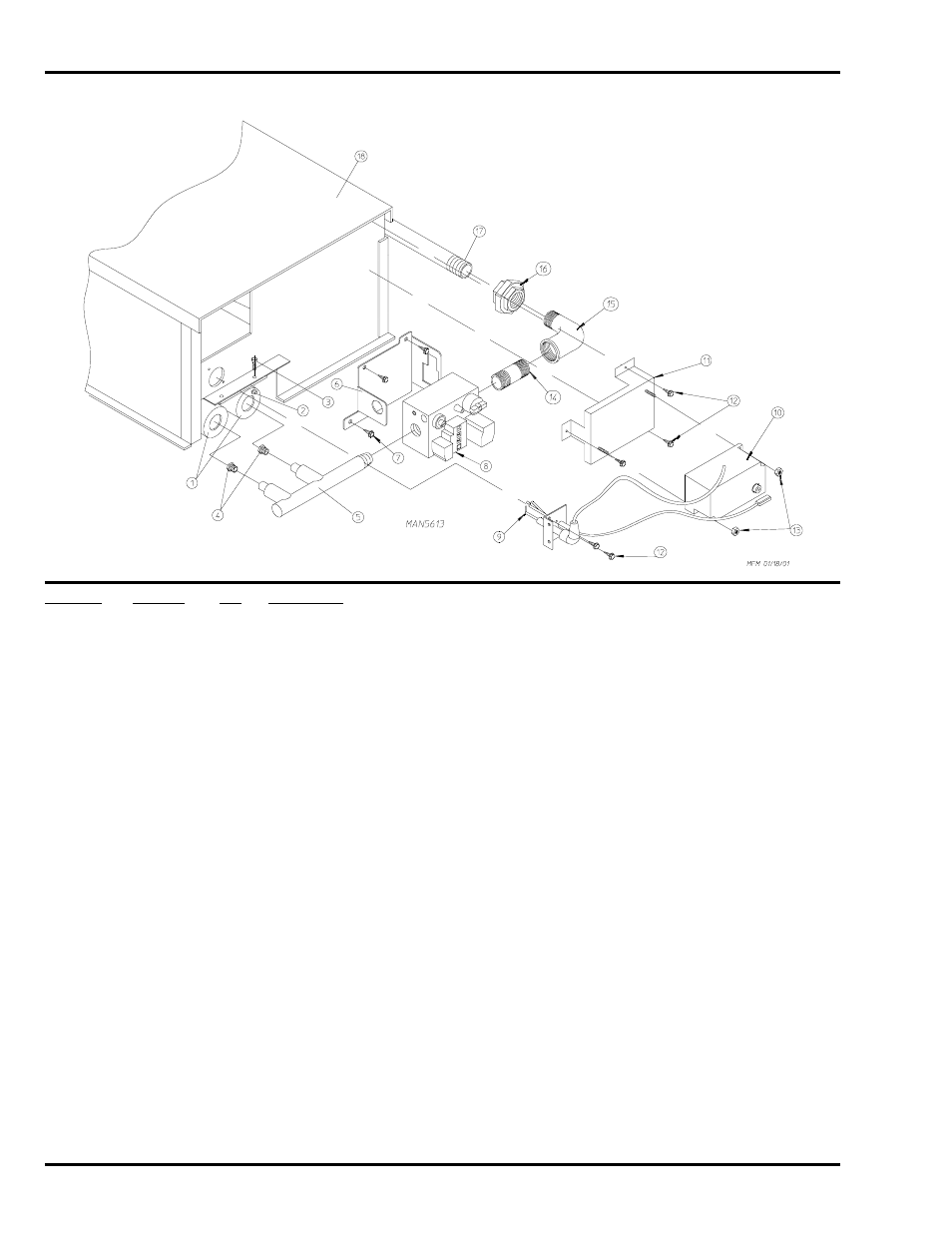

Gas Burner Assembly
For Models Mfd. as of September 29, 2000
Illus. No. Part No. Qty. Description
1 141104 2 Small Tube Burner
2 151001 2 #8-32 Pal Nut
3 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw
4 140818* 2 #31 Orifice (natural gas)
140802* 2 #50 Orifice (liquid propane gas)
5 141230 1 1/2” Direct Spark Ignition Manifold (2-port)
6 318714 1 1-Piece Gas Valve Bracket
7 150309 5 #10-16 x 1/2” Hex Head TEK Crimptite Screw
8 128927 1 Natural Gas Valve
880960 1 Liquid Propane Gas Valve
9 809307 1 Ignitor-Probe Assembly
10 883849 1 Direct Spark Ignition Module (three tries)
11 817027 1 Direct Spark Ignition Module Mounting Bracket
12 150300 9 #10-16 x 1/2” Hex Washer TEK Screw
13 152013 2 #6-32 Hex Nut
14 142707 1 1/2” x 1-1/2” Long Black Nipple
15 142506 1 1/2” Street Elbow
16 142600 1 1/2” Black Union
17 142800 1 1/2” x 18” Pipe
18 817058** 1 Direct Spark Ignition Burner Box – Natural Gas
(includes illus. nos. 1 through 3 and 5 through 18)
817059 1 Direct Spark Ignition Burner Box – Liquid Propane Gas
(includes illus. nos. 1 through 3 and 5 through 18)
817088 1 Direct Spark Ignition Burner Box ONLY
882267 1 AD-25V Liquid Propane Conversion Kit (includes orifices)
880604*** 1 Steam to Gas Interface Assembly
* Consult factory for elevations over 2,000 feet.
** Burner orifices are not included and must be ordered separately.
***Needed when converting steam heat to gas heat.
