42
Chapter 7. Replacing hardware
Replacing the memory module
To replace the memory module
1. Remove the cover. Refer to “Removing the cover”.
2. Remove the front bezel. Refer to “Replacing the front bezel”.

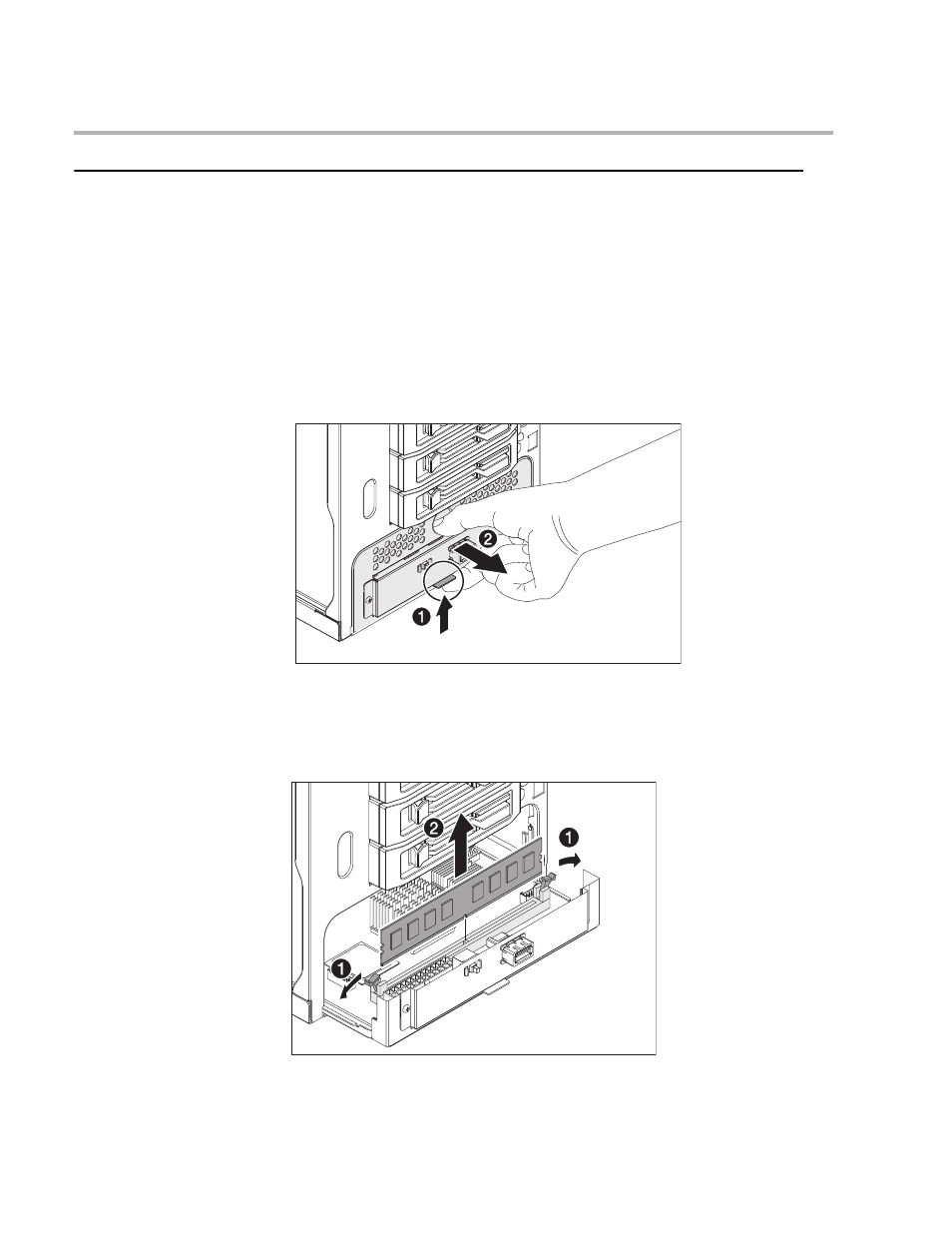

3. Slide the system board tray out of the home center chassis.
(1) Insert your thumb into the thumb hole, then press in the tab to release
the system board tray.
(2) Pull the tray out until you can gain access to the memory connector.
4. Remove the memory module.
(1) Open the retaining clips on both sides of the memory connector to
release the memory module.
(2) Lift the memory module from the connector.
