Lenovo D400 Desktop IdeaCentre User Manual
Page 41
36
Chapter 7. Replacing hardware

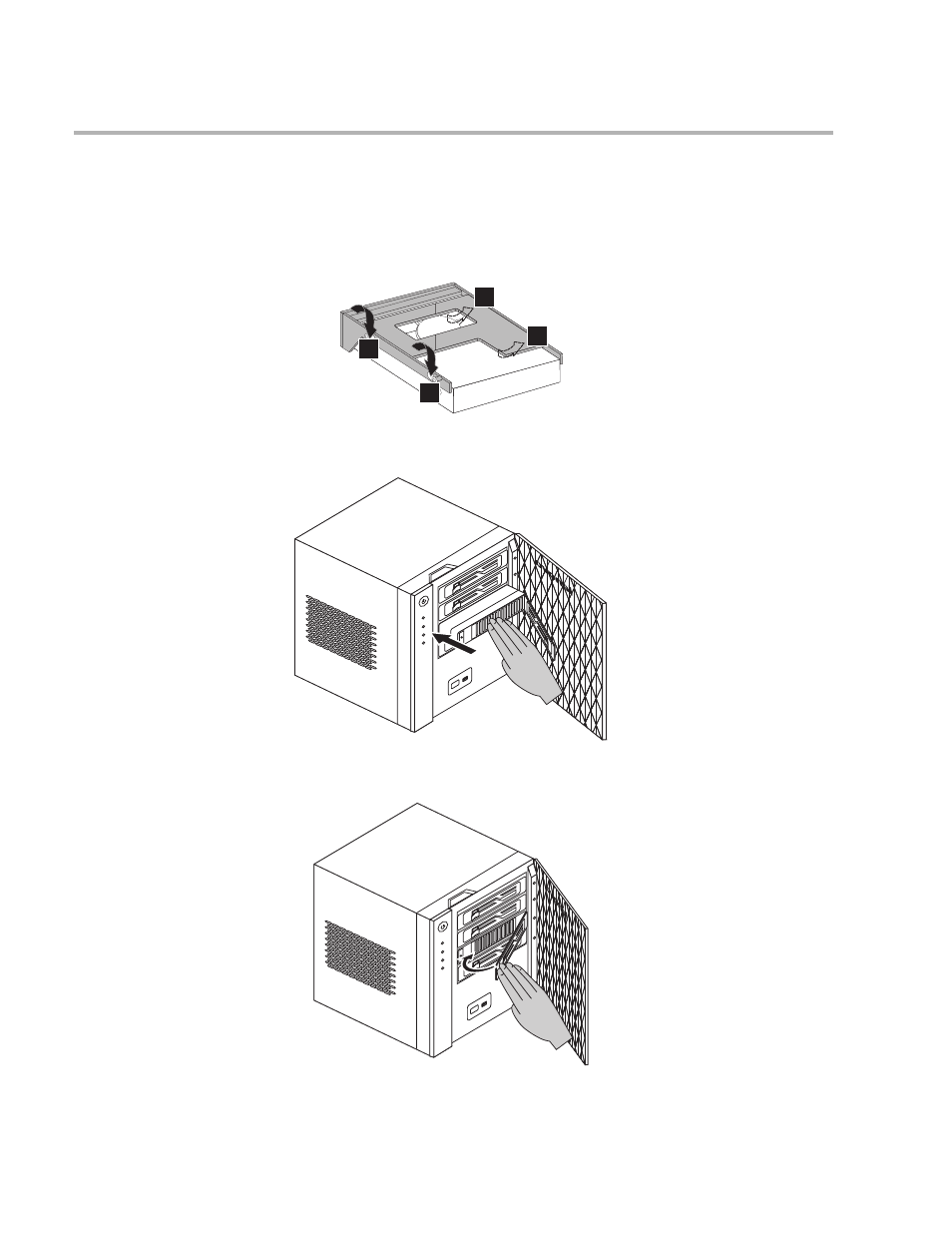

5. Install the new HDD into the carrier.
(1) Insert the new drive into the right side of the carrier, aligning the pins
with the HDD’s mounting holes.
(2) Slightly bend the left side rail and insert the pins into the HDD’s
mounting holes.
(3) With the lever still extended, slide the carrier all the way into the drive
bay. Do not push the lever until it begins to close by itself.
(4) Use the lever to push the carrier until it docks into place, then close the
lever.
1
1
2
2
