Replacing the system fan

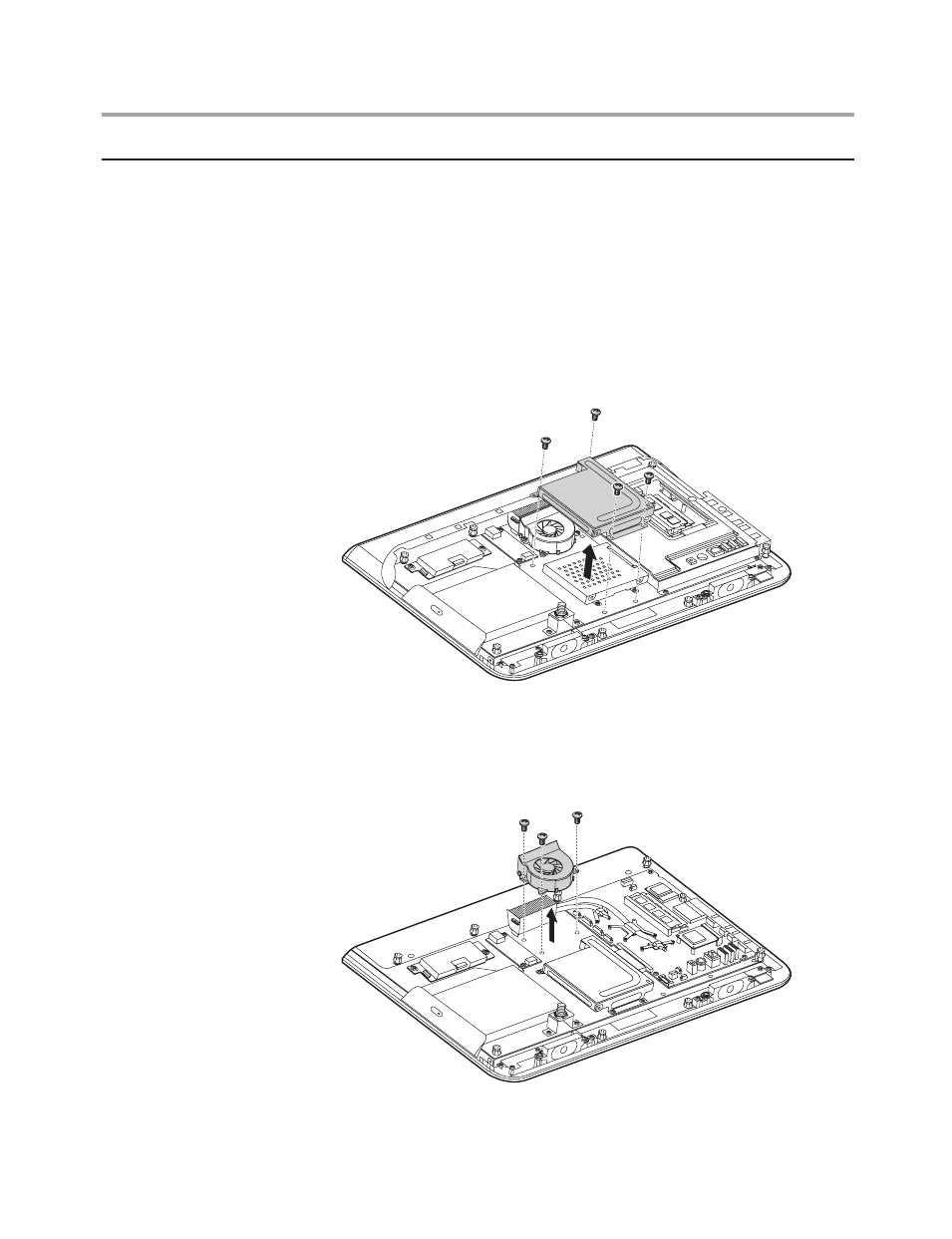

To replace the system fan
1. Remove the computer stand. Refer to “Removing the computer stand”.
2. Remove the computer cover. Refer to “Removing the computer cover”.
3. Remove the motherboard cover. Refer to “Removing the motherboard
cover”.
4. Remove the 4 screws that secure the stand bracket to the chassis, then
lift it up.
5. Disconnect the system fan power cable from the connector on the
motherboard.
6. Remove the 3 screws that secure the system fan to the chassis.
7. Lift up the system fan to remove it.
