Replacing the LED board
To replace the LED board
1. Remove the computer stand. Refer to “Removing the computer stand”.
2. Remove the computer cover. Refer to “Removing the computer cover”.
3. Remove the 2 screws that secure the LED board to the chassis.
4. Disconnect the cable from the LED board.

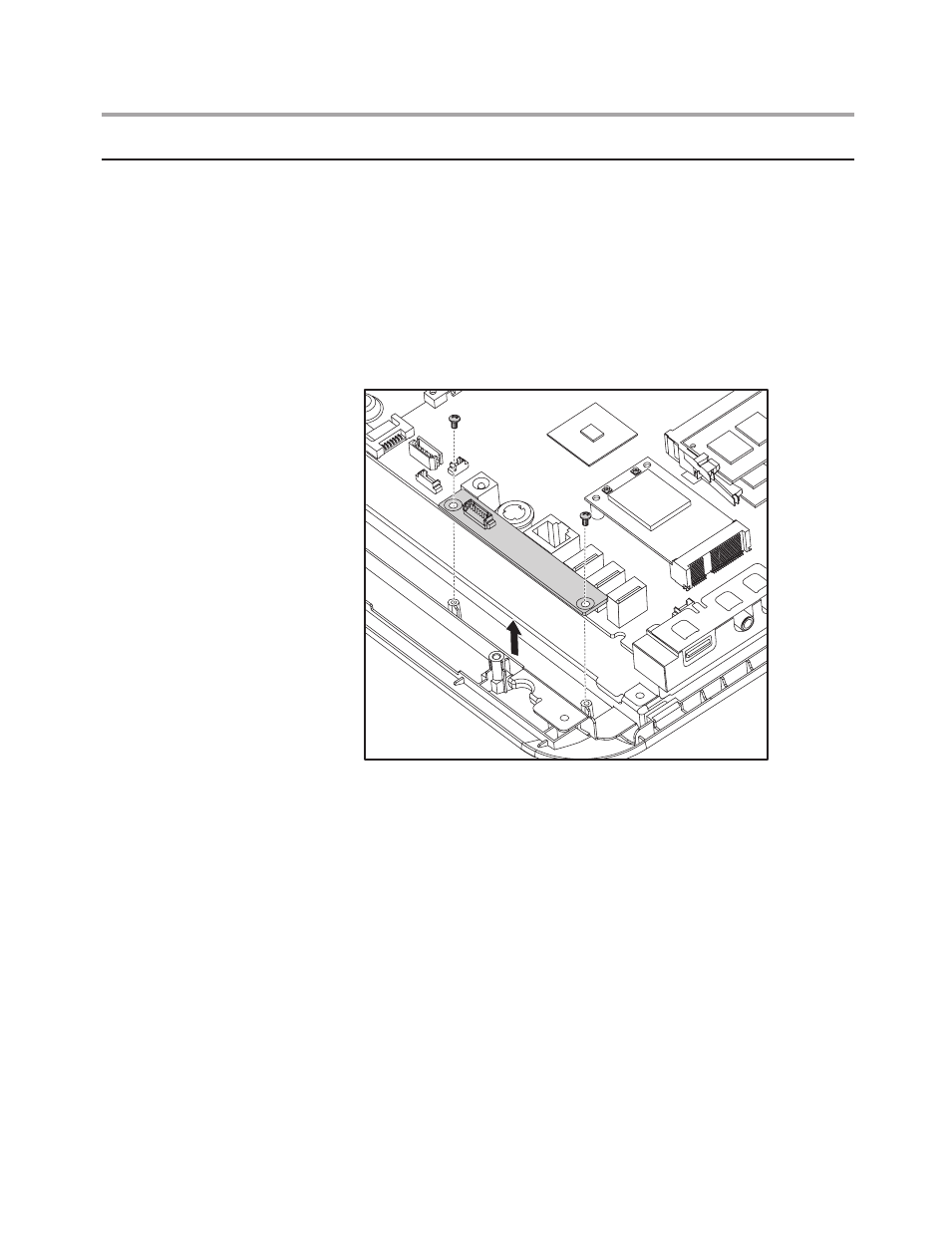

5. Lift up the LED board to remove it.
6. Connect the cable to the new LED board.
7. Align then screw in the new LED board.
8. Reattach the computer cover and stand.
